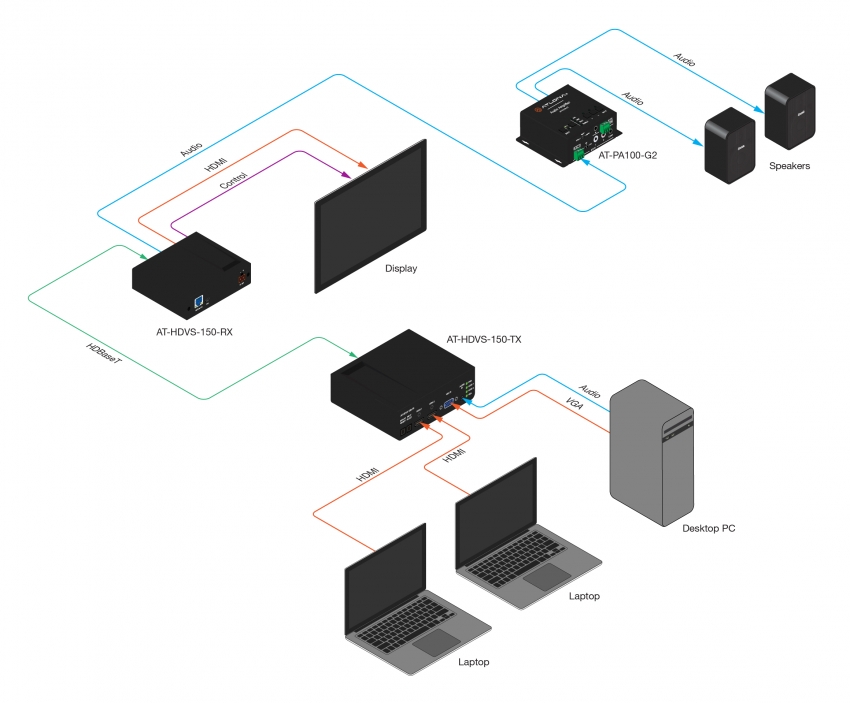

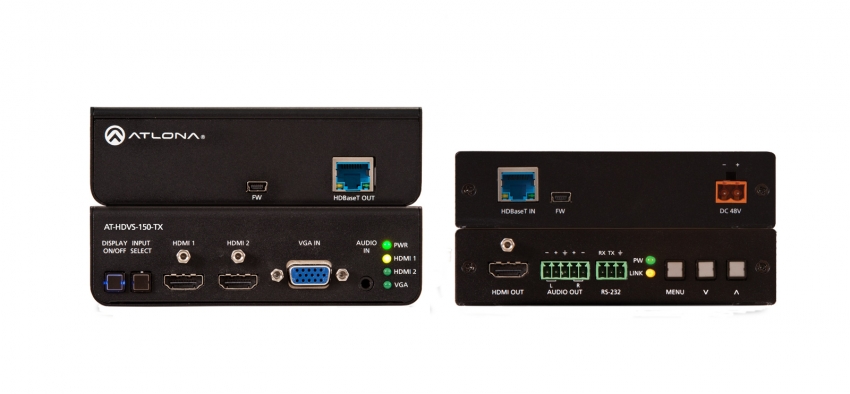

The Atlona AT-HDVS-150-KIT is an HDBaseT extender kit that includes the AT-HDVS-150-TX 3×1 switcher and transmitter, and the AT-HDVS-150-RX receiver and HD scaler. The HDVS-150-TX features two HDMI inputs and a VGA input with audio. Video signals up to 1080p, plus embedded audio can be extended up to 230 feet (70 meters). The HDVS-150-KIT serves as a compact, automated AV system with the convenience of automatic input selection, display control, and HD scaling. The HDVS-150-RX remotely powers the HDVS-150-TX through Power over Ethernet (PoE).

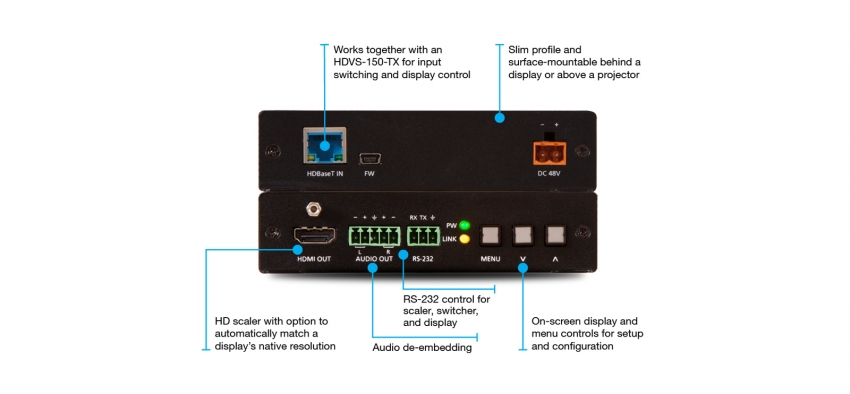

The HDVS-150-RX offers advanced scaling capabilities including image adjustment capability, and a feature for automatically matching incoming signals to the display’s native resolution. Integrated scaling and video processing help optimize image quality and switching performance. This receiver also features audio de-embedding and third-party RS-232 control of the scaler, switcher, and display.
Compact Switcher and Extender
The HDVS-150-KIT combines the benefits of auto-switching, integrated display control, and HD scaling, plus the advantages of HDBaseT signal extension. It incorporates many popular integration convenience features while delivering excellent value for classrooms, huddle rooms, and meeting spaces.
Surface mounting brackets are provided for easy under-table, furniture, or on-wall installation of the HDVS-150-TX. The HDVS-150-RX can also be surface-mounted for easy installation behind a display or above a projector.
Automatic Display Control
The HDVS-150-KIT provides control to a display through RS-232, without the need for a separate control system. This simplifies system design and integration while reducing costs. With automatic display control, the HDVS-150-KIT can trigger a display to power on automatically whenever a laptop or other device is connected. At the end of the presentation, when the presenter disconnects the laptop, the HDVS-150-KIT forces the display to power off. Ease of presenter interaction with the system, and the savings incurred by automatic display shutdown provide a significant return on investment. The HDVS-150-KIT display control capability can also be triggered by an external control system.

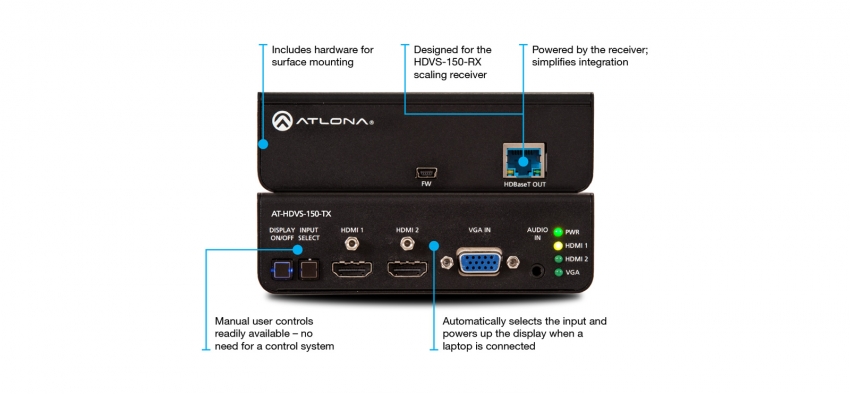

A power button on the front panel of the HDVS-150-TX can be used for manual on/off control of the display.
Auto-Switching
The HDVS-150-KIT automatically selects an input source based on detection of the 5 volt hot plug detect (HPD) signal.
HDBaseT Extenderkit Multiformat (70m)
Vårt mest prisvärda extenderkit med inbyggd scaler
Egenskaper
| Maxlängd 1080P: | 70 M |
| Ingångar: | 1 x 3.5mm , 1 x VGA , 2 x HDMI |
| Scaler: | 1080P |
| Automatic Display Control: | Ja |
| Autoväxling: | +5v |
| Audio De-Embedding: | Ja |
| Ethernet: | Nej |
| PoE: | Ja |
| HDCP: | 2.2 |
| AMS: | Ja |
| Strömförsörjning: | Mottagare |
| Enhet: | Kit |
| Format: | Box |
| Mått: | (RX) 3 x 12.2 x 12.5 cm , (TX) 3.8 x 12.7 x10.2 cm |
| Vikt: | (RX) 0.31 Kg , (TX) 0.29 Kg |
