HDBaseT-sändare (100m)

HDBaseT-sändare för presetationsväxlar- och matrixer. Strömsätts via PoE

Egenskaper

Maxlängd 1080P:	100 M
Maxlängd 4K/UHD:	100 M
HDR:	4K/24 4:2:0
Kontroll:	RS-232
Ethernet:	Ja
PoE:	Ja
HDCP:	2.2
Strömförsörjning:	Mottagare
Enhet:	Sändare
Mått:	2.5 x 10.9 x 12.7 cm
Vikt:	0.39 Kg

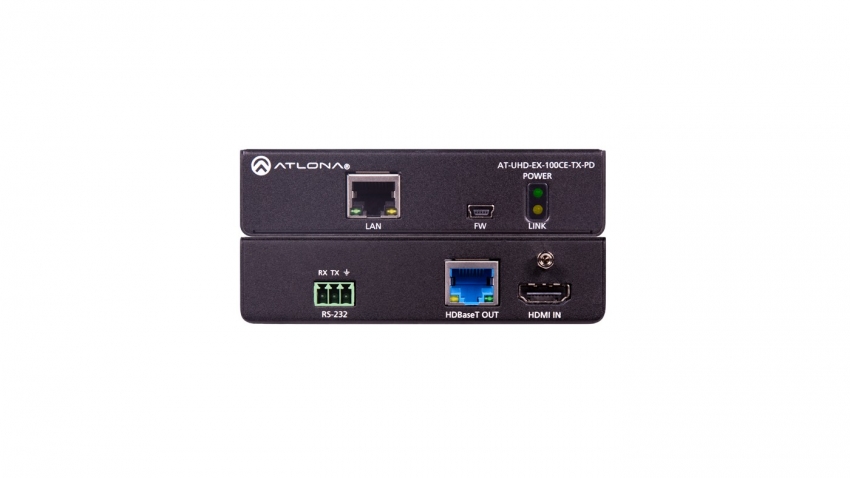

The Atlona AT-UHD-EX-100CE-TX-PD is an HDBaseT™ transmitter for HDMI transmission up to 100 meters over category cable with Ethernet pass-through and RS-232 control. It transmits video signals up to 4K/UHD @ 60 Hz with 4:2:0 chroma subsampling, plus embedded multi-channel audio. The AT-UHD-EX-100CE-TX-PD is HDCP 2.2 compliant and supports EDID communication. The transmitter features a quarter rack width metal enclosure for easy rack mounting with rear panel I/O ports for uncluttered wire management. This device is externally powered via Power over Ethernet, and is ideal for use with Atlona switchers with PoE-equipped HDBaseT inputs, including the AT-UHD-CLSO-612ED, AT-UHD-CLSO-840, and AT-UHD-SW-5000ED.

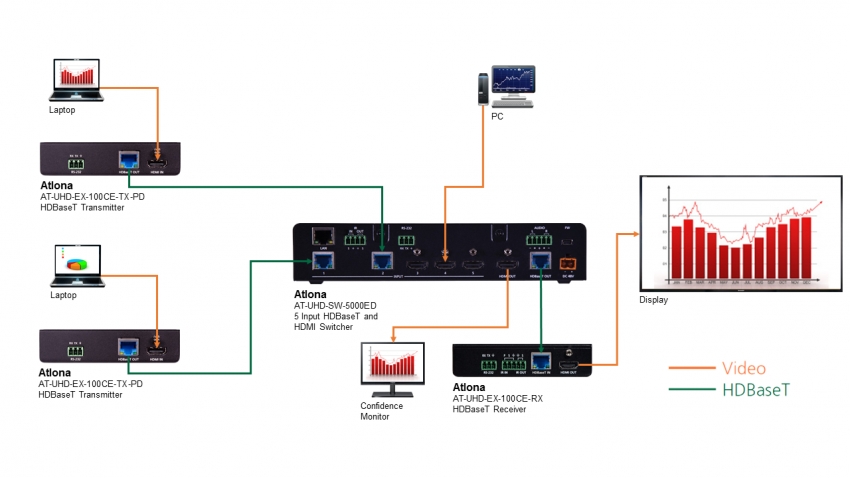

The AT-UHD-EX-100CE-TX-PD transmitter simplifies system design when powered by an Atlona switcher with HDBaseT inputs, reducing cost and complexity by eliminating the need for a power supply. It can also be paired with the AT-UHD-EX-100CE-RX-PSE receiver and AT-HDVS-200-RX scaling receiver, both delivering PoE. Installer-friendly features include a rack-mountable form factor that allows four transmitters to share a single 1U rack tray, and a front mounted USB port for easy firmware updates.

This transmitter is ideal for use in applications where:

- HDBaseT transmitters need to be installed in a location where local AC power may not be available, such as a lectern or conference room table

- 4K/UHD signal extension and HDCP 2.2 compliance are necessary in the system design
