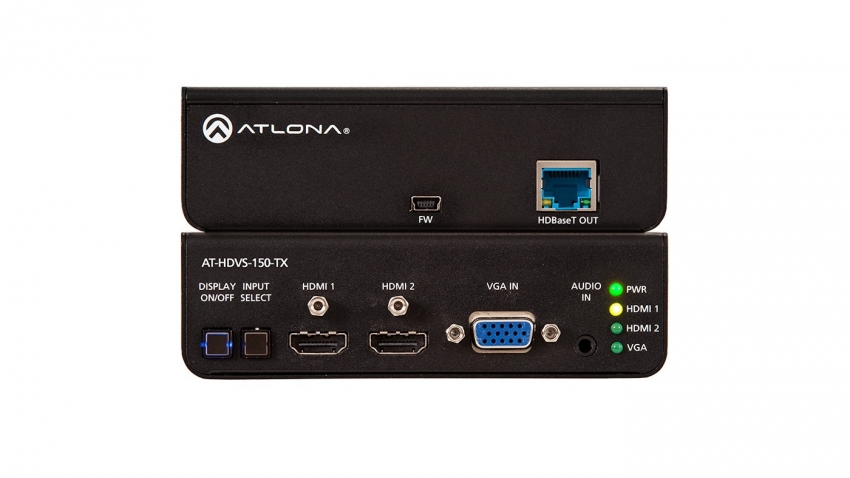

The AT-HDVS-150-TX is a 3×1 Switcher for HDMI and VGA Inputs with HDBaseT Output. It features two HDMI inputs plus a VGA input with 3.5mm audio connector. The AT-HDVS-150-TX combines the benefits of a switcher with built-in auto-switching and the advantages of long-distance HDBaseT signal extension over a single cable. HDMI signals up to 4K/UHD @ 60Hz with embedded audio, VGA input signals up to 1920×1200 video, and control signals can be extended up to 70 meters. The switcher enables auto display on/off, auto-switching, along with other features. The switcher receives power from the AT-HDVS-150-RX receiver using Power over Ethernet. The AT-HDVS-150-TX is ideal for long distance transmission and display control in corporate or educational settings using analog and digital sources.
The AT-HDVS-150-TX, when used in combination with the AT-HDVS-150-RX receiver, allows automatic display control using RS-232 signals. When integrated with a display, the AT-HDVS-150-RX forces the display to power on automatically when a laptop is connected to the AT-HDVS-150-TX. At the end of the presentation, when the presenter disconnects the laptop from the transmitter, the AT-HDVS-150-RX forces the display to power off. Ease of presenter interaction with the system and the savings incurred by auto-display shutdown provide a significant return on investment.
