Smart dimmer (6 Kanaler) FN485

Smart dimmer (6 Kanaler) FN485

Styrbar (FN485) dimmer fram- & bakkant - 6 kanaler

Varumärke:P5
Artnr: P5-FN485-6X2AD

Egenskaper

Smart dimmer (6 Kanaler) FN485

Produkt:
Företag:
Namn:
Tel.
E-post:
Ditt meddelande:
Jag vill ha en offert Jag vill ha en demo

Produktinformation

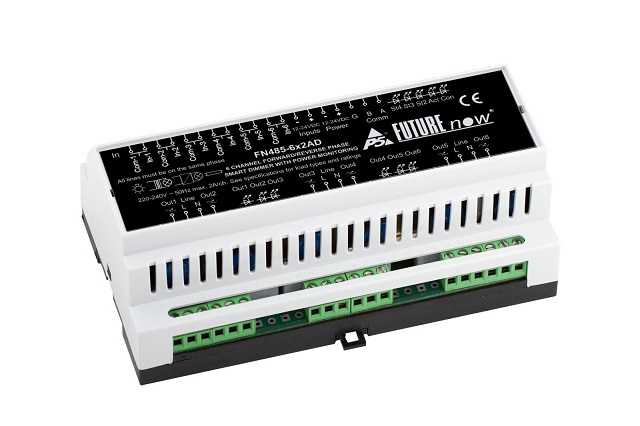

The FN485-6x2AD is a 6 Channel FN485 Bus Smart Dimmer that can work in both leading edge and trailing edge modes. All types of load can be dimmed or switched with it, be it resistive, capacitive or inductive. It also measures the power consumption of the outputs.



Main Features

Robust Operation

  • All-in-one dimmer
  • 6 outputs for switching and dimming 6 lighting circuits
  • 6 galvanically isolated digital inputs for contact sensors or manual operation
  • Overheat protection (both from software and hardware)



Ultimate Flexibility

  • Switching any load types
  • Both trailing and leading edge dimming (dimming of resistive, capacitive and inductive loads)
  • Automatic load type detection
  • Switching (On/Off) any loads
  • Possibility to combine two outputs for more wattage
  • Standard DIN Rail mount
  • Voltage, frequency, power consumption and temperature metering
  • 100 dim levels (800 level hardware resolution)
  • Preset dim level – outputs will go to that level when turned on
  • Dim level memory (if preset dim level is set to zero) - modules recall their last dim level when next turned on
  • Adjustable minimum and maximum dim levels
  • Adjustable ramp rates



Enhanced Connectivity

  • Easy-to-connect two-wire daisy-chain bus
  • Available communication protocol



Industry-Wide Interoperability

  • Easy integration with home controllers
  • Interoperability with any momentary contact switches available on the market
