Konferenssystem - ATUC-50DUA

Konferenssystem - ATUC-50DUA

ATUC diskussionsenhet, volym, högtalare, AGC, Mic gain, Mic EQ

Varumärke:Audio-Technica
Artnr: ATUC-50DUA

Egenskaper

Konferenssystem - ATUC-50DUA

Produkt:
Företag:
Namn:
Tel.
E-post:
Ditt meddelande:
Jag vill ha en offert Jag vill ha en demo

Produktinformation

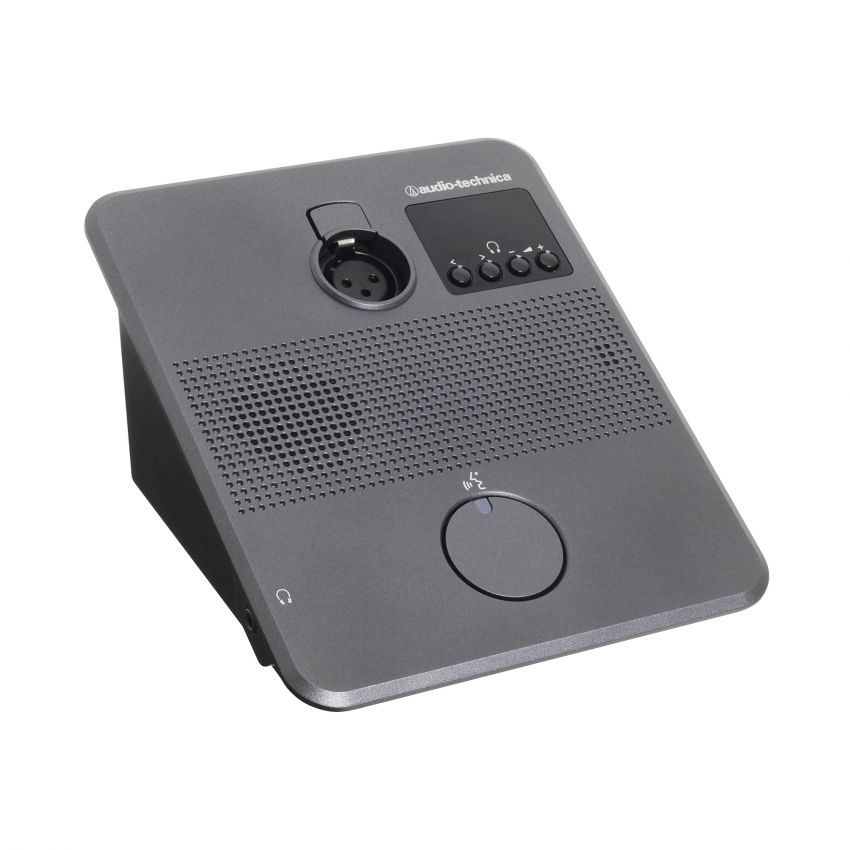

Discussion Unit

ATUC-50DUa Discussion Unit with high-quality audio. Individual Automated Gain Control (AGC), Mic gain and Mic EQ, Compatibility with standard XLR3 pin gooseneck and High quality speaker for enhanced intelligibility.

ATUC-50DUa

discussion unit with high quality audio

Whatever your conferencing or discussion needs, the ATUC-50 is designed to offer reliable, clear and intelligible communication to significantly increase meeting efficiency and effectiveness.Voice is the quickest and most efficient tool for exchanging ideas - whether in meeting rooms, councils, classrooms or through videoconference, speech is the most direct way of communication and understanding.Using standard Cat 5 (and above) cabling, the ATUC-50 system connects easily through a daisy chain or ring topology.

    • Connect up to 100  discussion units to one control unit
    • Cascade up to 300 discussion units using multiple control units
    • High quality speaker for enhanced intelligibility
    • Clear LED display for volume control and channel selection
    • Individual Automated Gain Control (AGC), Mic gain and Mic EQ
    • Multicolour LED bar on the DU (rear side)
    • Multicolour LED on the Speak button
    • Compatibility with standard XLR3 pin gooseneck
    • Double gooseneck microphone
    • Paintable front plate
    • Table top or recessed mounting
    • 5 years warranty


Specifications

Discussion Unit
Dynamic Range107dB A-Weighted
Frequency response+1.0, -2.0dB 20Hz - 20kHz, refer to +4dBu output @1kHz
Sampling Frequency24bit /48kHz
Signal-to-Noise Ratio87dB A-Weighted
ConnectionsInputs: Mic x 1, Outputs: Headphones x 1, CHAIN: DU / CU terminals
Headroom20dB
Equivalent Input NoiseLess than -121dBu Rs=150ohm
Total Harmonic DistortionLess than 0.07% @1kHz unity
Phantom PowerDC +24V
Power SupplyDC +48V
Power Consumption2.2W
Operating Temperature Range0-40℃
Operating Humidity25-85%
Dimensions135mm x 148.3mm x 84.2mm
Weight570g
Accessories IncludedQuick Setup Guide, Warranty Sheet
