OPTIMIZE your video collaboration and webcast with two cameras.
Works with Teams®, Zoom®, Webex®, GoToMeeting®, Hangouts®, etc.
Reduces hardware complexity and connections to your computer.
Easy, No Drivers, No Setup!
Versatile!
Compatible with all Apps!
Mixer feature: Hardware mixer into a single USB 3.0 interface
Control interface: LAN, RS-232, USB
Local and remote keypad
USB 2.0 cameras and HDMI capture
HDMI output for preview
Line level stereo audio support
PTZ control of USB cameras over USB 3.0 interface
Digital Fluid technology: Internal frame buffers maximize frame rate with any host
Hardware-based color space and sampling conversion
Compatible with Windows, Mac OSX and Linux
The device can be controlled by an application on the host side using our USB HID, RS-232 or LAN interfaces. You can also use the keypad on top of the device to control it manually. You can use the Mixer feature of the SHARE 2U to embed your two video sources into one single stream. This feature can be an important asset for you if your application only supports one video interface, like Skype®, Zoom®, Webex®, GoToMeeting® and all video conferencing applications.

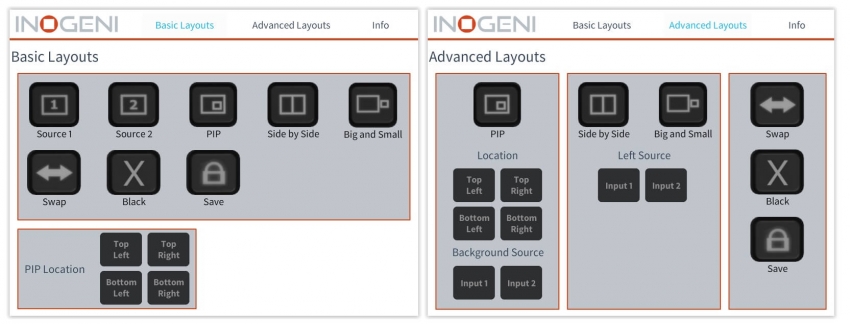

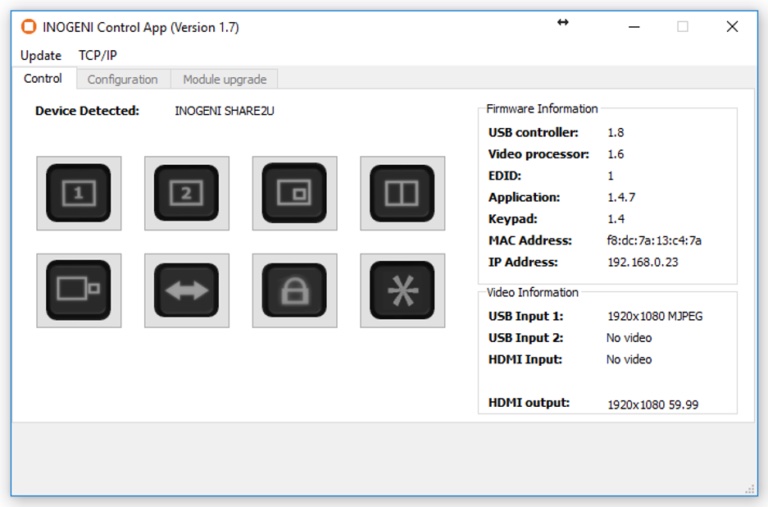

Control App
The device has its own application in order to control the Mixer configuration using the USB HID or the LAN interfaces. You can also monitor the firmware versions installed on the device and the status of the inputs. You can update your device to the latest firmware using the Update menu. The C++ source code of this application is available on demand.

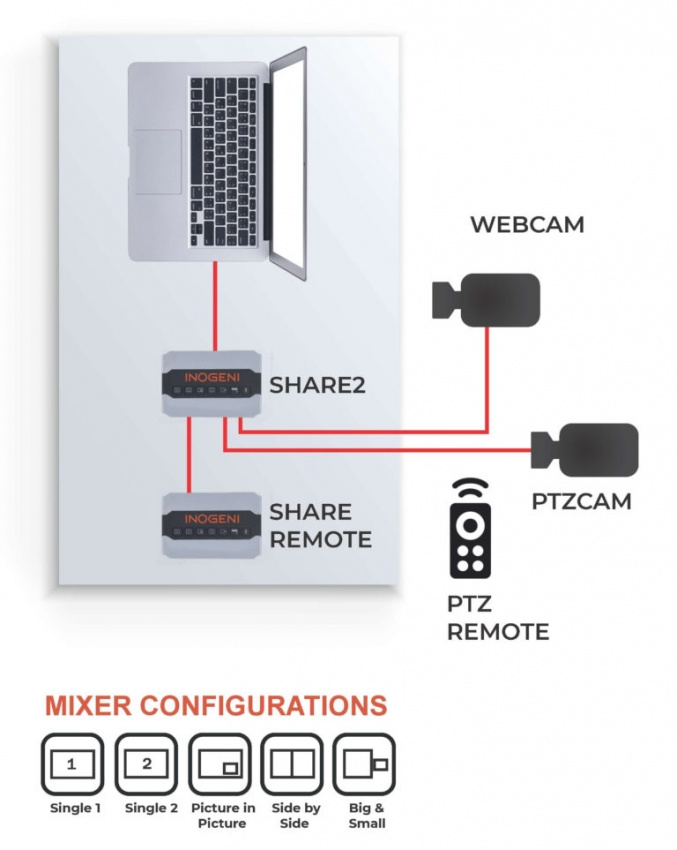

SHARE Remote
When the SHARE2 or SHARE2U is positioned in an inconvenient area of the room because of your computer and video source cables, you can connect the SHARE2U wired remote and change images from a better place in the room.

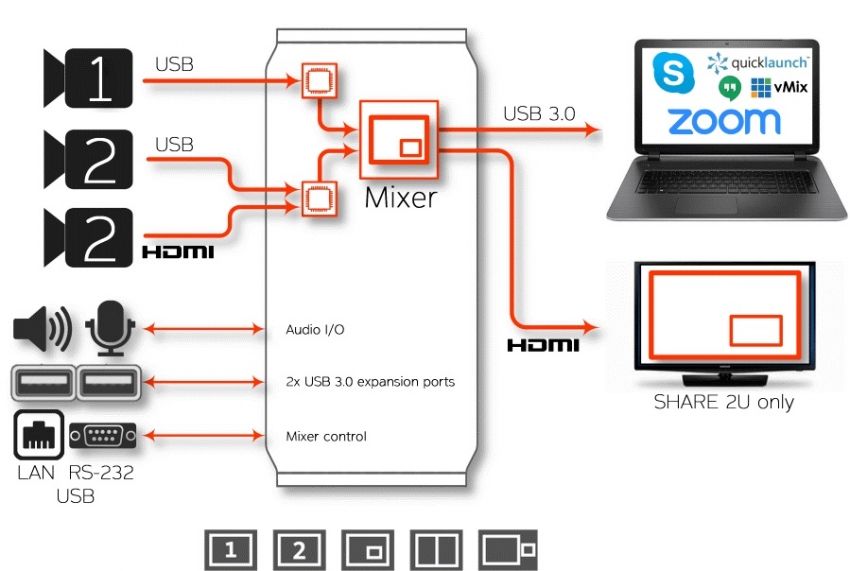

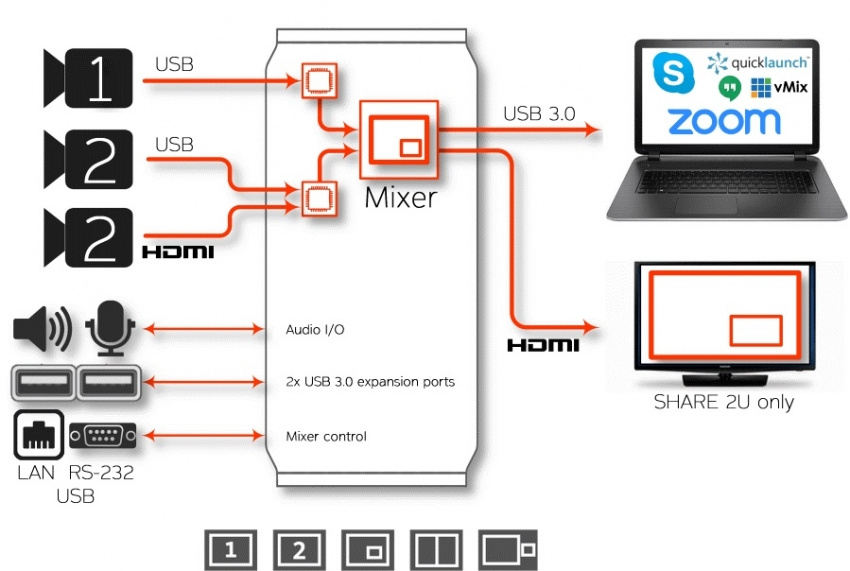

How it works
The SHARE2U Dual USB Camera to USB 3.0 Pro AV camera mixer can be controlled by an application on the host side using our USB HID, RS-232 or LAN interfaces. You can also use the keypad on the top of the device to control it manually.
You can use the camera mixer feature of the SHARE2U to embed your two video sources into one single stream. This feature can be an important asset for you if your application only supports one video interface, like Teams®, Zoom®, Webex®, GoToMeeting® and all video conferencing applications.
With the push of a button, you can easily switch up to 14 mix setup videos.
Main feature
2:1 Camera mixer
2:1 Camera mixer
(1x USB and 1x USB or HDMI cameras mixer into a single USB 3.0 interface)
Simultaneous capture and mix of 2x USB 2.0 signals + Audio into one 1080p60 USB 3.0 signal.
14 mix setup videos:
Picture-in-picutre, side-by-side

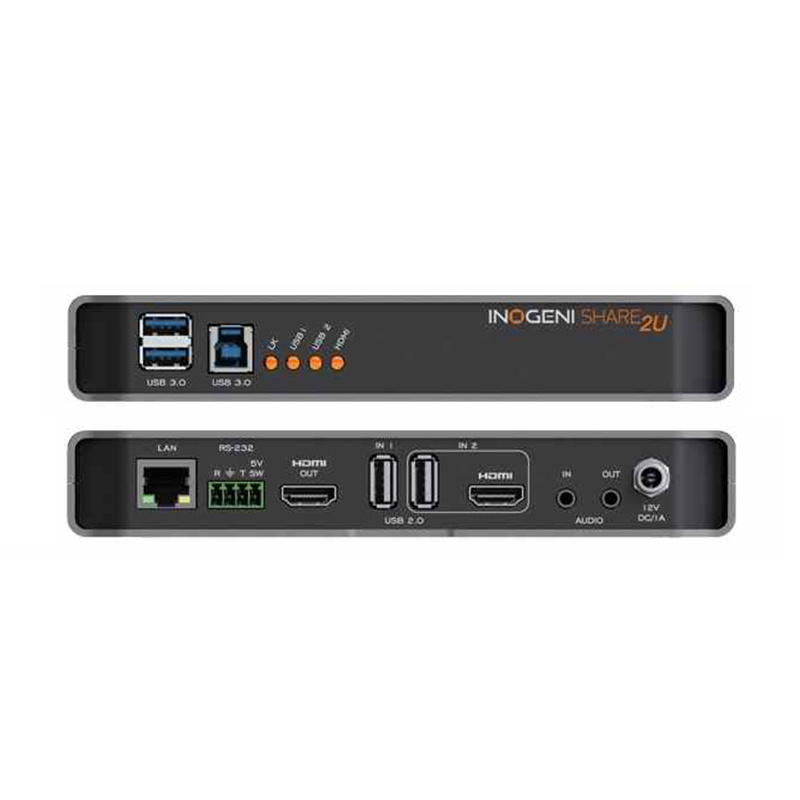

Video input
#1 Connector & video resolutions
1x USB camera 2.0
MJPEG or H264 (*)
Depends on the camera specifications
#2 Connector & video resolutions
1x USB camera 2.0
MJPEG or H264 (*)
Depends on the camera specifications
– OR –
1x HDMI
1080p60, 1080p30, 720p60 and 480p60
(1080p60 supported for S/N greater than SU2111xxx and SUM111xxx)
1080p notes for MJPEG and H264
Color space
HDMI : RGB, YCbCr 4:4:4 and 4:2:2
Video output
HDMI
1x HDMI up to 1080p60
(One mixed video stream)
USB
1x USB 3.0 uncompressed up to 1080p60
(One mixed video stream)
USB - Color Space ou CODEC
USB 3.0: YCbCr (YUY2) 4:2:2 8-bit.
USB 2.0: MJPEG
USB - Video scaler
Automatic hardware-based
USB - Color space conversion
Automatic hardware-based
USB - Sampling conversion
Automatic hardware-based
USB - Frame rate conversion
Automatic hardware-based
Audio
Analog audio connections
Unbalanced analog stereo, line level, 3.5 mm jack
Analog audio I/O
2-channel LPCM 48kHz audio from line input
Digital audio I/O
Embedded in HDMI or USB
Audio routing
See following link for SHARE2 and SHARE2U audio routing
Control
Control options
Integrated keypad, LAN, USB-HID, INOGENI REMOTE, RS-232
IP interface
10 Mbps
Static address configuration through our Control App
DHCP not supported
USB Port
USB expansion port
Two (2) extra USB 3.0 ports for expansion purposes. The devices connected will appear to the host.
Compatibility
Barco ClickShare Conference Compatible
Compatible with Barco ClickShare Conference (CX-20, CX-30 & CX-50)
Operating systems
NO driver installation necessary!
Windows 7 and above (32/64-bit)
macOS 10.10 and above
Linux (kernel v2.6.38)
Minimum host requirements
USB 2.0 port – We recommend USB 3.0 for uncompressed video
4GB RAM
Intel Core i5 or equivalent
Graphic card with dedicated memory
Supported cameras
Depends on the camera specifications
Software Compatibility
UVC-compliant. Runs with all software compatible to DirectShow, AVFoundation and V4L2.
Compatible to: Teams, Zoom, Webex, Google Meet, etc.
Physical details
Dimensions (W x L x H)
18.5 cm x 11.0 cm x 3.0 cm
7.25” x 4.25” x 1.25”
Power supply
12V (100-240 VAC 50/60Hz to 12V/1.2A DC)
Weight
540 g (1.19 lb)
Package content
1x 1m/3.3ft USB 3.0 cable (Type-A to Type-B)
1x RS-232 terminal block adapter
1x power supply 100-240 VAC 50/60Hz to 12V/1.2A DC
International adapters included in the box (AUS, EUR, UK and US)
Operating temperature
0° to 45° C
32° to 113° F
Storage temperature
-40° to 105° C
-40° to 221° F
Relative humidity
0% to 90% non-condensing
Informations
UPC code
040232633843
Origin
Canada
Warranty
2 years
Certifications
HDCP-compliant
The INOGENI device does not decrypt BD/DVD movies, satellite/cable receivers or other encrypted sources.
Certifications
FCC, CE, RoHS, IEC62368, SoV, RCM, KC, NOM
TAA-compliant
Yes

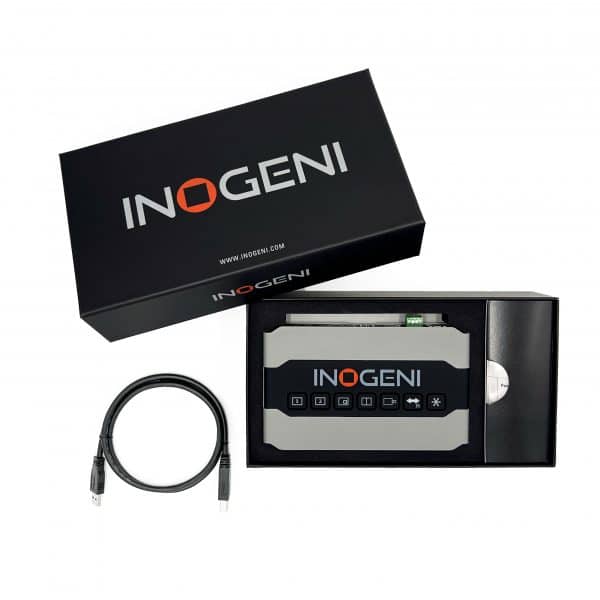

What's in the box
- 1x 1m/3.3ft USB 3.0 cable (Type-A to Type-B)
- 1x RS-232 terminal block adapter
- 1x power supply 100-240 VAC 50/60Hz to 12V/1.2A DC
- International adapters included in the box (AUS, EUR, UK and US)
