 3×1 HDBaseT Switch & Mottagare i gruppen AV-Teknik / Signalhantering / Extenders hos Audiovision AB (AT-OME-ST31A-KIT)
 3×1 HDBaseT Switch & Mottagare
 3×1 HDBaseT Switch & Mottagare

3×1 HDBaseT Switch & Mottagare

Extenderkit med HDMI, USB-C och Audio De-Embedding (100m)

Varumärke:Atlona
Artnr: AT-OME-ST31A-KIT

Egenskaper

Maxlängd 1080P: 100 M
Upplösning VESA: 2560×1600
Upplösning Video: 4096×2160@60Hz
Maxlängd 4K/UHD: 100 M
Ingångar: HDMI , USB-C
Scaler: Ja (HDMI Out)
Automatic Display Control: Ja
Autoväxling: Ja
Audio De-Embedding: Ja
Ethernet: Ja
PoE: Ja
HDCP: 2.2

3×1 HDBaseT Switch & Mottagare

Produkt:
Företag:
Namn:
Tel.
E-post:
Ditt meddelande:
Jag vill ha en offert Jag vill ha en demo

Produktinformation

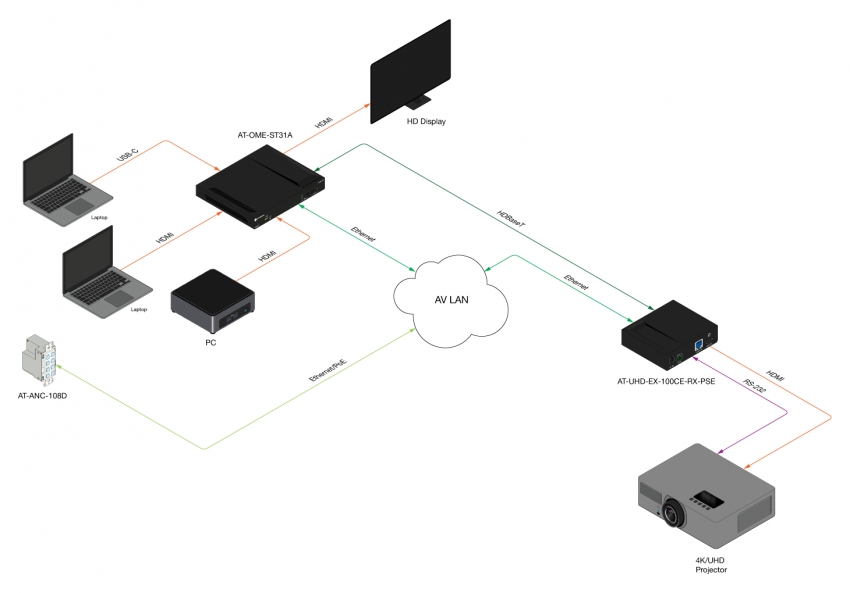

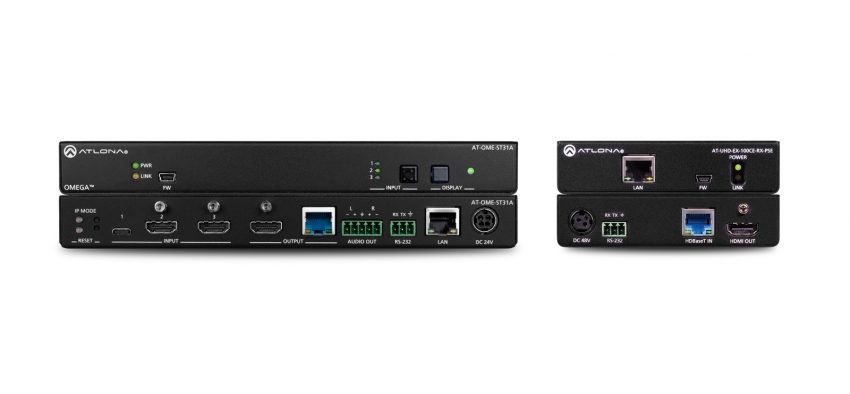

The Atlona AT-OME-ST31A-KIT is an HDBaseT transmitter and receiver combination that delivers a complete integration solution with 4K video extension, automatic switching for the HDMI and USB-C inputs, and automatic display control. It includes the AT-OME-ST31A three-input HDBaseT switcher and AT-UHD-EX-100CE-RX-PSE HDBaseT receiver. The OME-ST31A features audio de-embedding, mirrored HDMI and HDBaseT outputs, and selectable 4K downscaling to 1080p for the HDMI output. The UHD-EX-100CE-RX-PSE features a compact, low-profile enclosure that can easily be concealed behind a wall-mounted display or above a projector. This HDBaseT extender solution extends AV, Ethernet, and control up to 330 feet (100 meters) over category cable.

The transmitter is remotely powered by the receiver via Power over Ethernet (PoE). This makes the OME-ST31A-KIT ideal for applications in which the transmitter needs to be installed under a meeting table or in a lectern where local AC power may not be available.
