Main Features
- Extremely wide 60 MHz UHF tuning bandwidth for maximum versatility
- Unique multifunction button on the body-pack transmitter can be used to switch to a backup frequency
- True Diversity operation reduces dropouts
- Auto Squelch feature automatically adjusts squelch setting to maximize range while minimizing potential interference
- Frequency scan and IR sync functionality for ease of setup
- Dual-mode receiver display can switch between standard view or a performance view that highlights key metering
ATW3211/EF1 Bodypack Wireless System 590-650MHz
Providing easy setup, versatile operation and rock-solid, richly detailed high-fidelity sound, Audio-Technica’s fourth-generation 3000 Series wireless systems give users the power and flexibility to operate within the congested UHF spectrum.
With a class-leading 60 MHz tuning range – more than twice that offered by the previous versions – the new 3000 Series systems are available in 6 frequency bands – DE2 (470–530 MHz), EE1 (530–590 MHz), EF1 (590–650 MHz), FG1 (650–700 MHz), GH2 (795 – 806 MHz) and HH2 (821 – 865 MHz). Frequencies can be easily scanned and selected on the receiver and then synced with the transmitter via IR sync functionality. The 3000 Series even lets users set a backup frequency that can be quickly swapped by pressing the transmitter’s multifunction button in the event of unexpected interference.

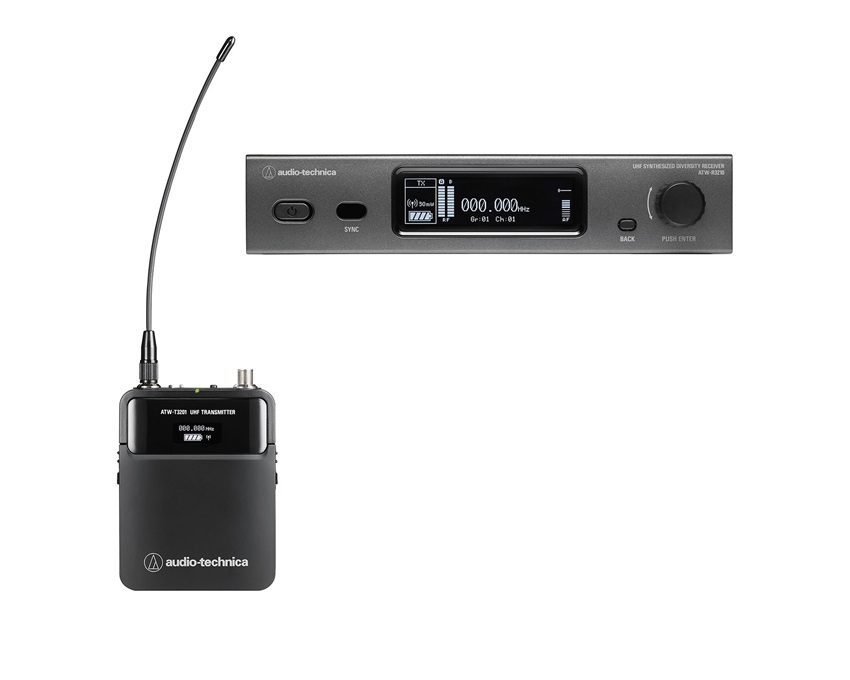

This system configuration features an ATW-R3210 receiver along with an ATW-T3201 body-pack transmitter. The ATW-T3201 is equipped with Audio-Technica’s new cH-style screw-down 4-pin connector for secure connection to Audio-Technica’s cH-style lavaliere and headworn microphones, or cables. The transmitter features rugged, metal housings and is powered by two AA batteries. Charging terminals on the transmitter work with the ATW-CHG3 and networkable ATW-CHG3N smart charging docks (sold separately) to recharge NiMH batteries. Antenna power is available for powered antennas and other in-line RF devices. A ground-lift switch helps eliminate audible hum caused by ground loops. The system features balanced and unbalanced audio output jacks.
*EF1 BAND COVERS 590-650MHz INCLUDING CHANNEL 38 FREQUENCY*
