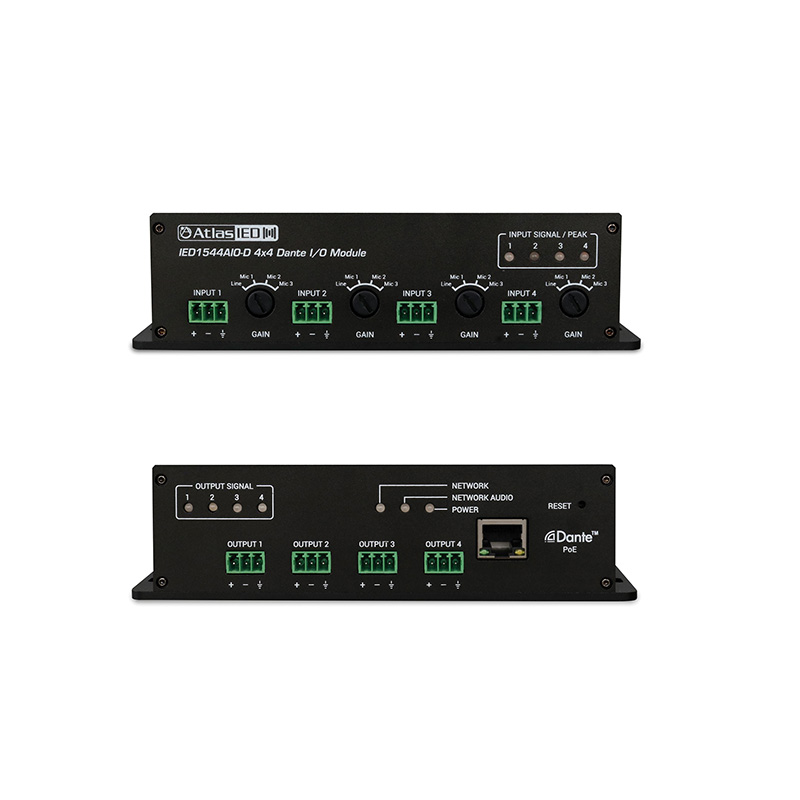

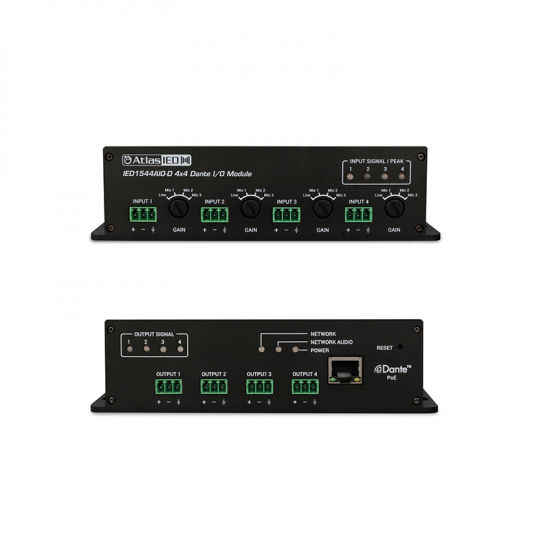

audio. Multiple channels of Dante® network audio can be transported over standard IP networks. The IED1544AIO-D 4x4 Dante® I/O Module features four analog balanced mic or line inputs (selectable) and four balanced line outputs. The four analog inputs are converted into Dante® network audio and can be routed via Dante Controller™. The four outputs convert Dante® digital audio received over the LAN into analog audio. There are indicators for network connection, network audio traffic, and power. Each input can be selected to Line or Mic level. In Mic mode, each input has 3 gain selections with Phantom Power. The IED1544AIO-D requires no external power supply. It is powered via a network PoE port or a PoE injector.
Dante® Digital Audio Platform
- Ability to use up to 2 input flows and 2 output flows on GLOBALCOM®.IP GCK
Analog Line or Mic Level Input
Convert Analog Mic/Line Audio to Dante® Network Audio
Convert Dante® Network Audio to Analog Audio Out
48V Phantom Power
Input Signal & Peak LED Indicators
Independent Gain Selection on Each Input
Analog Balanced Line Output
Output Signal LED Indicators
PoE Powered
