Crossover provides improved frequency linearity, coherence and summation between the drivers. The Finite Element Analysis optimised rear port with refined aesthetics increases airflow to reduce power compression, while reducing noise and distortion.

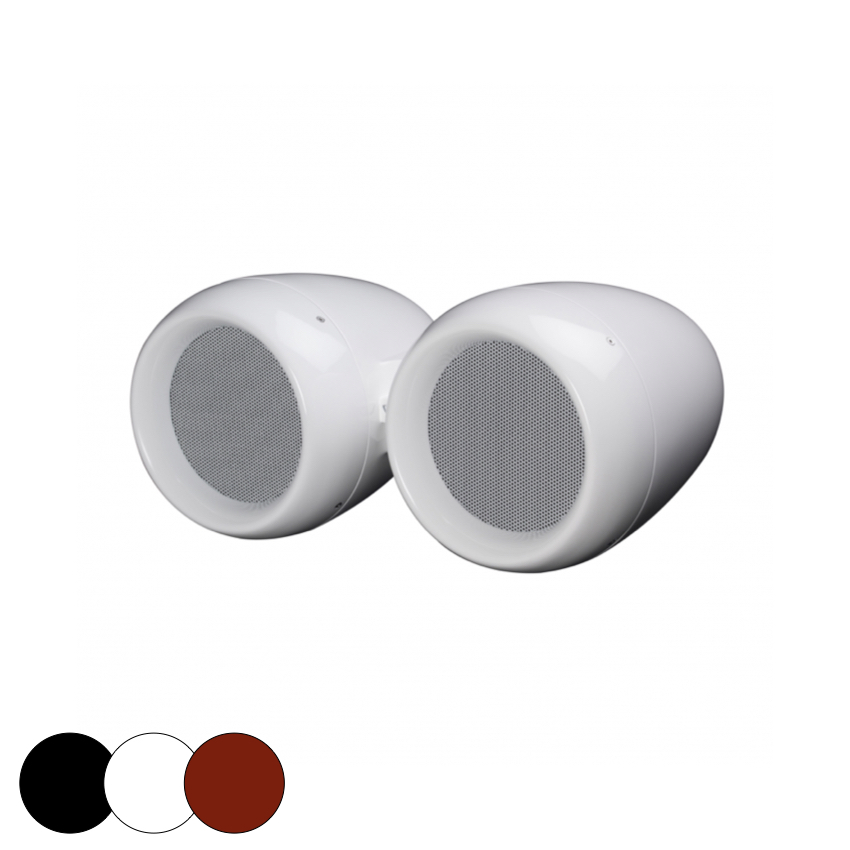

- Compact high output dual 10” loudspeaker

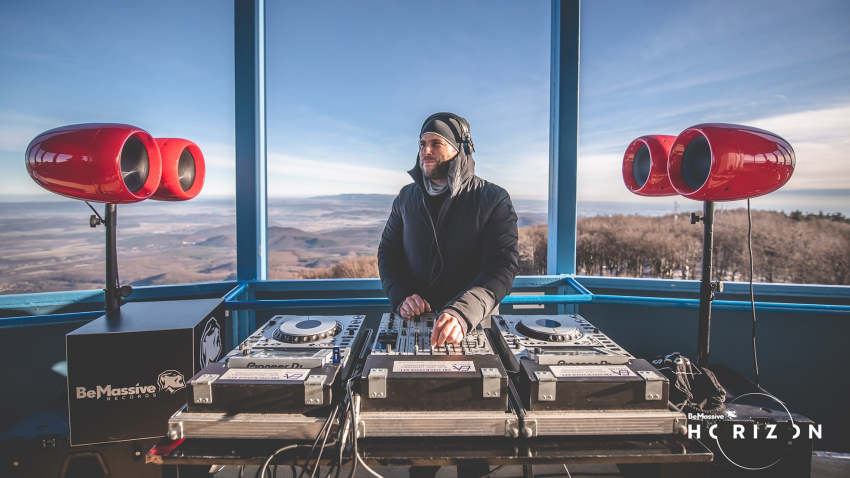

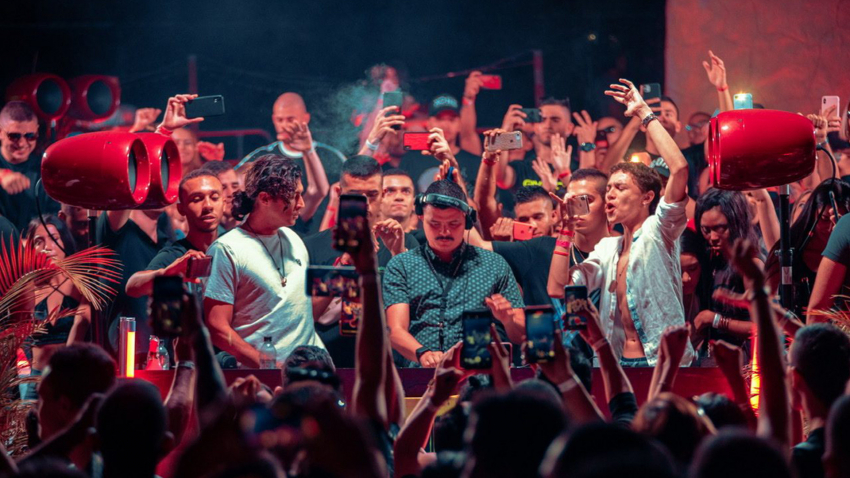

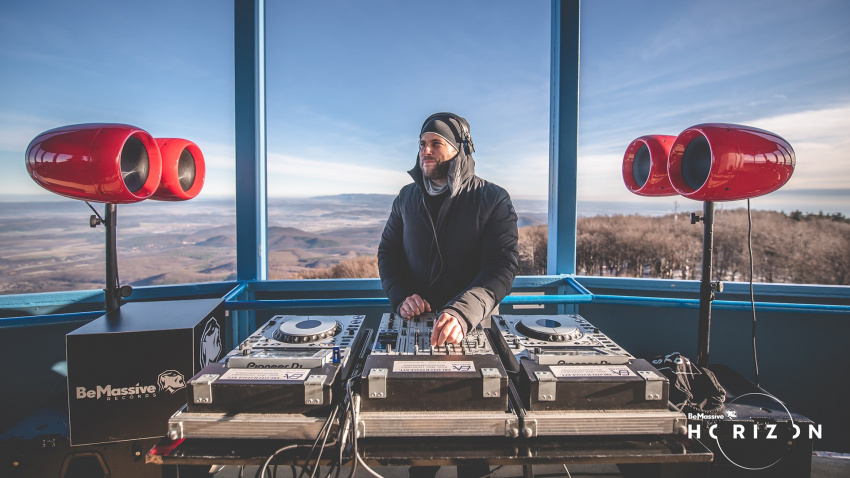

- Small footprint ideal for DJ monitoring
- Minimal resonance
- Focused 80°H x 80°V dispersion pattern
- Space saving coaxial MF/HF driver

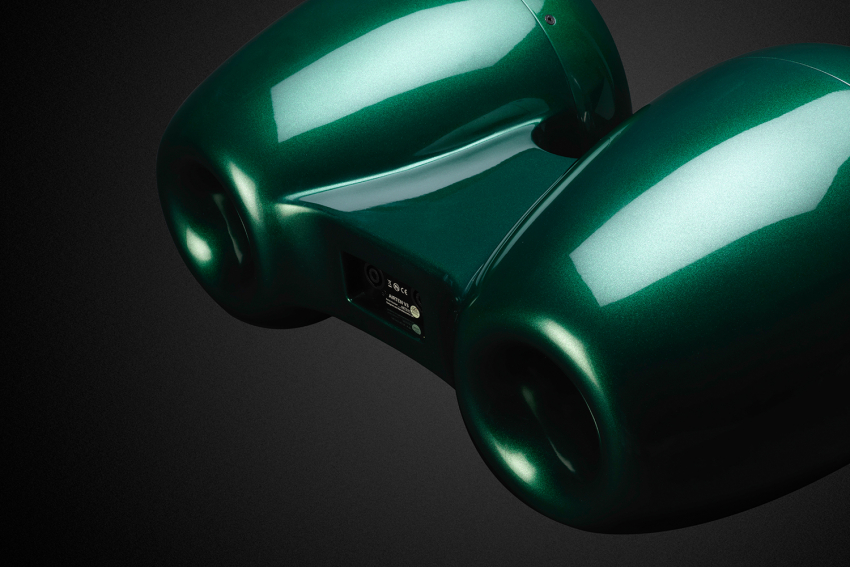

- Fibreglass composite construction
- Smooth cellulose finish
- Integrated mounting plate
- Frequency Response: 60 Hz - 20 kHz ±3 dB
- Efficiency1: 99 dB 1w/1m
- Crossover Points: Passive 1.2 kHz
- Impedance: 4 Ω
- Power Handling2: 500 W AES
- Maximum Output3: 125 dB cont, 131 dB peak
- Driver Configuration: 2 x 10" LF, 1 x 1.3" HF compression driver
- Dispersion: 80°H x 80°V

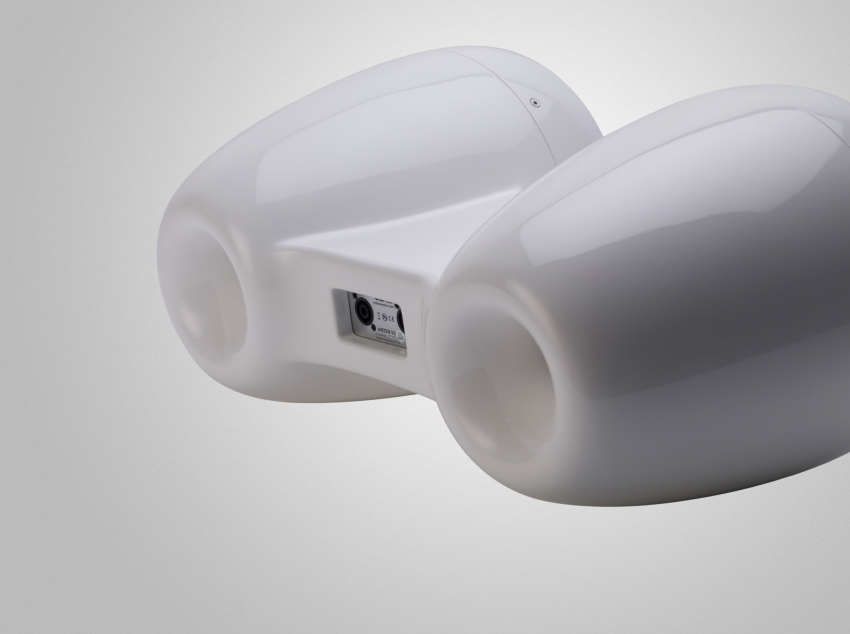

- Connectors: 2 x 4-pole speakON™ NL4
- Weight: 20 kg (44.1 lbs)
- Enclosure: Fibreglass composite
- Mounting: Integral mounting system
- Finish: Smooth cellulose
- Colour: Custom colours available upon request
1 Measured in half space 2 AES2 - 1984 compliant 3 Calculated
