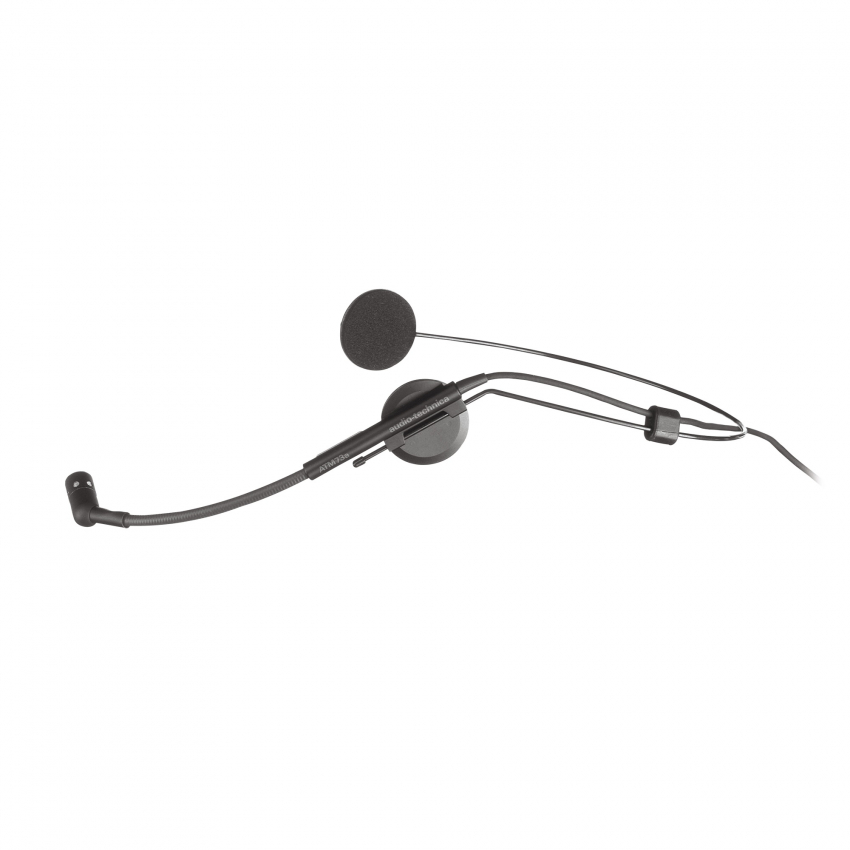

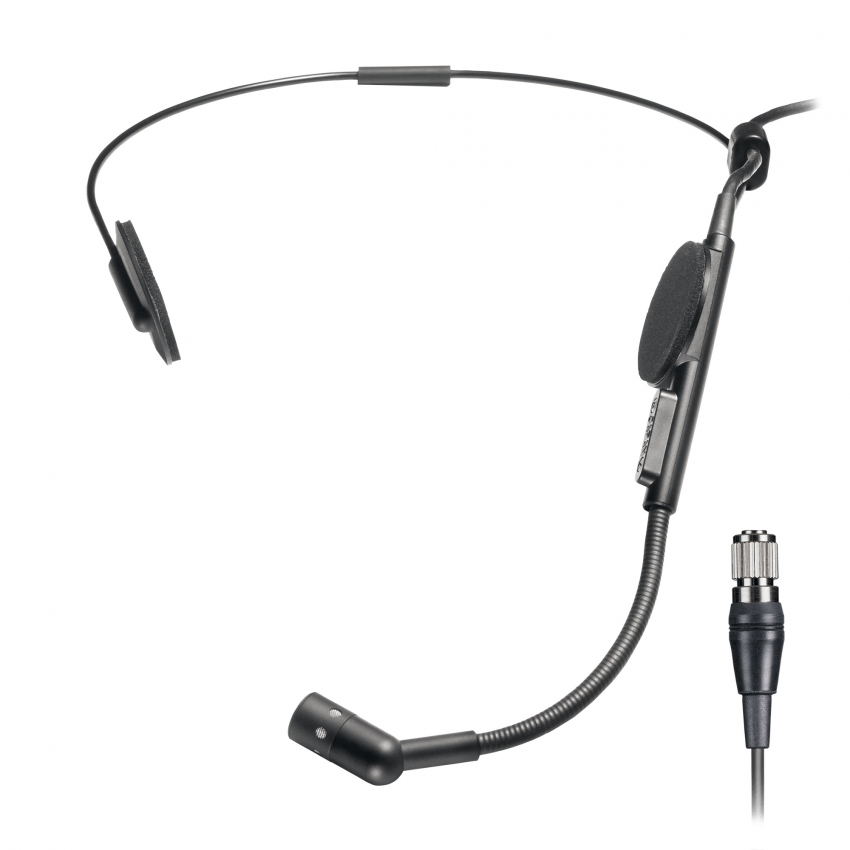

Ideal for drummers, keyboard players or anyone requiring hands-free operation, the ATM73 cardioid condenser headworn microphone features a comfortable, unobtrusive headband design with side-of-mouth pickup.
Available configurations:
ATM73cH: 55" (1.4 m) permanently attached miniature cable terminated with a screw-down 4-pin connector for use with Audio-Technica cH-style body-pack wireless transmitters.
ATM73cW: 55" (1.4 m) permanently attached miniature cable terminated with a locking 4-pin connector for use with Audio-Technica cW-style body-pack wireless transmitters.
ATM73ac: 55" (1.4 m) permanently attached miniature cable (unterminated).
- Ideal for drummers, keyboard players or anyone requiring hands-free operation
- Comfortable, unobtrusive headband design with side-of-mouth pickup
- Belt-mounted power module operates on battery or phantom power
- Cardioid polar pattern improves isolation of desired sound source
| Microphones |
|---|
| Element | Fixed-charge back plate, permanently polarized condenser |
|---|
| Polar Pattern | Cardioid |
|---|
| Frequency Response | 40 - 15,000 Hz |
|---|
| Signal-to-Noise Ratio | 59 dB, 1 kHz at 1 Pa |
|---|
| Weight | 31 g (1.1 oz) |
|---|
| Cable | 55" (1.4 m) long (permanently attached to microphone), 0.10" (2.6 mm) diameter, 2-conductor shielded cable (termination dependent) |
|---|
| Dimensions | Microphone: 10.0 mm (0.39") diameter
Headset: 165.0 mm (6.49") nominal at widest point, 67.0 mm (2.64") flexible boom |
|---|

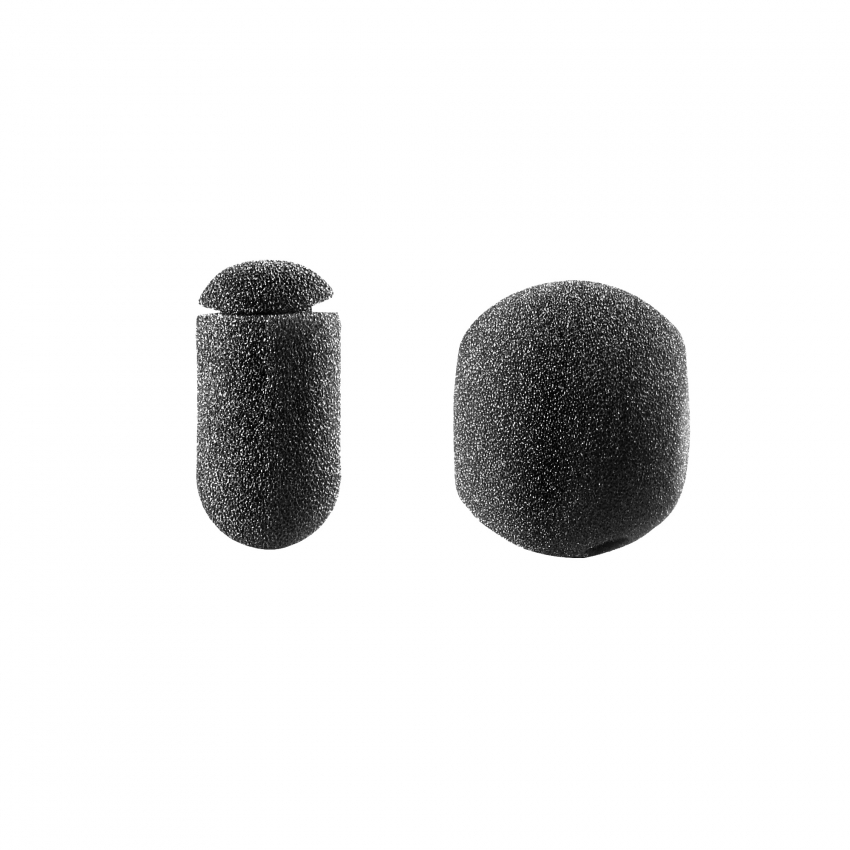

| Accessories Included | AT8128 windscreen; AT8125 windscreen |
|---|
