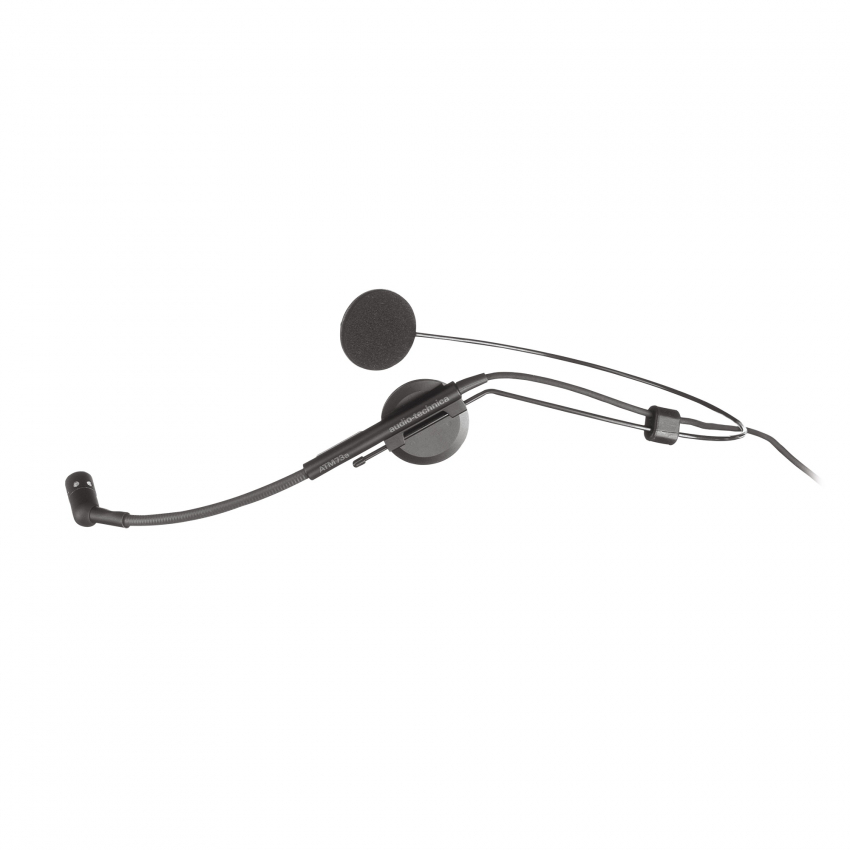

Ideal for drummers, keyboard players or anyone requiring hands-free operation, the ATM73 cardioid condenser headworn microphone features a comfortable, unobtrusive headband design with side-of-mouth pickup.
Available configurations:
ATM73cH: 55" (1.4 m) permanently attached miniature cable terminated with a screw-down 4-pin connector for use with Audio-Technica cH-style body-pack wireless transmitters.

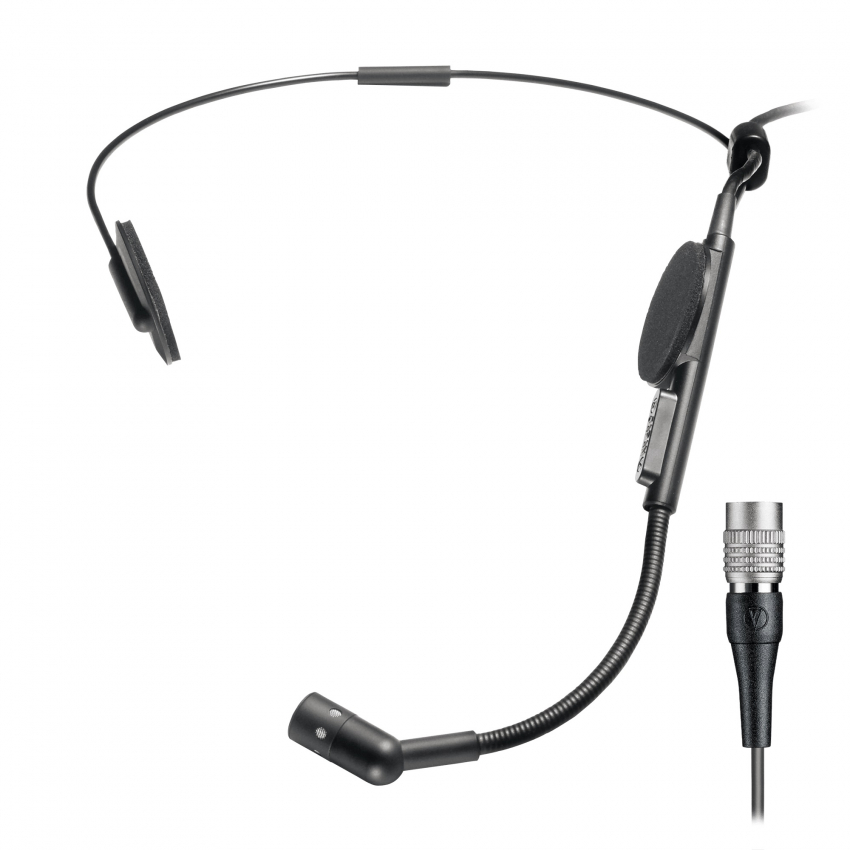

ATM73cW: 55" (1.4 m) permanently attached miniature cable terminated with a locking 4-pin connector for use with Audio-Technica cW-style body-pack wireless transmitters.
ATM73ac: 55" (1.4 m) permanently attached miniature cable (unterminated).
- Ideal for drummers, keyboard players or anyone requiring hands-free operation
- Comfortable, unobtrusive headband design with side-of-mouth pickup
- Belt-mounted power module operates on battery or phantom power
- Cardioid polar pattern improves isolation of desired sound source
Microphones |
---|
Element | Fixed-charge back plate, permanently polarized condenser |
---|
Polar Pattern | Cardioid |
---|
Frequency Response | 40 - 15,000 Hz |
---|
Signal-to-Noise Ratio | 59 dB, 1 kHz at 1 Pa |
---|
Weight | 31 g (1.1 oz) |
---|
Cable | 55" (1.4 m) long (permanently attached to microphone), 0.10" (2.6 mm) diameter, 2-conductor shielded cable (termination dependent) |
---|
Dimensions | Microphone: 10.0 mm (0.39") diameter Headset: 165.0 mm (6.49") nominal at widest point, 67.0 mm (2.64") flexible boom |
---|

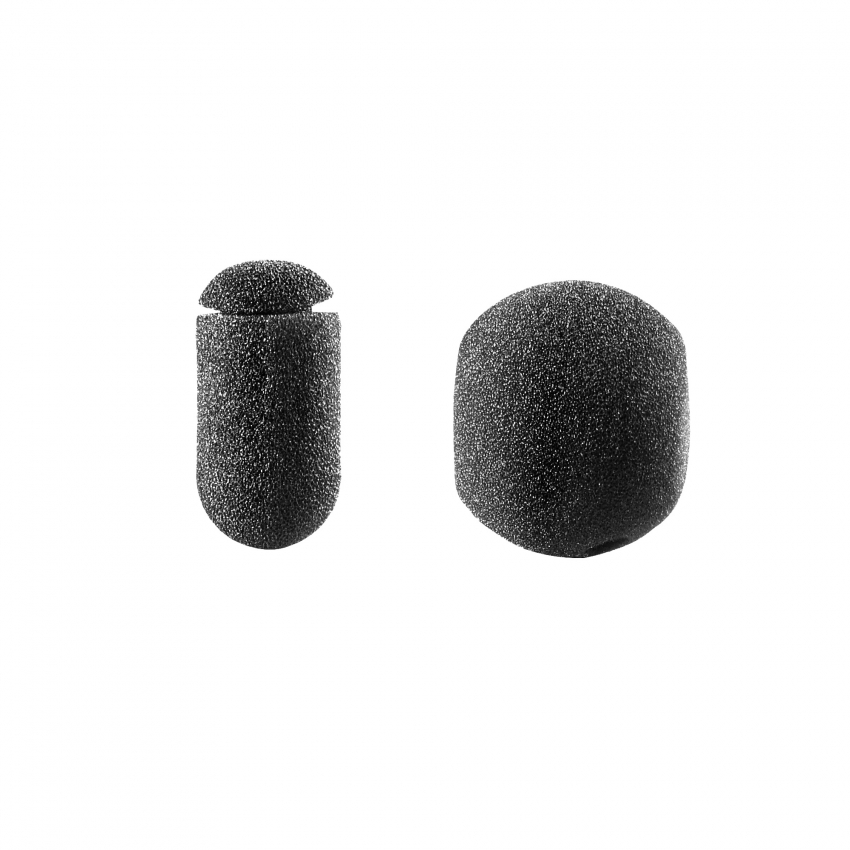

Accessories Included | AT8128 windscreen; AT8125 windscreen |
---|
