Atlona Kontrollpanel i gruppen Styrsystem / Kontrollsystem / Knappbaserade hos Audiovision AB (AT-ANC-108D)
Atlona Kontrollpanel
Atlona Kontrollpanel

Atlona Kontrollpanel

TCP/IP Kontrollpanel för Atlona switchers med 1 utgång (PoE)
Antal:
Varumärke:Atlona
Artnr: AT-ANC-108D

Egenskaper

Produktinformation

  • Remote control panel for Atlona IP-controllable AV switchers
  • Fast installing, single cable integration
  • Easy to configure with AMS and downloadable templates
  • Eight, soft-touch, backlit buttons
  • Remotely powered via PoE (Power over Ethernet)
  • Installer-customizable, pre-cut label sheets
  • Fits US one-gang junction box with Decora® wallplate

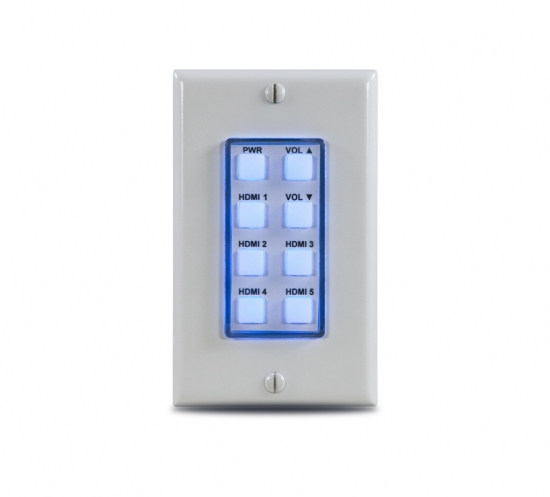

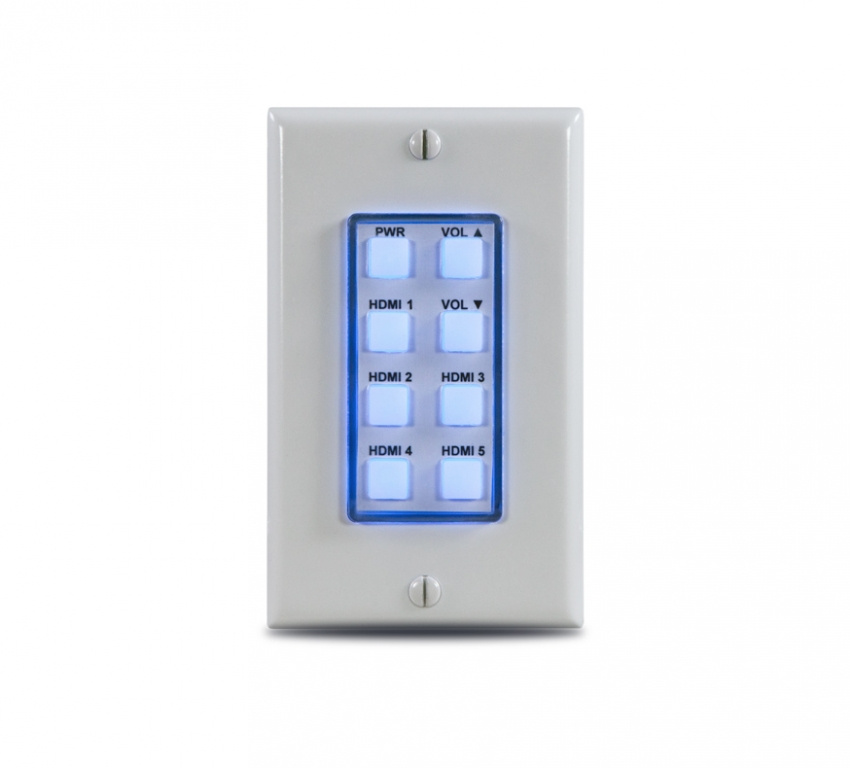

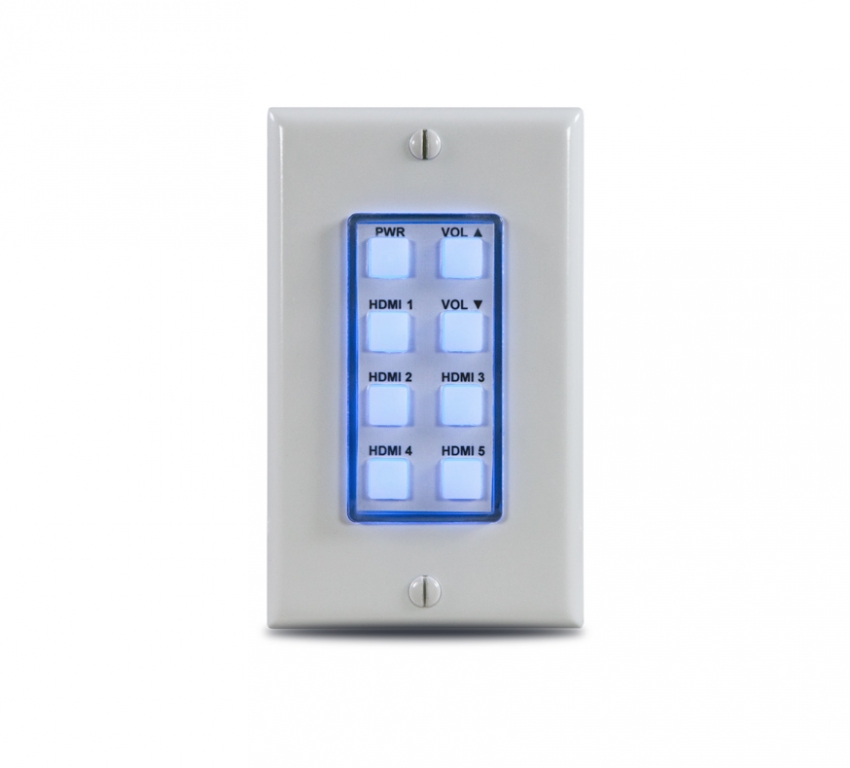

The Atlona AT-ANC-108D is an 8-button network control panel for Atlona IP-based single output channel switchers. It is designed for easy configuration using the free Atlona Management System (AMS) software resource. The ANC-108D only requires a single category cable, from a PoE-equipped network switch, to deliver both control signal and power, and provide fast, hassle-free installation. Configuration is also fast. Simply download a configuration file from within AMS for Atlona single output switchers such as the HDVS-200 Series, HDVS-300 Kit, SW Series, AT-UHD-CLSO-601, or AT-UHD-CLSO-612ED.

Even with automatic input switching and display control on many of our AV switchers, presenters still want a visual means of changing inputs, operating displays and adjusting volume. The ANC-108D backlit panel provides a user-friendly means of controlling the AV in a meeting room or classroom. System designers need an inexpensive point of control to meet those needs without worrying about complex control system coding. The ANC-108D, working with AMS, meets both of these demands. Regardless of the Atlona IP-based switcher designed into the meeting space or classroom, with the ANC-108D the AV operator will always have a consistent control interface from room to room.

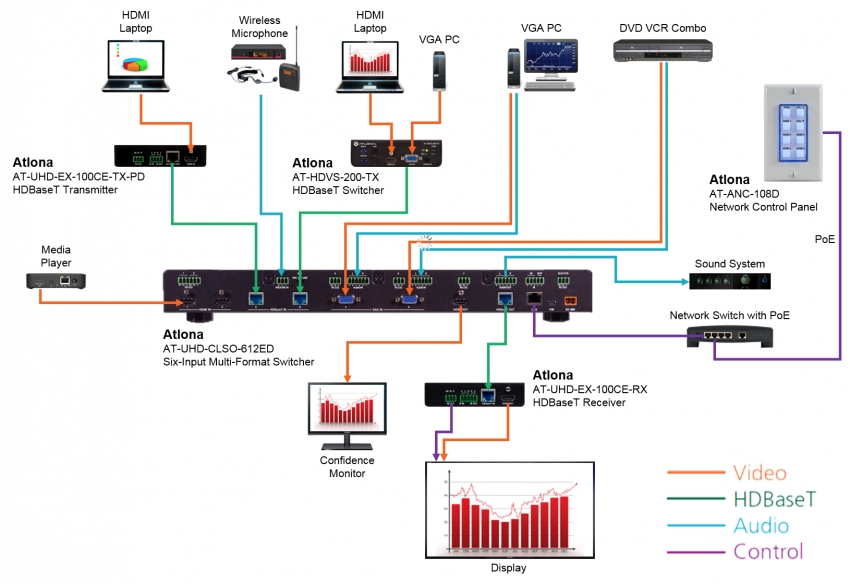

Combined with Atlona IP-controllable switching products for huddle spaces, classrooms and conference rooms, the network control panel acts as a remote control to send IP commands to the switcher. The switcher in turns acts on those commands or translates the IP commands into RS-232 commands to control external devices such as displays to create a seamless AV system. The ANC-108D fits into a US one-gang junction box and is compatible with Decora-style wallplates.

Remote control panel for Atlona IP-based products

  • Works with Atlona single output channel switchers such as the HDVS-200 Series, HDVS-300 Kit, SW Series, AT-UHD-CLSO-601, or AT-UHD-CLSO-612ED
  • Provides an additional point of control in a meeting space or classroom

Fast installing, single cable integration

  • Hassle-free installation of control and power using standard category cable and RJ-45 connectors
  • Speeds installation and reduces labor costs

Easy to configure with AMS and downloadable templates

  • Fast, straightforward configuration using Atlona’s network-based management and configuration software
  • Reduces cost of AV systems by eliminating complex control system programming

Eight, soft-touch, backlit buttons

  • Consistent, well-illuminated panel provides an instantly-familiar point of control for AV systems
  • Easy for end users to operate

Remotely powered via PoE (Power over Ethernet)

  • PoE allows the AT-ANC-108D to be conveniently powered over the network from a PoE-equipped network switch
  • IEEE 802.3af PoE Powered Device (PD) – Class 3
  • Optional, external power supply available for local powering

Installer-customizable, pre-cut label sheets

  • Allows system designers and installers to easily place printed labels on the controller under a protective cover
  • Clear, tamper-resistant labeling provides durable function identification on the controller

Fits US one-gang junction box with Decora wallplate

  • Compact, shallow-depth control is easy to place in walls or specially-design access enclosures in tables and cabinetry
  • Aesthetic form-factor is at home in many locations and environments

Included accessories

  • User guide, white wallplate

Award-winning 10 year limited product warranty

  • Ensures long-term product reliability and performance in residential and commercial systems
  • Specify, purchase, and install with confidence
