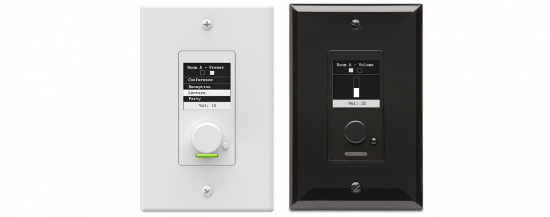

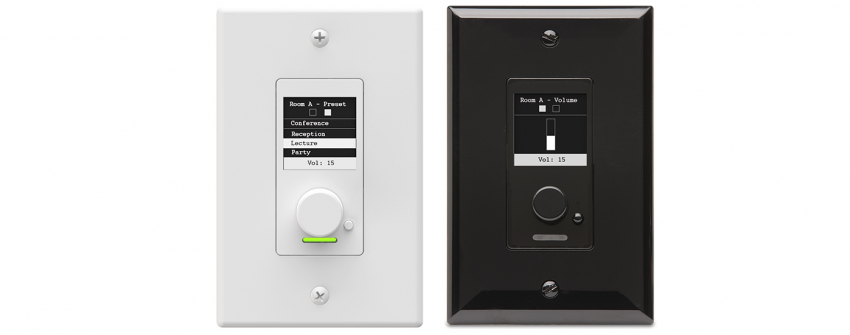

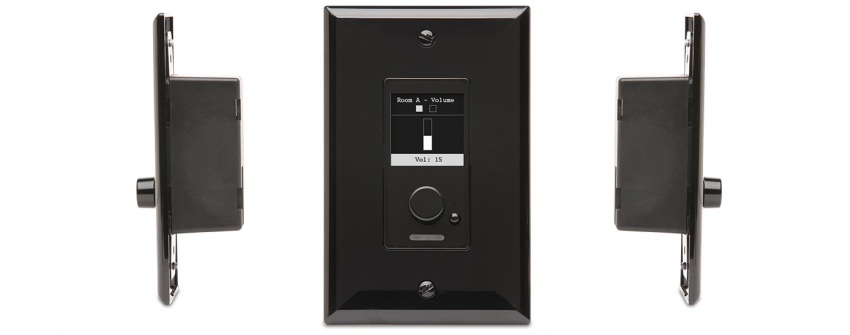

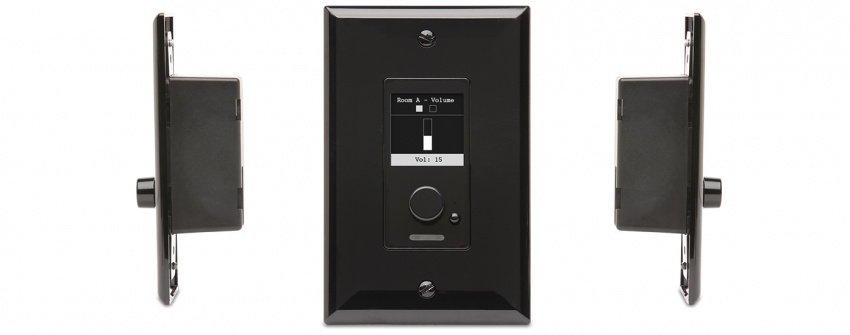

The Attero Tech by QSC Axon C1 is an assignable control solution for networked AV systems. The C1 features a single-gang, Decora in-wall design with an OLED display and rotary encoder for simple AV system control of volume, mute and preset recall. The C1 integrates into the Q-SYS Ecosystem via a control plugin, removing the need for custom programming during integration. Given its flexible nature, the C1 is capable of controlling virtually any Ethernet-based, third-party audio DSP or AV equipment.

• Ethernet-based control solution for the Q-SYS Ecosystem and other third-party AV products supporting UDP, TCP/IP control
• Available Q-SYS control plugin for control mapping - no programming required
• Menu customization with unIFY Control Panel software
• High-contrast OLED display provides easy-to-read menus and status
• Intuitive controls facilitate simple user experience over assigned AV system functions
• Assignable LED light bar, provides optional feedback for zone level and system state

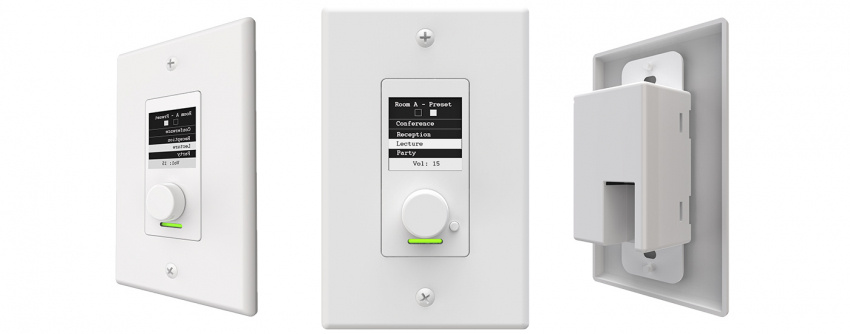

• Minimalist design includes both black and white Decora faceplates to provide aesthetic appeal to a variety of venues
• PoE powered - simple, single CAT-5e/CAT-6 cable installation

Axon C1 Control & Display:

	Axon C1
User interface	One rotary / pushbutton encoder knob; one pushbutton toggle selector
Display type	1.5 in (38.1 mm) diagonal high-contrast OLED display
Status indicator	RGB LED bar, adjustable brightness

Axon C1 Specifications:

	Axon C1
Network physical layer	Ethernet
Network connector(s)	RJ-45
Network transmission speed	100 Mbps
PoE power	802.3af Class 0
Device dimensions (H x W x D)	4.2 x 1.74 x 1.77 in (106.68 x 44.19 x 44.96 mm)
Device weight	0.25 lbs (0.113 kg)
