- XLR input provides connectivity for dynamic microphones with 50 dB of adjustable gain
- ¼” connector includes a fixed attenuator pad for +4 dBu nominal input levels
- 3.5 mm jack provides consumer (-10 dBV nominal) input level with 20 dB of adjustable gain and is summed to mono
- Audio signal level indicator LEDs for each input provide quick feedback for proper input gain adjustments
- Selectable sum-to-mono option for both inputs, allowing 2 ML1s or another Axiom device to be daisy-chain connected on a single bus

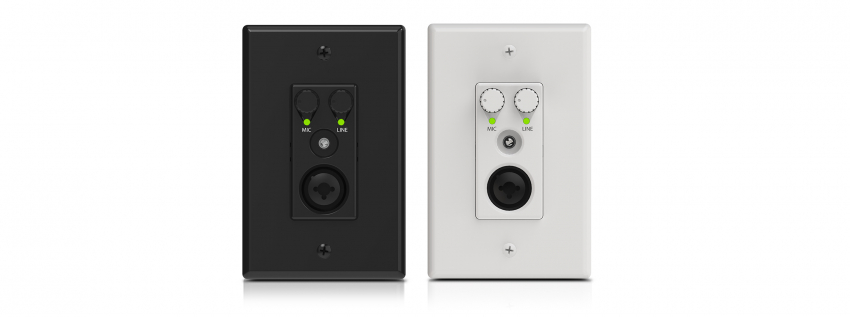

Axiom ML1 Specifications:
Audio Inputs (Mic/Line) | |
Connector type | 3.81 mm Euro, 3 position (16-28 AWG) |
Gain | -8 dB to +34 dB gain, 1 dB increments |
Input impedance | >2 KΩ at any gain |
Maximum input level | -8 dB gain, max input = +16.5 dBu (+24 dBuw/pad) |
Frequency response | 20-20 kHz, +/- 1 dB (Line), 50-20 kHz +/- 1 dB (Mic) |
Audio Line Outputs | |
Connector type | 3.81 mm Euro-block, 3 position (16-28 AWG) |
Maximum output levels | +24 dBu (-15.5 dBU w/pad) |
Frequency response | 20-20 kHz, +/- 1 dB (Mic/Line) |
Dynamic range | 100 dB |
General | |
Dimensions (HWD) | 1.6 x 7.4 x 8 in (40.6 x 188 x 203 mm) |
Weight | 2.1 lbs (0.95 kg) |
Mounting options | Rack-mountable, 1 RU 1/3-rack width Surface-mountable *All mounting hardware offered as accessories |
