The Attero Tech by QSC Axon D2FLEXio provides cost-effective analog audio connectivity for integration into network AV systems such as the Q-SYS Ecosystem. Each analog audio I/O features a selectable switch to assign input or output audio connectivity. This flexibility provides a single product solution for cost-effective analog audio conversion to and from any Dante/AES67 system.

Key Features

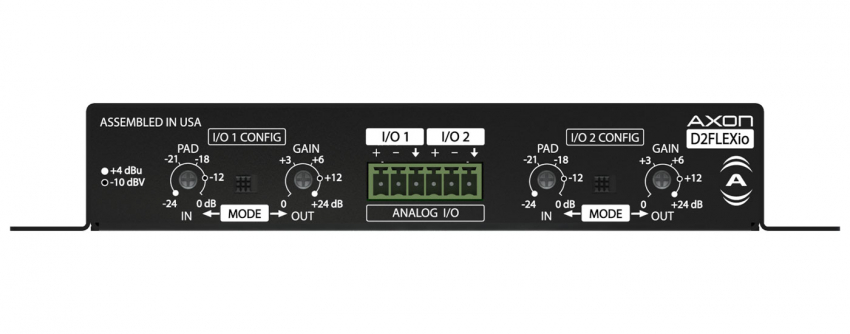

• Dual analog flex I/O, selectable via recessed slide switches (2x0, 1x1, 0x2)
• I/O trim potentiometers for accommodating professional and consumer audio line levels
• 44.1, 48, 88.2, 96 kHz, 24 bit audio conversion to and from a Dante network
• Supports Dante Domain Manager
• Small form factor with integrated mounting tabs
• PoE or DC powered
• Retrofit connectivity for non-networked AV equipment to and from a Dante or AES67 audio network, including:
• Power amplifiers and powered speakers
• Wireless microphone receivers
• In-ear monitor transmitters
• Electronic instruments and DJ equipment
• Mixers, DSPs and other audio signal processing gear
Specifications:

Audio Inputs (when selected)
I/O type 2x switchable balanced and RF filtered 3-pin de-pluggable terminal blocks
Maximum Input levels 0 dBu to +24 dBu line-level
(pad attenuation 0 to -24 dB
Dynamic range >= 100 dB (20 - 22 kHz)

Audio Outputs (when selected)
I/O type Two switchable Balanced and RF filtered
3-pin de-pluggable
Maximum Output Level 0 dBu to +24 dBu (0 to +24 dB gain range)
Dynamic Range >= 95 dB (20 - 22 kHz) @ any output gain

Dante/AES67 Network
Physical layer Ethernet
Connector(s) RJ-45
Cable quality CAT-5e or greater, UTP
Supported bit rates 16, 24
Supported sample rates 44.1 kHz, 48 kHz (default), 88.2 kHz, 96 kHz
AES67 support AES67, SAP based stream discovery

Power
PoE power 802.3af Class 0
