- 16-ch, 20 W network amplifier designed for themed entertainment and other specialized audio applications
- Ruggedized and vibration tested for use in mobile attractions
- Dante/AES67 connectivity with remote control and monitoring
- Loudspeaker outputs and power inputs use Molex connectors optimized for high vibration environments
- Available Q-SYS Extension
- Dante Domain Manager ready
Purpose built for themed entertainment and beyond – The Attero Tech by QSC DTH1620 Dante/AES67 network amplifier is designed to support high-channel, low power output audio applications, including individual theme park rides, attractions or parade floats. It features 16-channels at 20 watts per channel in a ruggedized and compact form factor, with the ability to support both traditional passive transducers and haptic transducers, enabling specialized audio applications beyond the theme park.
Q-SYS Ecosystem integration – Q-SYS drag-and-drop control programming simplifies the integration process, letting you deploy the DTH1620 Dante/AES67 network amplifier without complicated scripting. A Q-SYS Extension allows for control and monitoring of the amplifier via native Q-SYS TSC series touch screen controller (as of Q-SYS Designer Software v8.4, the Q-SYS Scripting Engine license is not required to deploy designs with Attero Tech by QSC devices).
Specifications:
| Audio | |
| Frequency response @ 1 W into 8 Ω | 20 Hz - 20 kHz |
| Signal-to-noise | 97 dB (20 W into 8 Ω) |
| Output circuitry | Class D |
| Connectors | |

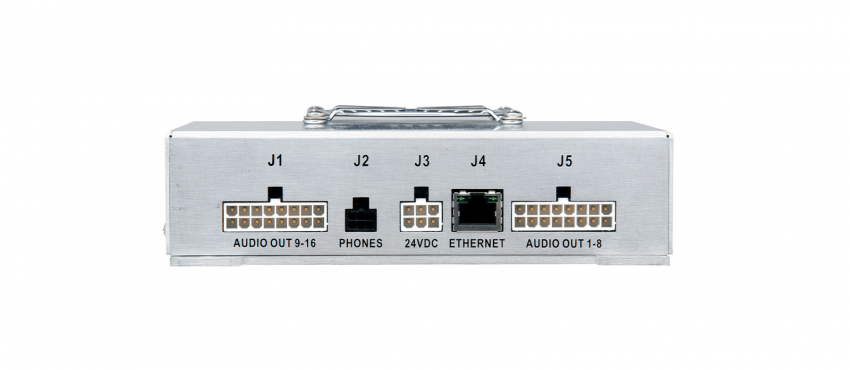

| Mic/line inputs | Molex 6-pin, +24 V DC |
| Speaker outputs | Molex 16-pin |
| Headphone/volume control | Molex 6-pin |
| Ehternet | RJ-45 with link and activity LED indicators |
| Power | |
| Power Requirements | +24 V DC @ 3 A, all channels 1/8 power +24 V DC @ 17.5 A, all channels full power |
| Cooling | Fan with thermal speed control |
| General | |
| Dimensions | 9 x 6.7 x 2.0 in (229 x 169 x 51 mm) |
| Weight | 2.4 lbs (1.1 kg) |
