Takhögtalare för infällnad, 6.5"/100V-8ohm, Neutralvit

Varumärke:Audac
Artnr: AUD-CIRA724I-W

Egenskaper

CIRA724I

Produkt:
Företag:
Namn:
Tel.
E-post:
Ditt meddelande:
Jag vill ha en offert Jag vill ha en demo

Produktinformation

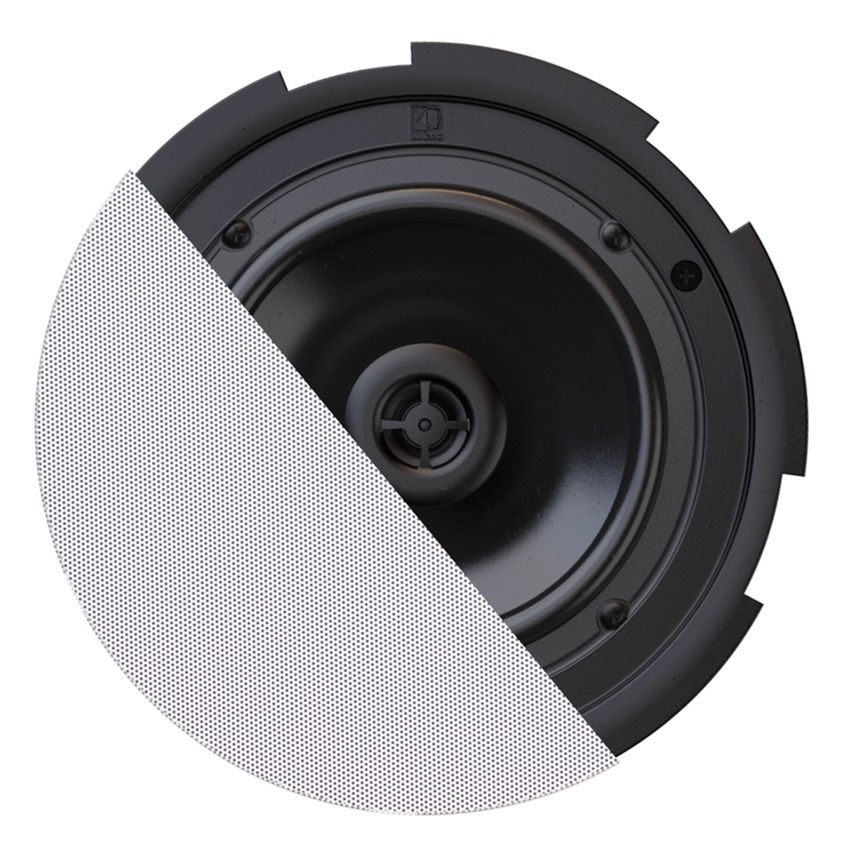

Audac CIRA724I/W ELA In-Ceiling Speaker, WHITE, 6.5/1''

Designed to offer the best value for money. The CIRA series are coaxial 2-way in-ceiling speakers with exceptional speech intelligibility and musical performance. The rimless TwistFix™ grille provides easy yet solid installation and a completely seamless transition from grille to ceiling, making the speakers perfectly integrate into the surroundings. The QuickFit™ installation system, combined with the FastCon™ connectors, offers lifetime reliability and great convenience for the installer.

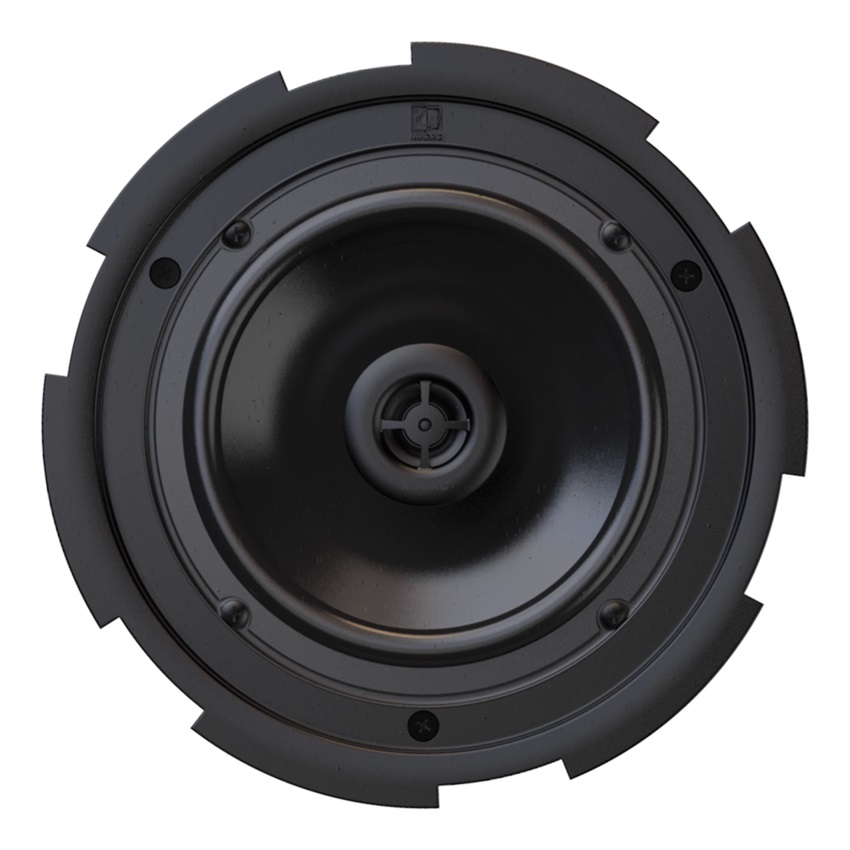

The CIRA7 features a 6.5" woofer with polypropylene cone material, combined with a 1" Mylar tweeter equipped with a phase plug for excellent off-axis radiation. The selected materials guarantee low distortion with a consistent and flat frequency response. It achieves a continuous power handling of 30 watts (RMS) and a maximum power handling of 60 watts. CIRA7 is available with a 100V transformer with 12, 24 W taps or in a low-impedance version with 16 ohms.

Features

  • 6.5" 2-way in-ceiling speaker
  • 30 watts power (RMS)
  • Quick and secure installation thanks to QuickFit™ fixing and FastCon™ connectors
  • Rimless TwistFix™ grille
  • Available with 100V transformer and 6, 12, 24 W taps or 16 ohms
  • Colors: white (RAL9016)

Technical Specifications

  • Power, Max.: 60 W
  • Power, RMS: 30 W
  • Sound Pressure (Max. W/1m): 103 dB @ 100 V
  • Sensitivity (1W/1m): 88 dB
  • Frequency Response (+/- 3 dB): 55 Hz - 20 kHz
  • Frequency Range (-10 dB): 45 Hz - 20 kHz
  • Speaker Type: 2-way coaxial
  • Impedance: 8 Ω (CIRA724), 16 Ω (CIRA730D)
  • Dispersion Angle: 150° (conical)
  • Connections: Multi-Tab Fast-con™
  • Driver, LF: 6.5" woofer
  • Driver, HF: 1"
  • 100V Transformer: 24 W - 417 Ω, 12 W - 833 Ω, 6 W - 1667 Ω (CIRA724)
  • Cutout: 200 mm (Ø)
  • Operating Temperature: -20 °C – 60 °C
  • Housing Material: ABS

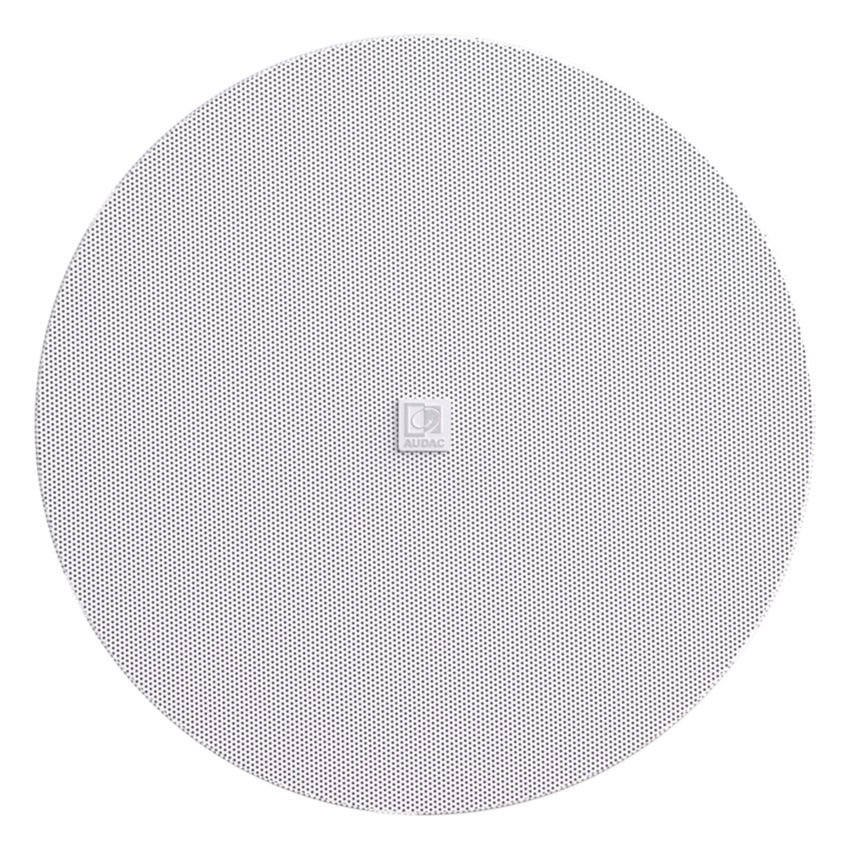

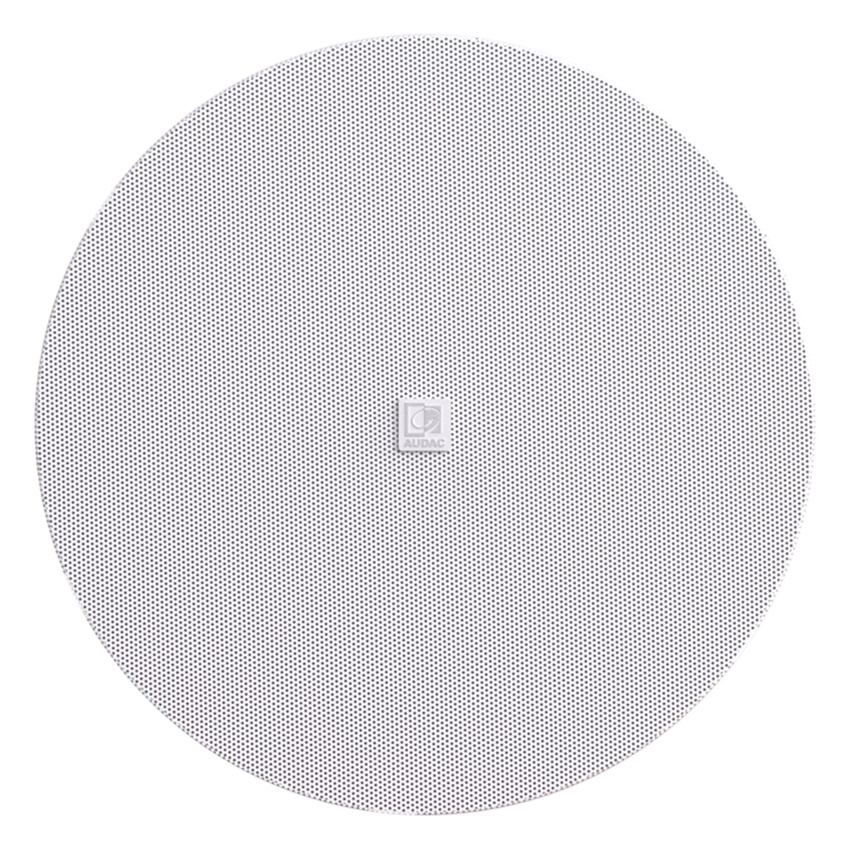

  • Grille: TwistFix™ rimless, finely perforated steel grille

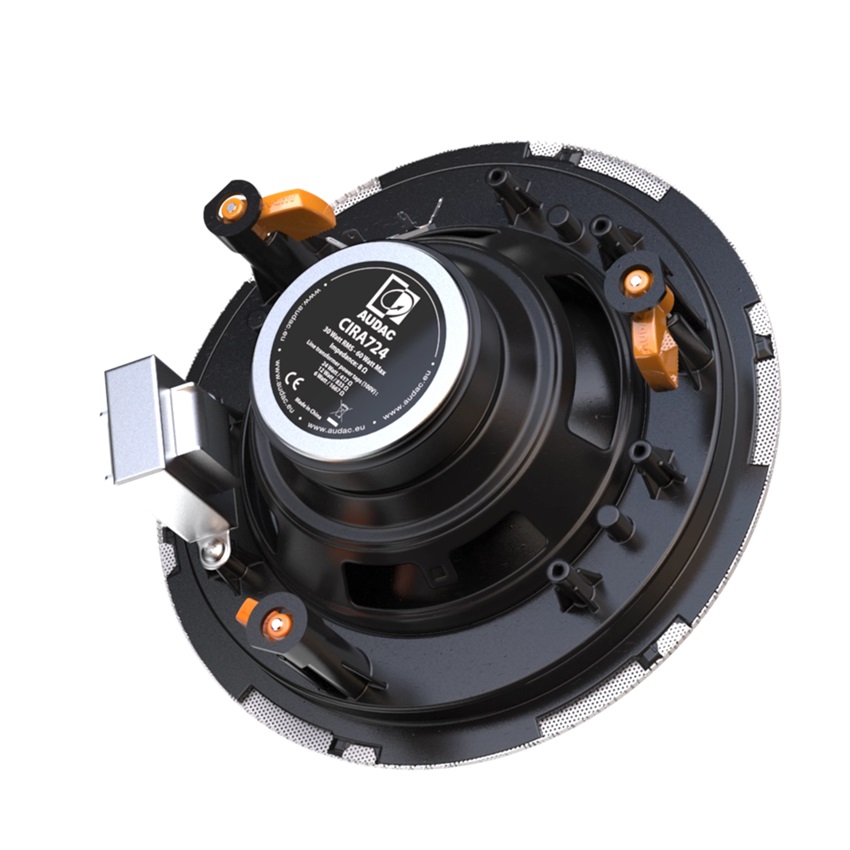

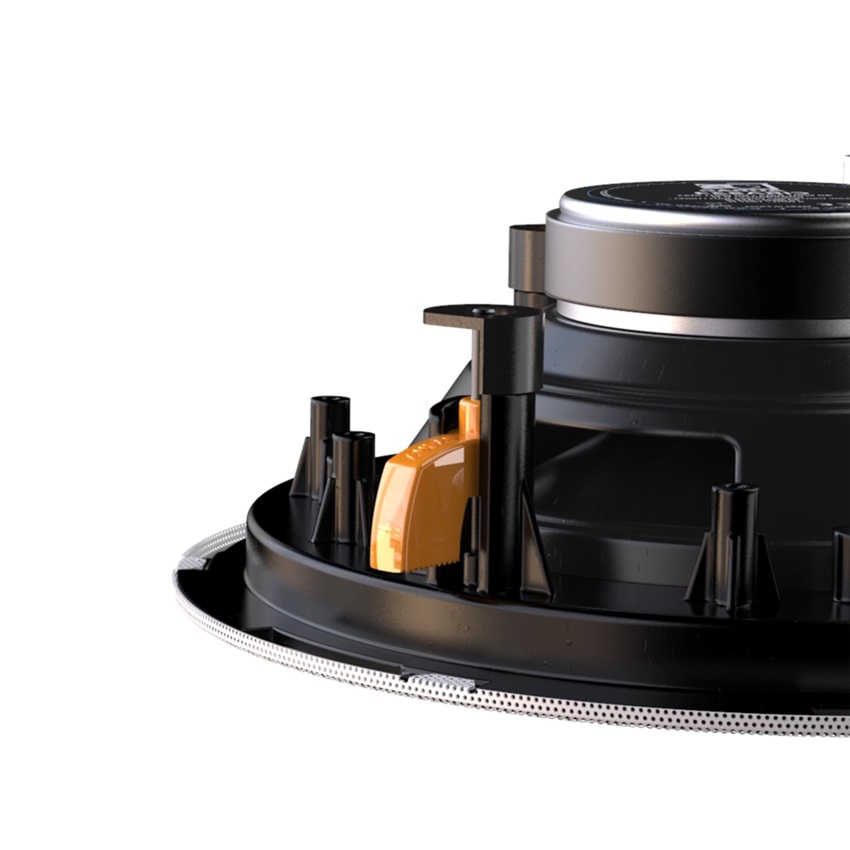

  • Mounting: QuickFit™ mounting system, attachment point for safety cable
  • Colors: white (RAL9016)
  • Mounting Depth: 78 mm (CIRA724)
  • Dimensions (Ø x D): 224 x 78 mm
  • Weight: 1.45 kg (CIRA724)

Tillbehör
GLI07
Galler för CIRA7XX Serien, Svart
