Takhögtalare för infällnad, 8"/100V-8ohm, Neutralvit

Varumärke:Audac
Artnr: AUD-CIRA824I-W

Egenskaper

CIRA824I

Produkt:
Företag:
Namn:
Tel.
E-post:
Ditt meddelande:
Jag vill ha en offert Jag vill ha en demo

Produktinformation

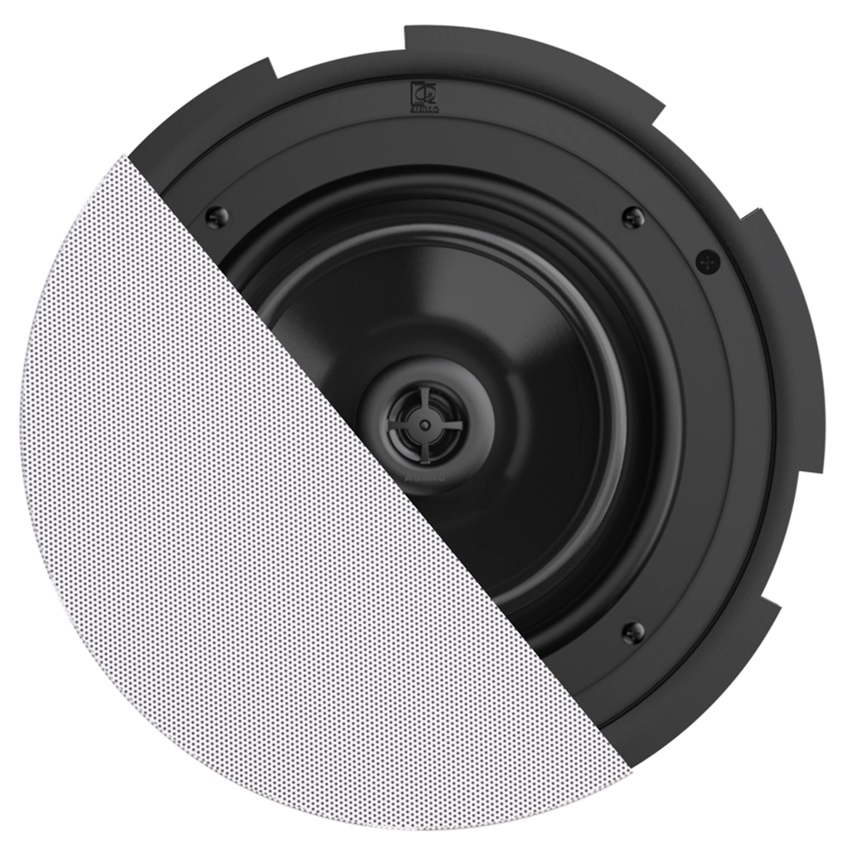

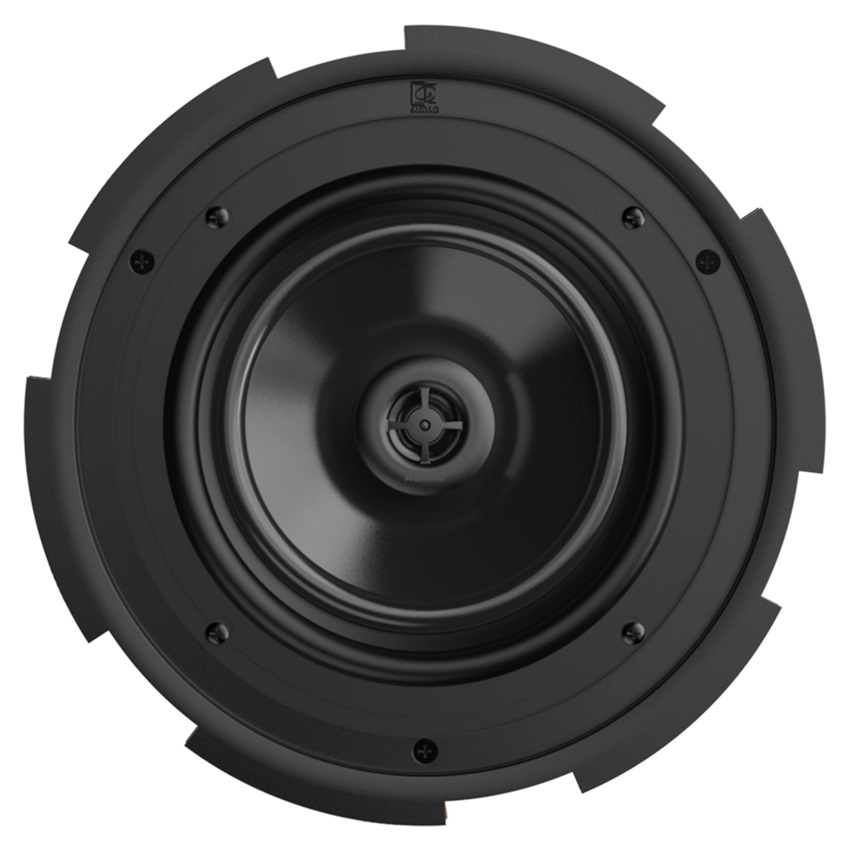

Audac CIRA824I/W built-in loudspeaker, WHITE

Designed to give you the best value for money. The CIRA series are coaxial 2-way in-wall speakers with exceptional speech intelligibility and musical performance. The rimless TwistFix™ grille offers a simple yet solid installation and a completely seamless transition from grille to ceiling, allowing the speakers to integrate perfectly into your environment. The QuickFit™ installation system, combined with FastCon™ connectors, offers a lifetime of reliability and great convenience for you as an installer.

The CIRA7 features an 8" woofer with polypropylene cone material, combined with a 1" Mylar tweeter equipped with a phase plug for excellent off-axis dispersion. The selected materials guarantee low distortion with a smooth and flat frequency response. A continuous power handling of 40 watts (RMS) and a maximum power handling of 80 watts is achieved. The CIRA8 is available either with a 100 V transformer with 12 or 24 W taps or in a low-impedance version with 16 ohms.

Features

  • 2-way in-ceiling loudspeaker
  • 40 watt output (RMS)
  • Quick and safe installation thanks to QuickFit™ fixation and FastCon™ connections
  • Rimless TwistFix grille
  • Available with 100V transformer and 6, 12, 24 W taps or 16 ohms
  • Colors: white (RAL9016)
  • Black and paintable grilles are optionally available

Technical Data

  • Power, max.: 80 W
  • Power, RMS: 40 W
  • Sound pressure (max. W/1m): 105 dB @ 100 V
  • Sensitivity (1W/1m): 89 dB
  • Frequency response (+/- 3 dB): 40 Hz - 20 kHz
  • Frequency range (-10 dB): 33 Hz - 20 kHz
  • Speaker type: 2-way coaxial
  • Impedance: 8 Ω (CIRA824), 16 Ω (CIRA840D)
  • Dispersion angle: 140° (conical)
  • Connections: Multi-tab Fast-con™
  • Driver, LF: 8" woofer
  • Driver, HF: 1"
  • 100V transformer: 24 W - 417 Ω, 12 W - 833 Ω, 6 W - 1667 Ω (CIRA824)
  • Cut-out: 243 mm (Ø)
  • Operating temperature: -20 °C - 60 °C
  • Housing material: ABS

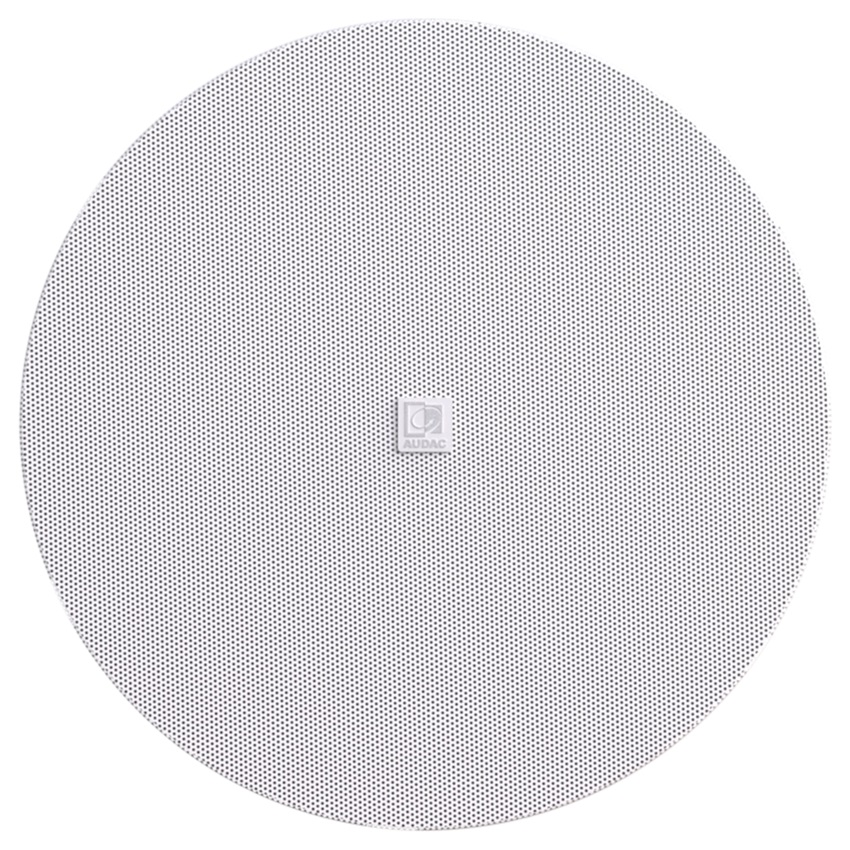

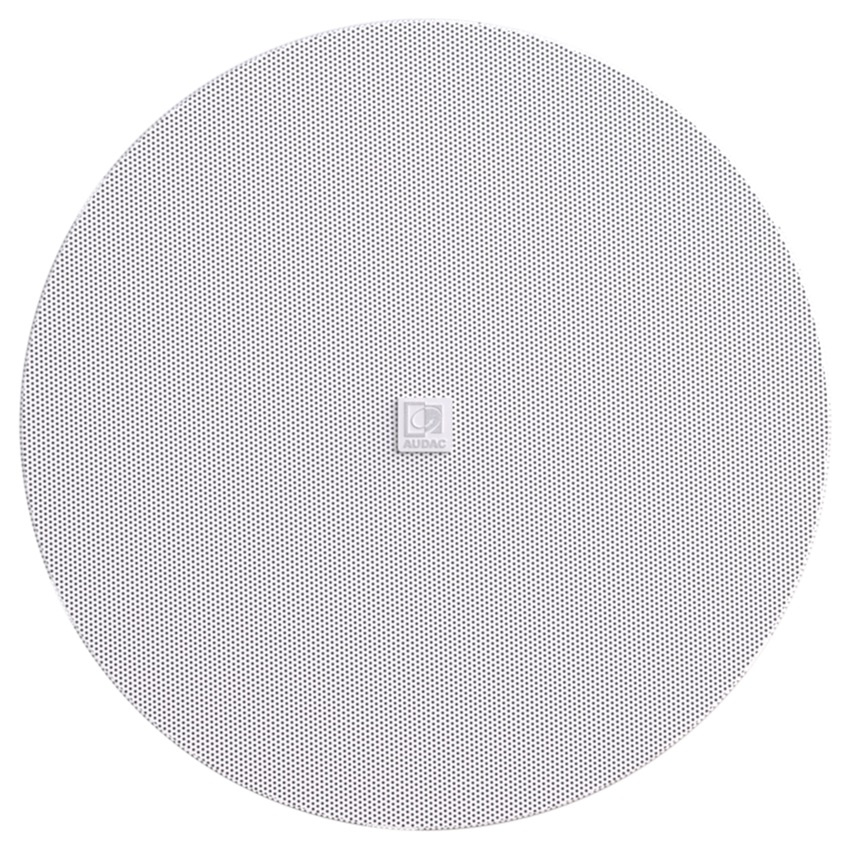

  • Grille: TwistFix™ edge-free, finely perforated steel grille

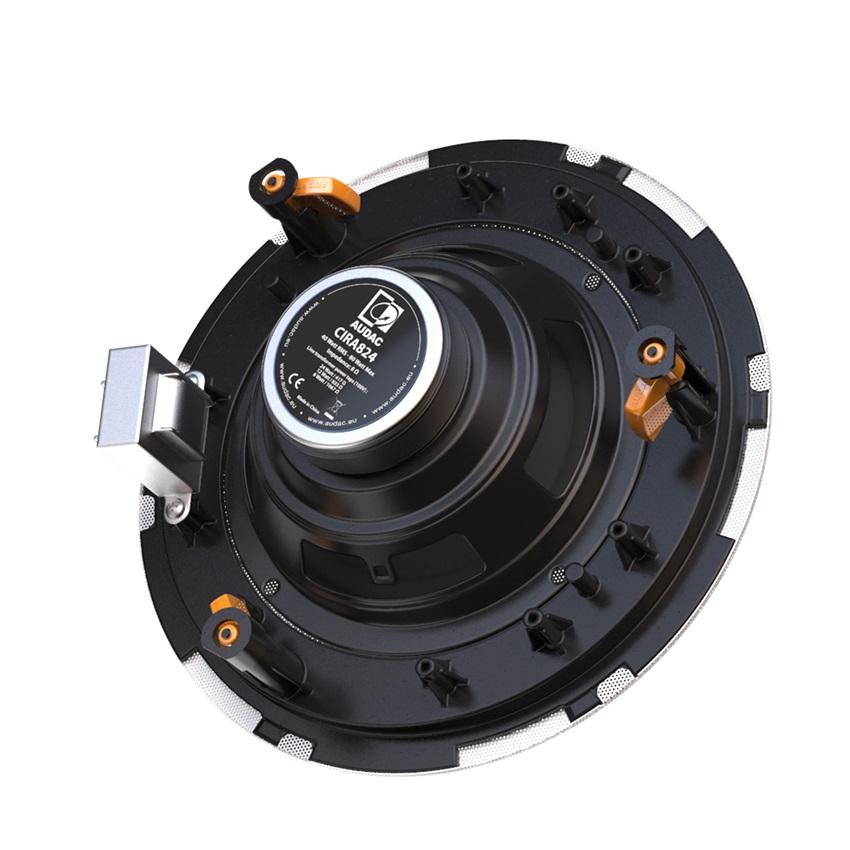

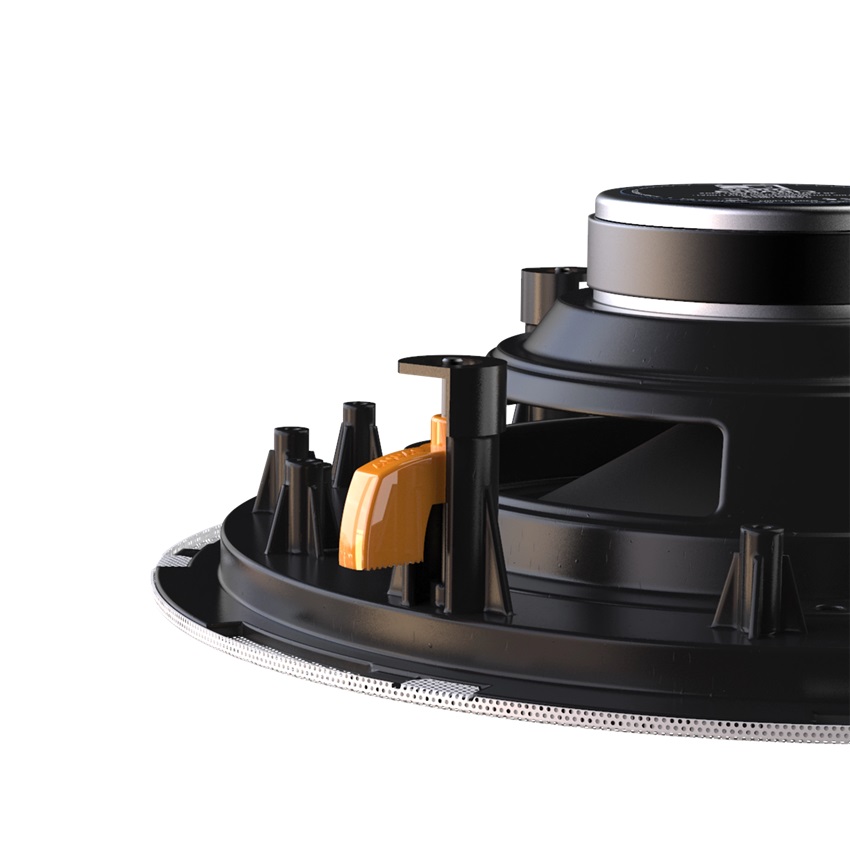

  • Mounting: QuickFit™ mounting system
  • Colors: white (RAL9016)
  • Installation depth: 82 mm
  • Dimensions (WxDxH): 270 x 82 x 270 mm
  • Weight: 1.75 kg

Tillbehör
GLI08
Galler för CIRA8XX Serien, Svart
