CP-ARC - Antenn
CP-ARC - Antenn

CP-ARC - Antenn

Väggmonterad, för IEM system, 400-800 MHz, vit

Varumärke:Audio-Technica
Artnr: CP-ARC

Egenskaper

CP-ARC - Antenn

Produkt:
Företag:
Namn:
Tel.
E-post:
Ditt meddelande:
Jag vill ha en offert Jag vill ha en demo

Produktinformation

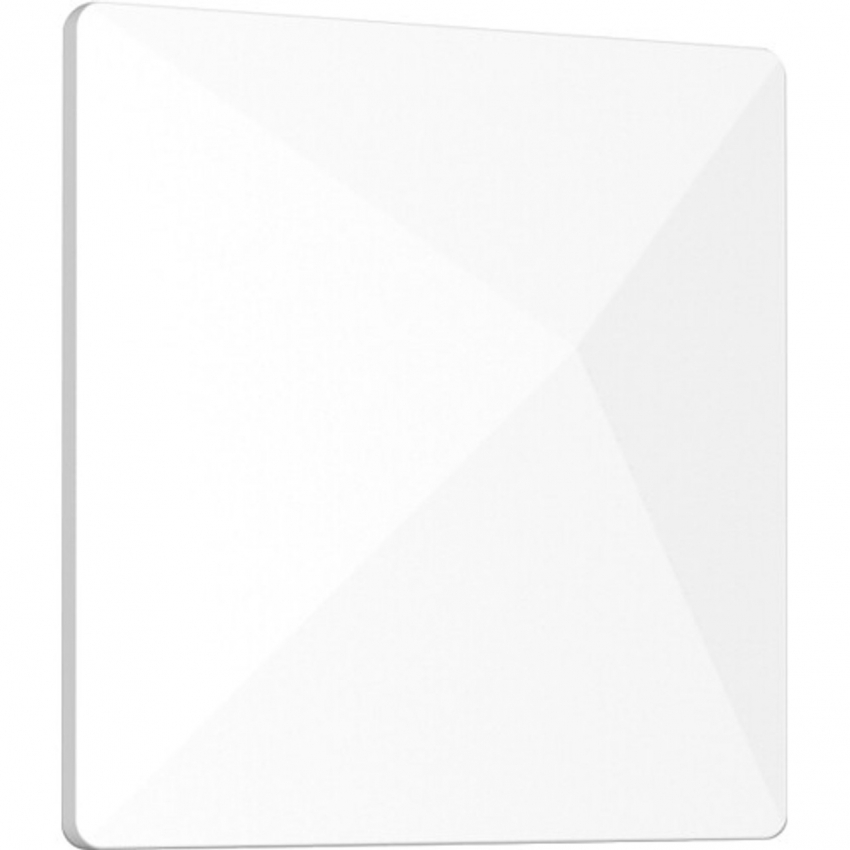

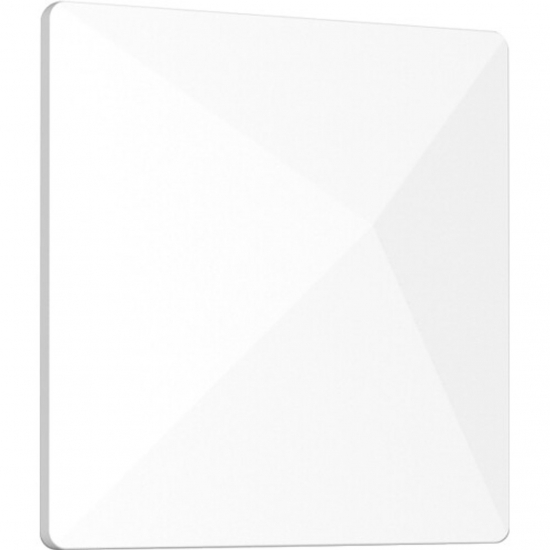

Audio-Technica CP-ARC RF Venue CP Architectural Antenna for Wireless IEM Systems (White, 400 to 800 MHz)

Overview
Get enhanced protection against dropouts and poor sound quality on IEM wireless bodypack receivers with the white RF Venue CP Architectural Antenna. Designed to be discreetly mounted on a wall or ceiling in your music venue, event space, or house of worship, the antenna features a slim enclosure that can be painted to match any interior—for a highly polished and professional look.

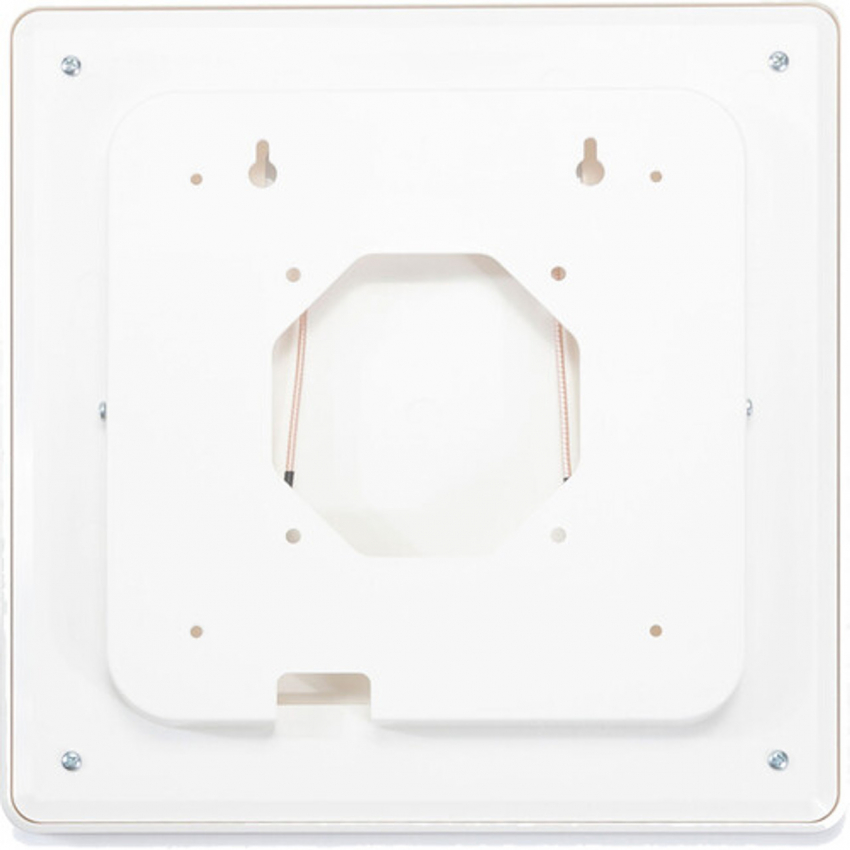

Building on the highly acclaimed CP Beam Antenna, the CP Architectural is a high-performance flood antenna that uses a unique circularly polarized design to provide excellent transmit-signal coverage for IEMs. The antenna installs in minutes using the included wall- and ceiling-mount rear plates that are pre-drilled with multiple mounting-hole options. The rear plate then simply connects to the front plate, secured with the included mounting screws. Just connect the BNC male connector of your in-wall or in-ceiling, coaxial-cable run to the antenna's rear-mounted BNC female connector, and the CP Architectural is ready for use.

Features

  • Better Wireless In-Ear Monitor Reception
  • Music Halls/Venues, Houses of Worship
  • Polished and Professional Look
  • Circularly Polarized Design
  • Easy to Mount on Wall or Ceiling
  • Paint to Match Any Interior
  • Rear-Mounted BNC Connector
  • Ceiling & Wall Mounting Kits Included

In the Box

  • RF Venue CP Architectural Antenna for Wireless IEM Systems (White, 400 to 800 MHz)
  • Ceiling Hardware Mounting Kit
  • Wall Hardware Mounting Kit
  • Limited 1-Year Manufacturer Warranty

Specifications

General
Frequency Range
400 to 800 MHz
Bandwidth
400 MHz
Return Loss
10 dB (Average)
Impedance
50 ohms
Antenna
Pattern Type: Flood
Polarization: RHCP
Beam Width: 120°
Connector
BNC Female
Gain
2.5 dBi (at 500 MHz)

Environmental
Operating Temperature
22 to 72°F / -10 to 40°C

Physical
Mounting
1 x Ceiling Hardware
1 x Wall Hardware
Color
White
Dimensions
11 x 11 x 2" / 280 x 280 x 50 mm
Weight
2 lb / 0.9 kg
