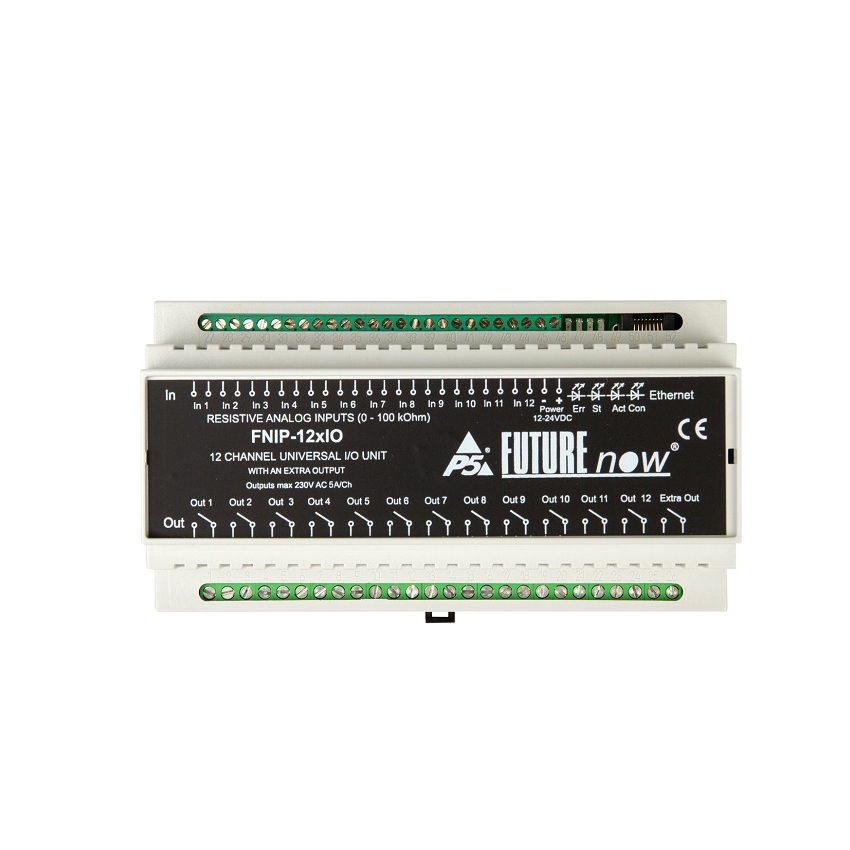

The module now can react to resistance changes on its inputs.
When the resistance crosses the set threshold, the module can
• switch the output
• inform connected devices about the change over TCP/IP
• send a Scene Activation Command
Threshold
The inputs measure resistance in the range of 0-100 kOhm. If the connected
resistance crosses the threshold, the input status will change.
The threshold value shown is to be multiplied by 100 Ohm.
E.g. 50 = 5 kOhm
Inverted input
In normal case the input is considered active if the connected resistance is below
the threshold. Inversion reverses this, i.e. the input considered active if the
resistance is above the threshold.
