HDBaseT Distributionsförstärkare , 1:2 i gruppen AV-Teknik / Signalhantering / Distributionsförstärkare hos Audiovision AB (AT-HDR-CAT2)
HDBaseT Distributionsförstärkare , 1:2
HDBaseT Distributionsförstärkare , 1:2

HDBaseT Distributionsförstärkare , 1:2

Skicka samma signal till 2st skärmar/projektorer, HDR

Varumärke:Atlona
Artnr: AT-HDR-CAT2

Egenskaper

HDBaseT Distributionsförstärkare , 1:2

Produkt:
Företag:
Namn:
Tel.
E-post:
Ditt meddelande:
Jag vill ha en offert Jag vill ha en demo

Produktinformation

Long Distance HDMI to HDBaseT Distribution

Send a single 4K HDR source to two displays at distances up to 130′ (40 m) for video distribution applications including hospitality and retail, commercial reception areas or warehouses, and educational AV systems that require multiple screens.

4K HDR Support

Provides 4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling as well as HDR10, HLG, and Dolby® Vision™ HDR formats for very high, pristine image quality.

Sophisticated Integration Capabilities

Features and capabilities designed to ease integration in commercial AV distribution applications include HDMI pass-through, audio de-embedding, EDID management, CEC display control, RS-232 and IR control extension, remote power for receivers, and HDBaseT link testing.

Unique Features

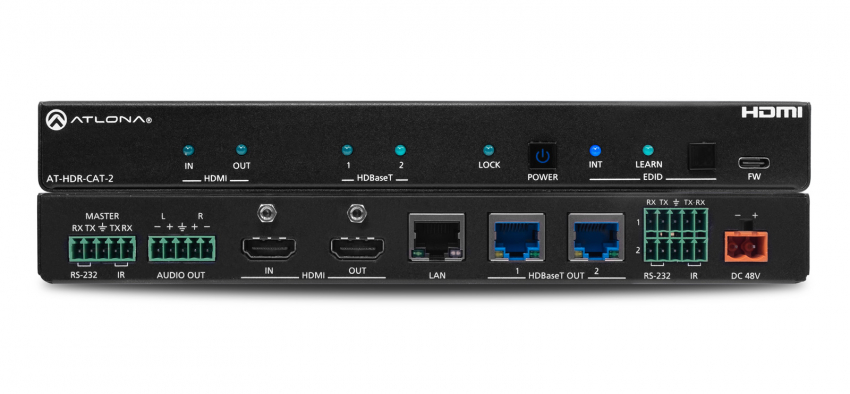

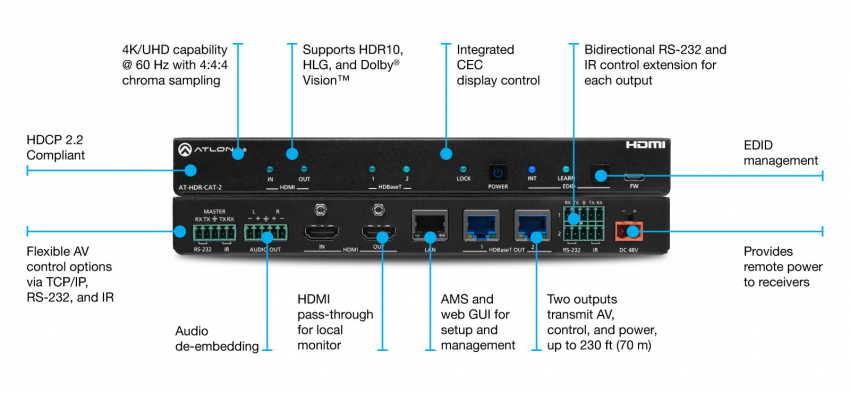

The Atlona AT-HDR-CAT-2 is a high dynamic range (HDR) distribution amplifier with one HDMI® input and two HDBaseT™ outputs. Each output transmits 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling plus support for HDR formats up to 130 ft. (40 m). Also includes integration capabilities designed for commercial AV distribution applications.

4K HDR Support

4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling as well as HDR10, HLG, and Dolby® Vision™ HDR formats.

Long Distance Extension

HDBaseT outputs extend 4K/60 HDR up to 130 feet (40 meters) or 1080p up to 230 feet (70 meters).

Display Control

CEC display control sends display power on/off commands over HDBaseT using the power button, IP, or RS-232.

Audio De-embedding

De-embed HDMI audio to a balanced analog output with volume control for integration with a separate audio system


Tillbehör
HDBaseT-mottagare HDR (70m)
Mottagare med RS232 och IR, HDR 4k60 4:4:4
