HDBaseT Extenderkit (70m)
HDBaseT Extenderkit (70m)
HDBaseT Extenderkit (70m)

HDBaseT Extenderkit (70m)

4K/60Hz 4:2:0, PoE, EDID Filtering, RS-232 & IR

Varumärke:Atlona
Artnr: AT-AVA-EX70C-KIT

Egenskaper

Maxlängd 1080P: 70 M
Maxlängd 4K/UHD: 40 M
HDR: 4K/24 4:2:0
Kontroll: IR , RS-232
PoE: Ja
HDCP: 2.2
Enhet: Kit
Mått: 2,3 x 10,7 x 7,6 cm
Vikt: (RX) 0.25 Kg , (TX) 0.25 Kg

HDBaseT Extenderkit (70m)

Produkt:
Företag:
Namn:
Tel.
E-post:
Ditt meddelande:
Jag vill ha en offert Jag vill ha en demo

Produktinformation

AT-AVA-EX70C-KIT

  • Supports resolutions up to 4K/UHD 60Hz 4:2:0
  • Extend 4K up to 40 meters (130 feet) with Category 6A/7
  • Extends bidirectional RS-232 and IR control signals
  • Remote power, transmitter powers receiver over HDBaseT
  • EDID filtering prevents extension of unsupported resolutions
  • HDBaseT link test verifies cable, termination, and link quality
  • HDCP 2.2 compliant

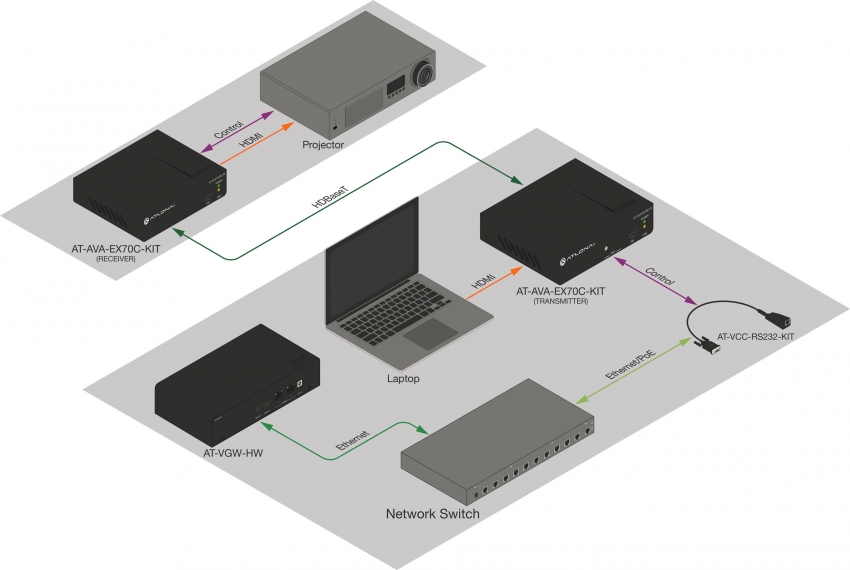

The Atlona AT-AVA-EX70C-KIT is an Avance Series HDBaseT extender kit that supports control pass-through and remote power capability. The kit transmits 4K/UHD 60Hz 4:2:0 video up to 130 feet (40 meters) or 1080p 60Hz video up to 230 feet (70 meters). In addition to video with embedded multi-channel audio, RS-232 and IR control signals, and remote power from the transmitter to the receiver are supported on the single Category 6A/7 cable. EDID filtering and clock stretching ensure video transmission integrity and stable connections. Integrated HDBaseT link test allows quick verification of cable, termination, and link quality. The AT-AVA-EX70C-KIT includes both transmitter and receiver endpoints. Compact enclosures and included brackets allow the devices to be surface mounted in furniture or behind a display. The AT-AVA-EX70C-KIT delivers a cost-effective solution for extension of video, audio, control, and receiver power at resolutions up to 4K/UHD.

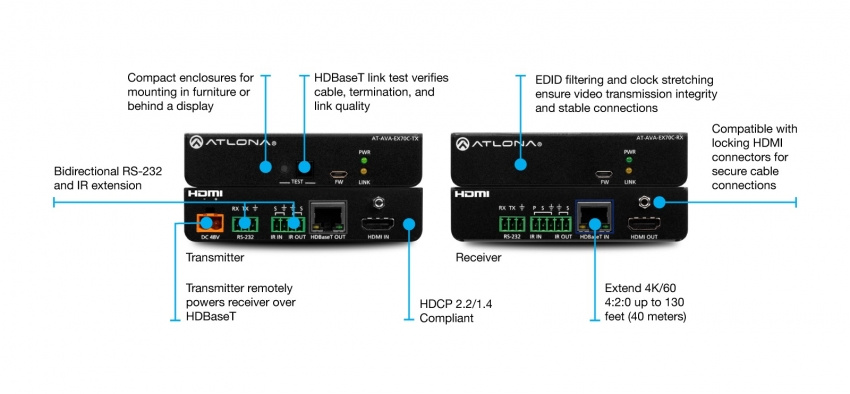

  • Extends 4K/UHD 60Hz 4:2:0 up to 40 meters (130 feet) with Category 6A/7
  • Extends 1080p 60Hz up to 70 meters (230 feet) with Category 6A/7
  • Extends bidirectional RS-232 and IR control signals over HDBaseT
  • Remote power allows the transmitter to supply power to the receiver over HDBaseT
  • EDID filtering prevents extension of unsupported resolutions to increase the integrity of video transmission
  • HDMI Clock stretching provides more stable connections with problematic HDMI sources
  • HDBaseT link test verifies cable, termination, and link quality for more reliable installations
  • Compliant with HDCP 2.2, the latest specification for passing protected content between devices
  • Front panel Power and Link status LEDs
  • Rear panel connections simplify wire management and save installation time
  • Front panel USB port for firmware updates
  • Multi-channel audio compliant for all PCM, Dolby®, and DTS® formats
  • Compact enclosures can be mounted in furniture, behind a display, or above a projector

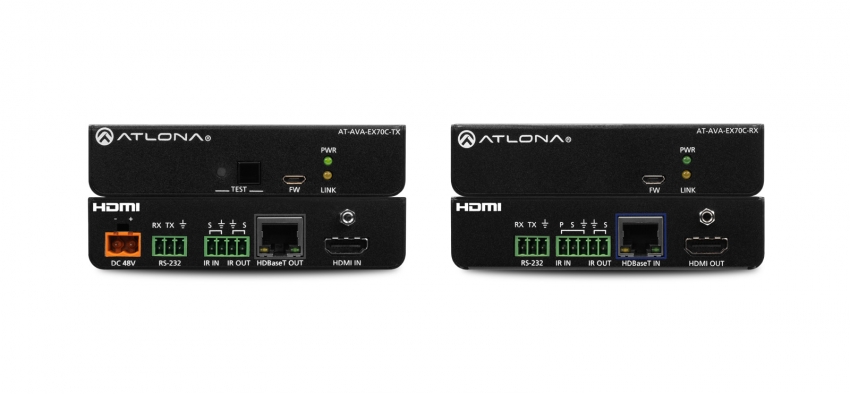

  • Kit includes transmitter, receiver, power supply, wall/table mounting brackets, and installation guide
  • Award-winning 10 year limited product warranty ensures long-term product reliability and performance
