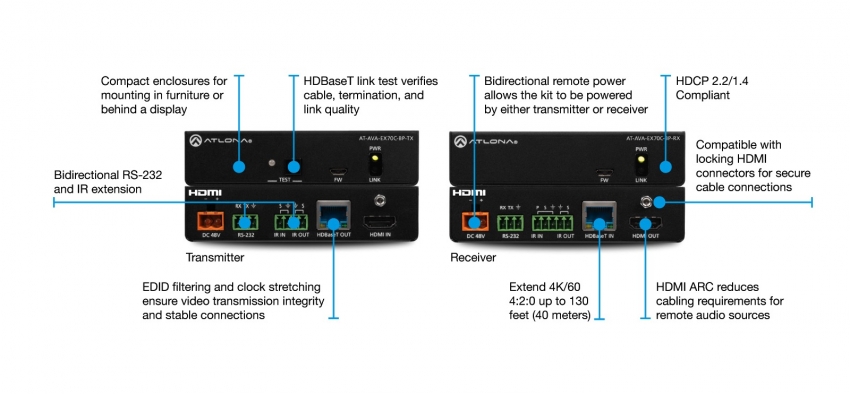

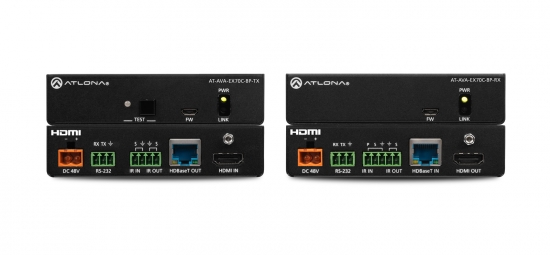

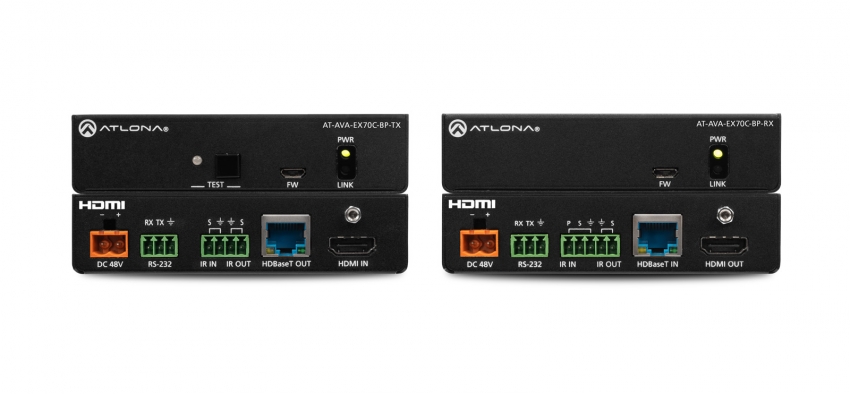

The Atlona AT-AVA-EX70C-BP-KIT is an Avance Series HDBaseT extender kit that supports control pass-through and bidirectional remote power capabilities. The kit transmits 4K/UHD 60Hz 4:2:0 video up to 130 feet (40 meters) or 1080p 60Hz video up to 230 feet (70 meters). In addition to video with embedded multi-channel audio, RS-232 and IR control signals, and remote powering by either the transmitter or the receiver are supported on the single Category 6A/7 cable. EDID filtering and clock stretching ensure video transmission integrity and stable connections. Integrated HDBaseT link test allows quick verification of cable, termination, and link quality. Audio Return Channel (ARC) is available on the HDMI connections to minimize cabling in audio return applications. The AT-AVA-EX70C-BP-KIT includes both transmitter and receiver endpoints. Compact enclosures and included brackets allow the devices to be surface mounted in furniture or behind a display. The AT-AVA-EX70C-BP-KIT delivers a cost-effective solution for extension of video, audio, control, and bidirectional power at resolutions up to 4K/UHD.
- Extends 4K/UHD 60Hz 4:2:0 up to 40 meters (130 feet) with Category 6A/7
- Extends 1080p 60Hz up to 70 meters (230 feet) with Category 6A/7
- Extends bidirectional RS-232 and IR control signals over HDBaseT
- Bidirectional remote power allows the kit to be powered by either the transmitter or the receiver over HDBaseT
- HDMI Audio Return Channel (ARC) minimizes cabling in applications where an audio return channel from the display is required
- EDID filtering prevents extension of unsupported resolutions to increase the integrity of video transmission
- HDMI Clock stretching provides more stable connections with problematic HDMI sources
- HDBaseT link test verifies cable, termination, and link quality for more reliable installations
- Compliant with HDCP 2.2, the latest specification for passing protected content between devices
- Front panel Power and Link status LEDs
- Rear panel connections simplify wire management and save installation time
- Front panel USB port for firmware updates
- Multi-channel audio compliant for all PCM, Dolby®, and DTS® formats
- Compact enclosures can be mounted in furniture, behind a display, or above a projector
- Kit includes transmitter, receiver, power supply, wall/table mounting brackets, and installation guide
- Award-winning 10 year limited product warranty ensures long-term product reliability and performance
