HDBaseT Extenderkit HDR (100m) i gruppen Signalhantering / Extenders / HDMI hos Audiovision AB (AT-HDR-EX-100CEA-KIT)
HDBaseT Extenderkit HDR (100m)
HDBaseT Extenderkit HDR (100m)
HDBaseT Extenderkit HDR (100m)

HDBaseT Extenderkit HDR (100m)

4K/60Hz 4:4:4 HDR Extenderkitet för HDMI som kan allt! PoE, RS-232, IR, Ethernet och ARC
Antal:
Varumärke:Atlona
Artnr: AT-HDR-EX-100CEA-KIT

Egenskaper

Maxlängd 1080P:100 M
Maxlängd 4K/UHD:100 M
HDR:4K/60Hz 4:4:4
Kontroll:IR, Ethernet, RS-232
Ethernet:Ja
PoE:Ja
HDCP:2.2
Strömförsörjning:Sändare
Enhet:Kit
Mått:(TX) 2.6 x 14.6 x 9.5 cm, (RX) 2.6 x 14.6 x 9.7 cm
Vikt:(TX) 0.4 Kg, (RX) 0.39 Kg

Produktinformation

Supports HDR and 4K/60 4:4:4 video content.

The HDR-EX-100CEA-KIT is cost-effective and ideal for applications requiring the latest as well as emerging 4K/UHD and HDR sources and displays. It is compatible with all video resolutions, audio formats, and color space formats supported in the HDMI 2.0b specification, plus the ability to pass metadata for HDR content. The HDR-EX-100CEA-KIT supports 4K HDR10 @ 60 Hz and Dolby Vision @ 30 Hz.

An innovative yet practical solution for 4K HDR over HDBaseT.

HDR and 4K/60 4:4:4 video content requires data rates exceeding 10 Gbps and up to 18 Gbps – a significant challenge for extending signals over HDBaseT. The HDR-EX-100CEA-KIT provides the answer with visually lossless video compression technology that applies extremely light compression with no latency. This enables transmission of HDR and 4K/60 4:4:4 over a single category cable while ensuring very high, pristine image quality.

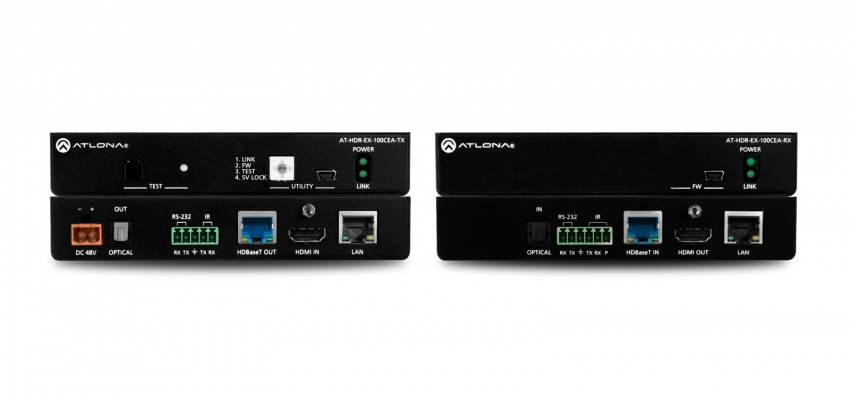

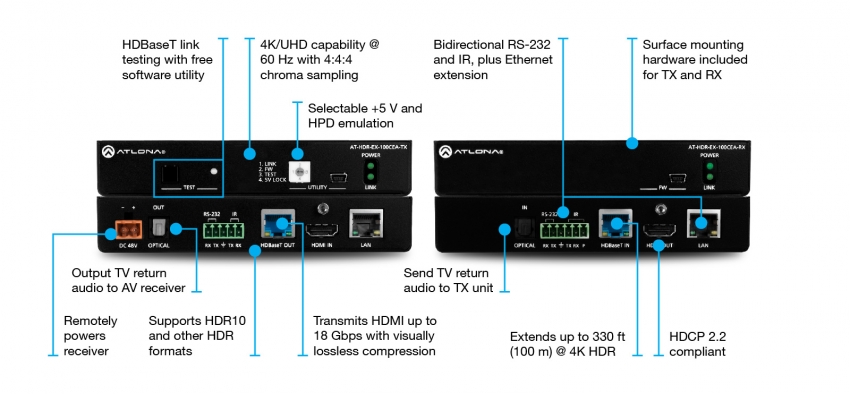

The Atlona AT-HDR-EX-100CEA-KIT is an HDBaseT transmitter/receiver kit for high dynamic range (HDR) formats. The kit is HDCP 2.2 compliant and supports 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps. The HDR-EX-100CEA-KIT provides transmission of HDMI, Ethernet pass-through, and bidirectional IR and RS-232 control signals up to 330 feet (100 meters) over CAT6a/7 cable. This extender kit features visually lossless compression with no latency to enable HDR and 4K/60 4:4:4 video signal extension over HDBaseT. For additional integration convenience, the transmitter remotely powers the receiver through Power over Ethernet (PoE). The HDR-EX-100CEA-KIT can transmit digital audio from a television back to an AV receiver, via a dedicated audio pathway.

The HDR-EX-100CEA-KIT is ideal for residential and commercial applications with the latest as well as emerging 4K/UHD and HDR sources and displays. It is compatible with all video resolutions, audio formats, and color space formats supported in the HDMI 2.0b specification, plus the ability to pass metadata for HDR content. The HDR-EX-100CEA-KIT includes Atlona’s award-winning 10 year limited product warranty and customer support services, so that integrators can specify, purchase, and install with confidence.

Applications

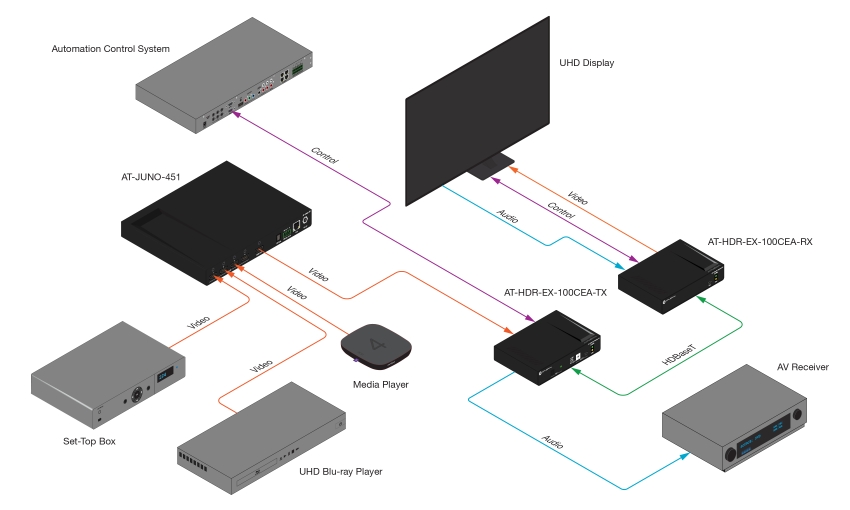

  • Residential installations – The HDR-EX-100CEA-KIT is designed for AV systems with the latest UHD and HDR sources such as Ultra HD Blu-ray players, plus compatible televisions and projectors.
  • TV showrooms – The HDR-EX-100CEA-KIT can be used for reliable content distribution to televisions, to properly demonstrate the quality and appeal of 4K and HDR programming.
  • Professional AV applications – Atlona 4K HDR products are ideal for full-motion, highly detailed 4K graphics presentations for visualization, 3D renderings, simulations, and more.
