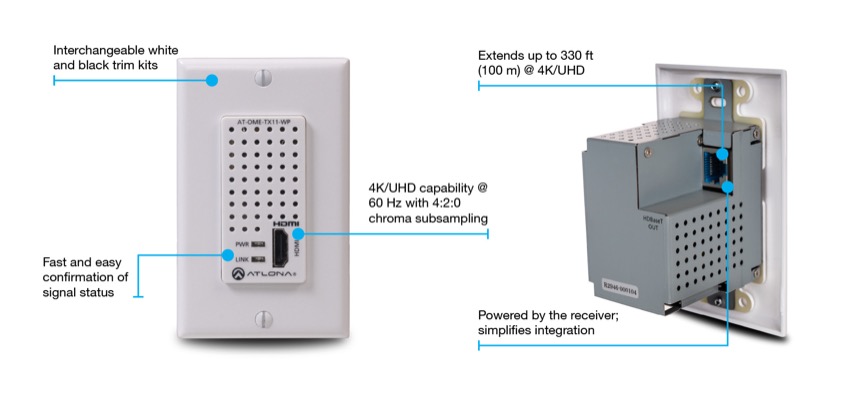

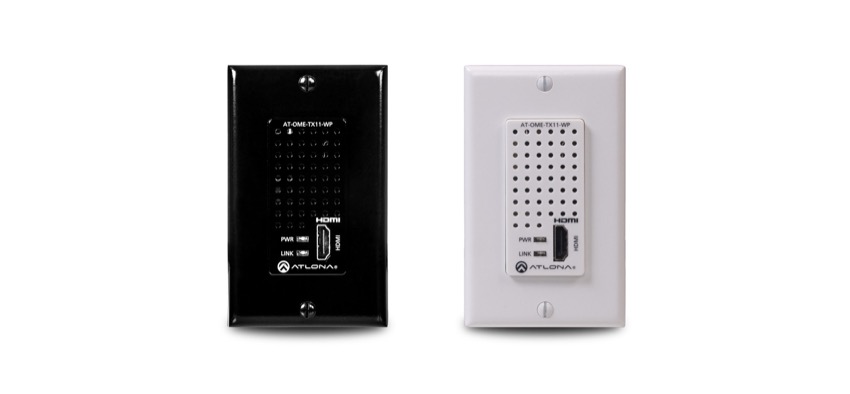

- US one-gang enclosure for wallplate openings – interchangeable black or white trim kits
- HDBaseTTM transmitter for HDMI® video and power
- 4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling
- HDCP 2.2 compliant
- Remote powering over HDBaseT
The AT-OME-TX11-WP lets you bring AV interfacing to a wall location that’s convenient for a meeting participant.
When placed into a conspicuous location, the OME-TX11-WP invites the opportunity for someone to plug in and deliver a presentation.
The Atlona AT-OME-TX11-WP is an HDBaseT transmitter for video up to 4K/60 4:2:0, plus embedded audio over distances up to 330 feet (100 meters). It features a US one-gang, wallplate form factor, and includes interchangeable black and white wallplates and faceplates.

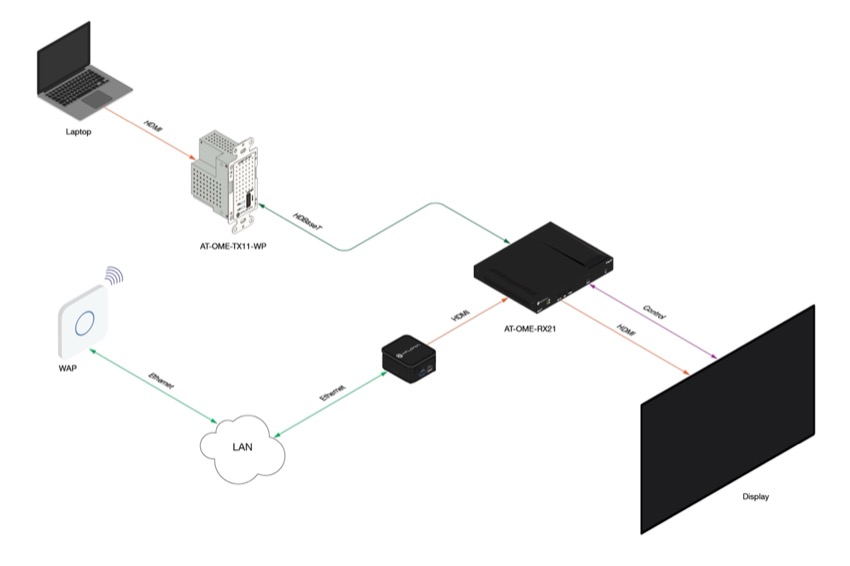

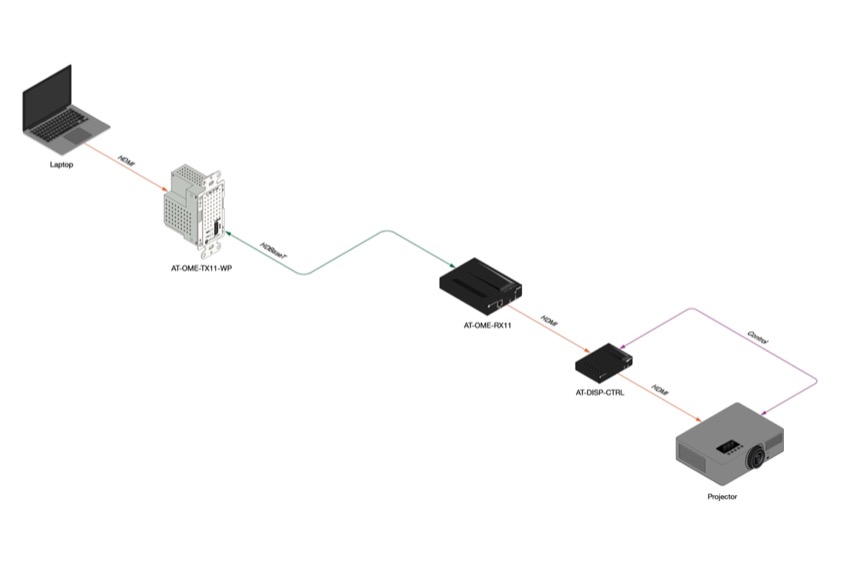

This transmitter is ideal for use with Omega Series receivers as well as switchers with HDBaseT inputs.
The OME-TX11-WP incorporates many popular integration convenience features, while delivering excellent performance and value for 4K presentation applications. The OME-TX11-WP can be remotely powered by an Omega Series receiver or compatible switcher.
- Allows inconspicuous installation on a wall, in furniture, or in a floor box. Includes black and white wallplates and faceplates.
- Meets end user requirements for conveniently accessible yet discreet AV connectivity
- Transmits 4K/UHD video up to 330 feet (100 meters) with CAT6/6a/7 cable, or up to 295 feet (90 meters) using CAT5e cable
- Uses easy-to-integrate category cable for low-cost, reliable system installation
- Compatible with sources up to 4K/60 4:2:0 and 4K/30 4:4:4
- Supports HDMI data rates up to 10 Gbps from PCs, media players, and Ultra HD Blu-ray players
- Adheres to High-bandwidth Digital Content Protection* specification
- Allows protected content stream to pass between authenticated devices
- * HDBaseT receiver or switcher must also be HDCP 2.2 compliant.
- Industry standard IEEE 802.3af PoE is supplied by an Atlona receiver or switcher over HDBaseT
- Allows convenient wall, floor box, or furniture installation without the need for local AC power
- Passes through multi-channel audio formats
- Supports PCM, Dolby® Digital, Dolby Digital Plus™, Dolby TrueHD, Dolby Atmos®, DTS® Digital Surround™, DTS-HD Master Audio™, and DTS:X®
