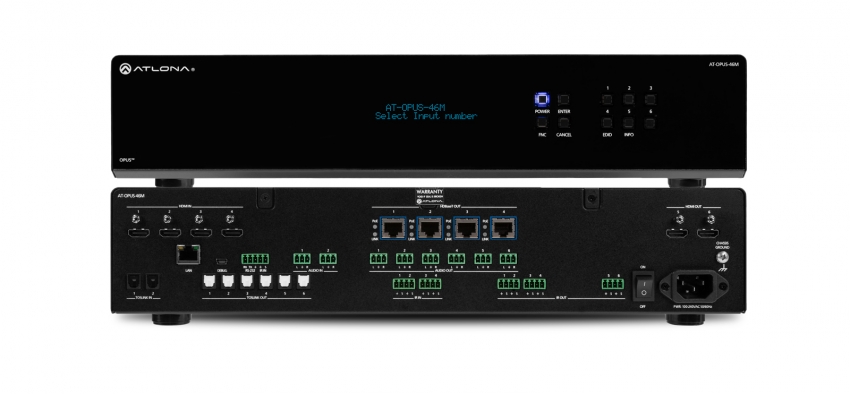

HDMI/HDBaseT Matrix 4x6 (HDR)
HDMI/HDBaseT Matrix 4x6 (HDR)

HDMI/HDBaseT Matrix 4x6 (HDR)

HDMI/HDBaseT Matrix 4x6, 4K HDR, RS-232, Ethernet, IR, PoE, HDCP 2.2, 100m

Varumärke:Atlona
Artnr: AT-OPUS-46M

Egenskaper

Ingångar HDMI: 4 st
Utgångar HDBaseT: 4 st
Utgångar HDMI: 2 st
HDMI Version: 2.0
Max. upplösning: 2560x2048 , 4096x2160@60Hz
HDR: Ja
Scaler: Nej
RS-232: Ja
IR: Ja
ARC: Ja
Ethernet: Ja
HDCP: 2.2
Vikt: 5.4 Kg
Yttermått bredd: 438 mm
Yttermått djup: 299.5 mm
Yttermått höjd: 98.8 mm

HDMI/HDBaseT Matrix 4x6 (HDR)

Produkt:
Företag:
Namn:
Tel.
E-post:
Ditt meddelande:
Jag vill ha en offert Jag vill ha en demo

Produktinformation

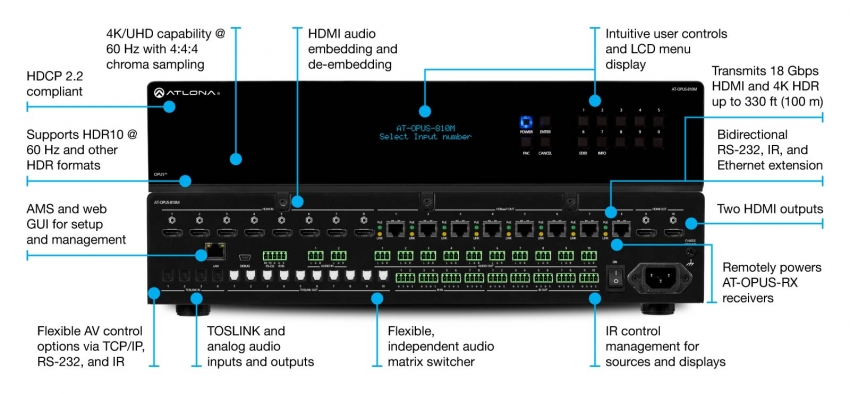

The Atlona Opus Series of HDMI to HDBaseT matrix switchers deliver high performance distribution and extension of 4K HDR for residential as well as commercial applications. The Opus Series offers performance, reliability, and powerful control and audio system integration features. See below for more information.

The Atlona AT-OPUS-46M, AT-OPUS-68M, and AT-OPUS-810M are part of the Opus™ Series of HDMI to HDBaseT matrix switchers for high dynamic range (HDR) formats. These 4×6, 6×8, and 8×10 matrix switchers are HDCP 2.2 compliant and support 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps. The Opus Series enables flexible routing to HDBaseT outputs plus two additional HDMI outputs, and is compatible with the Atlona AT-OPUS-RX receiver or AT-JUNO-451-HDBT switcher for transmission of HDMI, Ethernet pass-through, and bidirectional IR and RS-232 control signals up to 330 feet (100 meters) over CAT6a/7 cable. Visually lossless VESA Display Stream Compression (DSC) enables HDR and 4K/60 4:4:4 signal extension over HDBaseT with no latency. Opus matrix switchers are equipped with a comprehensive host of audio and control system integration features, making them ideal for a wide range of residential and commercial applications requiring multi-zone AV distribution.

Advanced AV Signal Distribution and Integrator-Friendly Features

All HDBaseT outputs remotely power OPUS-RX receivers via Power over Ethernet (PoE). These matrix switchers are equipped with a flexible, independent audio matrix switcher for routing de-embedded HDMI input audio, TOSLINK and analog stereo audio sources, plus return audio from a television via the AT-OPUS-RX receiver – to parallel TOSLINK digital and analog audio outputs. Flexible control capability is provided by the supplied IR remote, front panel control, and GUI-based integrated web server, as well as IR integration between locally connected sources, remotedisplays over HDBaseT, and a control system. Opus Series matrix switchers feature a 2U enclosure with ultra-quiet, active cooling to ensure continuous reliability.

Note: Opus matrix switchers de-embed HDMI two-channel PCM audio. For extracting and downmixing Dolby® and DTS® audio, Atlona recommends the AT-HDR-M2C or AT-HDR-M2C-QUAD audio converters


Passar till
HDBaseT-mottagare för Opus Matrix Switchers
4K HDR HDBaseT-mottagare (100m) för Opus Matrix Switchers
