HDMI Matrix 4x4 (HDR)

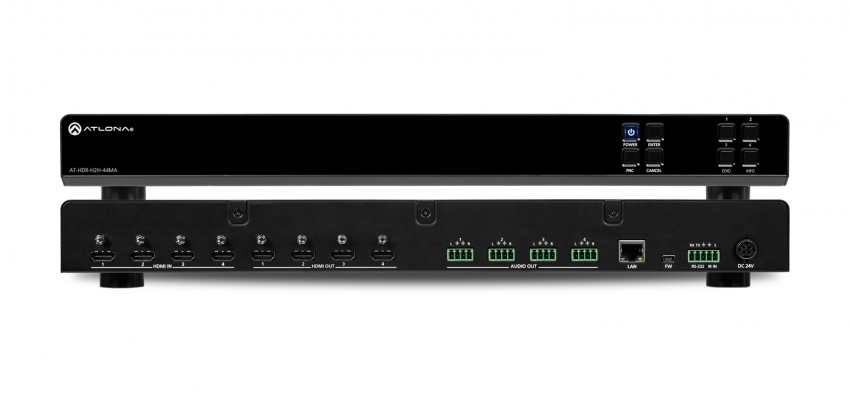

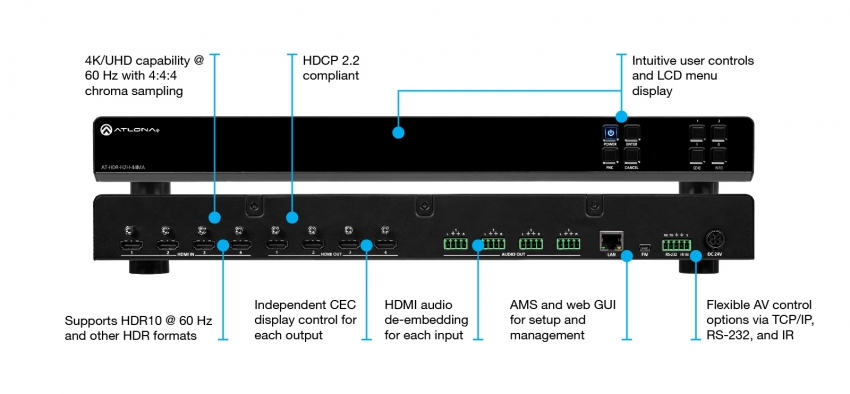

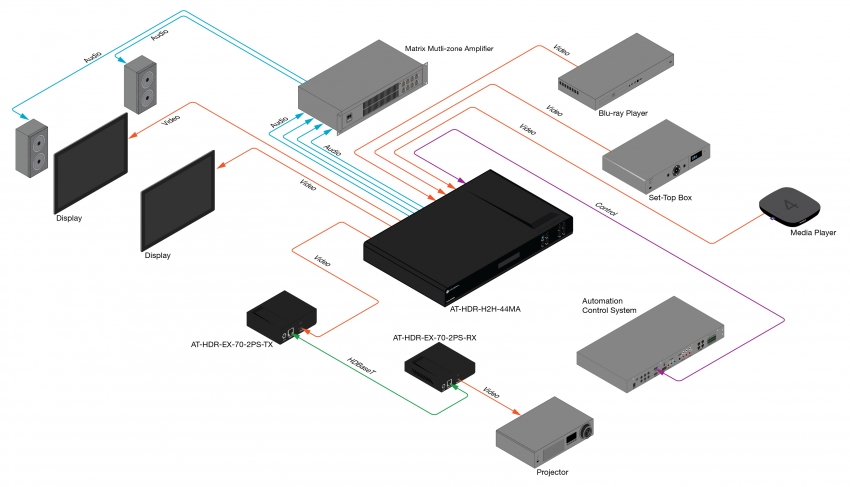

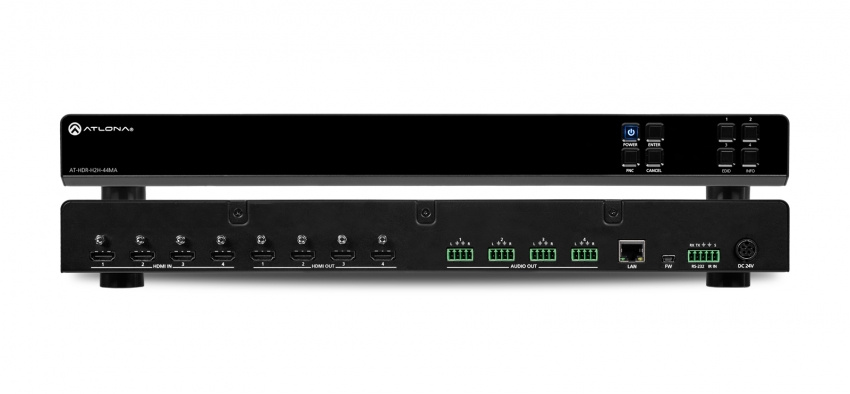

The Atlona AT-HDR-H2H-44MA is a 4×4 HDMI matrix switcher for high dynamic range (HDR) formats. It is HDCP 2.2 compliant and supports 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps. The HDR-H2H-44MA is ideal for residential applications with the latest as well as emerging 4K/UHD and HDR sources and displays. It is compatible with all video resolutions, audio formats, and color space formats supported in the HDMI 2.0b specification, plus the ability to pass metadata for HDR content. The HDR-H2H-44MA includes EDID and HDCP management features, and can send CEC display control independently to each output. An unbalanced analog audio output is paired with each HDMI input for sending de-embedded HDMI audio to a whole-house audio system. The HDR-H2H-44MA can be controlled via Ethernet, RS-232, and IR. A handheld IR remote control is included.

The HDR-H2H-44MA is designed to deliver dependable, pristine-quality image presentations in residential as well as commercial applications. It includes Atlona’s award-winning 10 year limited product warranty and customer support services, so that integrators can specify, purchase, and install with confidence.

Note: The HDR-H2H-44MA de-embeds HDMI two-channel PCM audio. For extracting and downmixing Dolby^® and DTS^® audio, Atlona recommends adding one or more AT-HDR-M2C audio converters.
