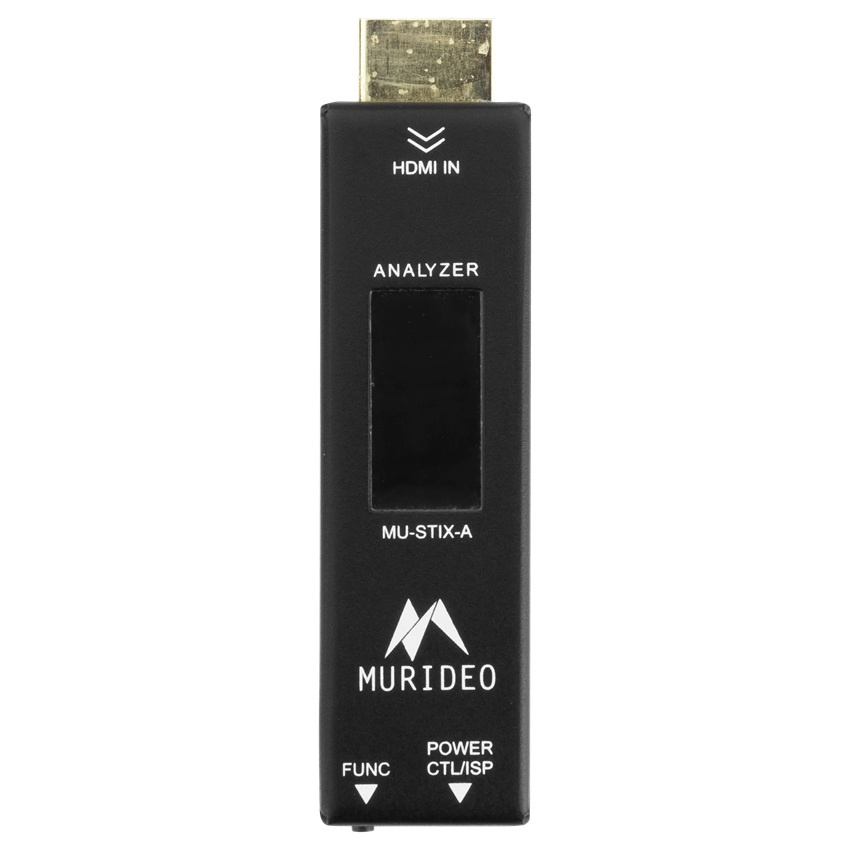

HDMI Signal Analysator

STIX Test Ecosystem Signal Analyzer

• HDMI 2.1b, 8K 48 Gbps (FRL) compliant
• Accepts 720p, 1080p, 4K and 8K signal timings at 8-, 10-, and 12-bit Color Depths, in RGB, 4:2:0, 4:2:2, and 4:4:4 Color Spaces
• Detects signal changes, sync losses, and logs loss time

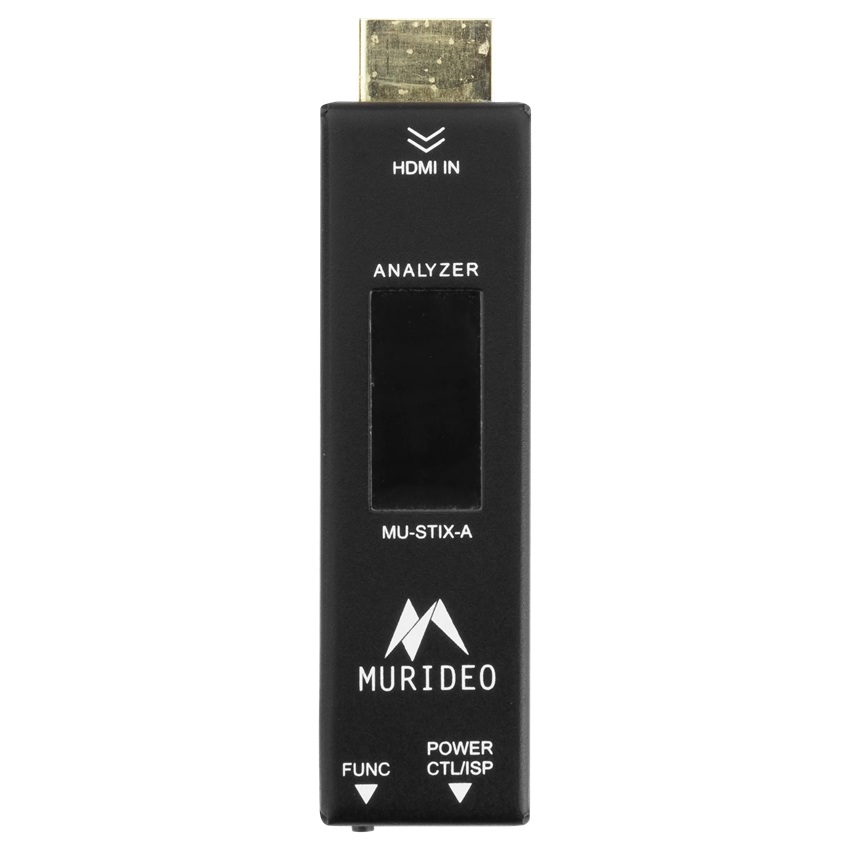

• OLED screen displays incoming video image, source timing, FRL version or TDMS, color space, color depth, and HDCP version
• Displays audio information, including incoming sampling frequency, bit rate size, and audio type
• The STIX Ecosystem is compatible with any brand of HDMI devices

Low-cost, flexible analyzer

Verify common output timings used by HDMI-based entertainment sources at low cost. Sources can be MU-STIX-G generated or in-field from installation source devices. Additional signal-related information is also captured and displayed on the MU-STIX-A OLED screen, or when a part of the STIX Ecosystem, virtually on the MU-STIX-CTL GUI.

Analyzes seven common signal timings

720p and 1080p @ 60 fps, 4K @ 30 fps, 60 fps, and 120 fps, and 8K 30 fps, 60 fps.

Displays additional source information

8-, 10-, and 12-bit color depth is detected and displayed, along with RGB, 4:2:0, 4:2:2, and 4:4:4 color spaces.

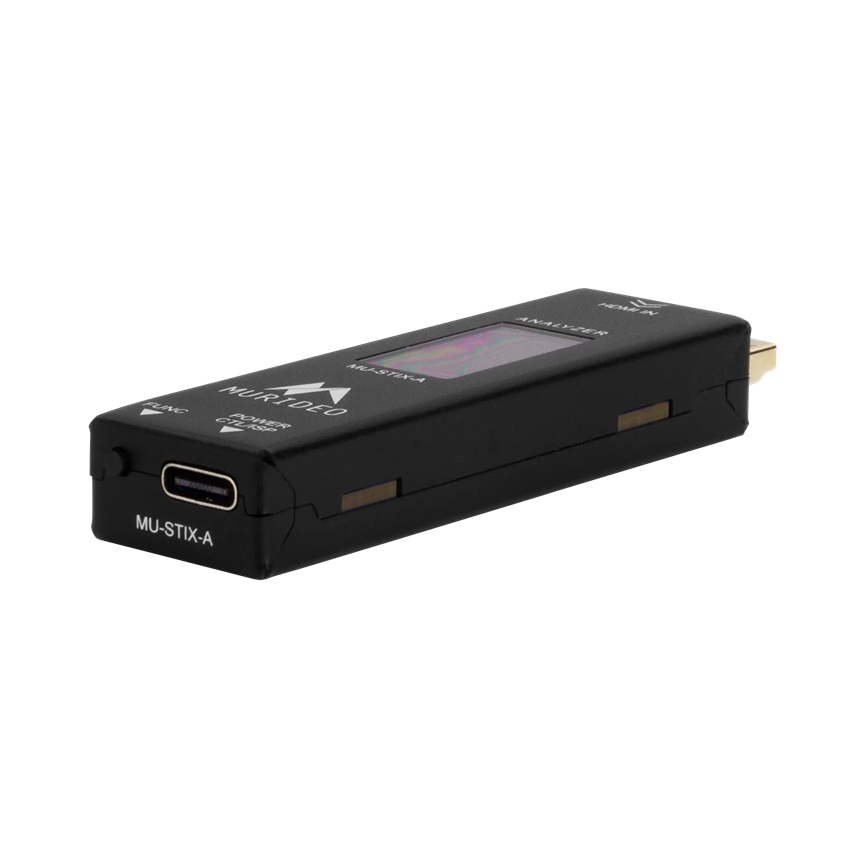

Ultra-compact Form Factor

The HDMI headshell-sized footprint enables easy connectivity in tight spaces after racks are built. It can also be conveniently stored with tools or in a computer bag for any time troubleshooting.

Integral component of the STIX Ecosystem

The STIX Ecosystem allows for asymmetrical scalability for MU-STIX-G deployment in end-to-end testing scenarios. Customized testing protocols may be configured based on the required source count and available MU-STIX-CTL slots.
