HDBaseT-sändare Multiformat (70m) i gruppen AV-Teknik / Signalhantering / Extenders hos Audiovision AB (AT-HDVS-150-TX-PSK)
HDBaseT-sändare Multiformat (70m)
HDBaseT-sändare Multiformat (70m)

HDBaseT-sändare Multiformat (70m)

HDBaseT-sändare med 2st HDMI & 1st VGA+3.5mm. Kopplas direkt till skärm/projektor med HDBaseT-ingång

Varumärke:Atlona
Artnr: AT-HDVS-150-TX-PSK

Egenskaper

Maxlängd 1080P: 70 M
Ingångar: 1 x 3.5mm , 1 x VGA , 2 x HDMI
Automatic Display Control: Nej
Autoväxling: +5v
Ethernet: Ja
PoE: Ja
HDCP: 2.2
AMS: Nej
AMS Go: Nej
Strömförsörjning: Sändare
Enhet: Sändare
Format: Box
Mått: 3.8 x 12.7 x 10.2 cm
Vikt: (TX) 0.29 Kg

HDBaseT-sändare Multiformat (70m)

Produkt:
Företag:
Namn:
Tel.
E-post:
Ditt meddelande:
Jag vill ha en offert Jag vill ha en demo

Produktinformation

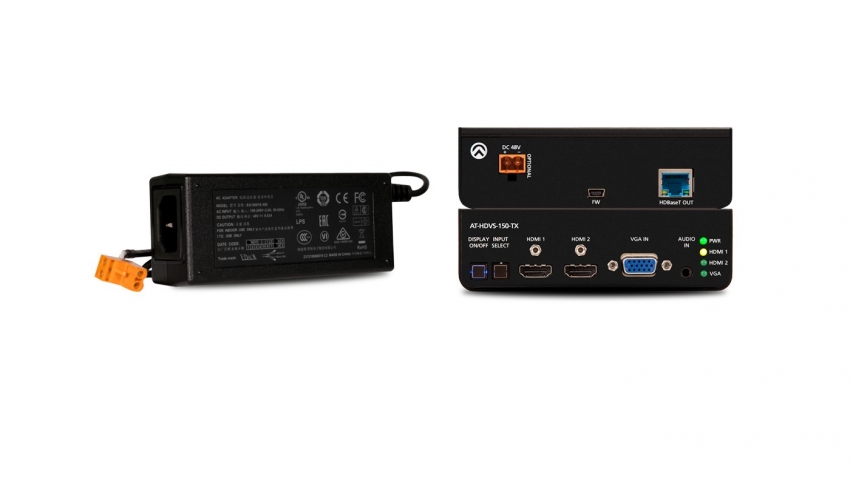

The Atlona AT-HDVS-150-TX-PSK is a 3×1 switcher with two HDMI® inputs, a VGA input with audio, and an HDBaseT output. Video signals up to 1080p, plus embedded audio can be transmitted up to 70 meters, and up to 40 meters for 4K/UHD video @ 60 Hz with 4:2:0 chroma subsampling. The AT-HDVS-150-TX-PSK is identical to the AT-HDVS-150-TX, with the addition of local powering capability and an external power supply. This makes it ideal for extending AV directly to a projector with an HDBaseT input. The AT-HDVS-150-TX-PSK can serve as the central component of a small, automated AV system with the convenience of automatic input selection.

The AT-HDVS-150-TX-PSK combines the benefits of auto-switching and the advantages of HDBaseT signal transmission. It incorporates many popular integration convenience features while delivering excellent value for classrooms, huddle rooms, and meeting spaces.

Surface mounting brackets are provided with the AT-HDVS-150-TX-PSK for easy under-table, furniture, or on-wall installation.

The AT-HDVS-150-TX-PSK automatically selects an input source based on detection of the 5 volt hot plug detect (HPD) signal.

When used in conjunction the the AT-HDVS-150-RX receiver, the AT-HDVS-150-TX-PSK can provide control to a display through RS-232, without the need for a separate control system. This simplifies system design and integration while reducing costs. With automatic display control, the AT-HDVS-150-TX-PSK can trigger a display to power on automatically whenever a laptop or other device is connected. At the end of the presentation, when the presenter disconnects the laptop, the AT-HDVS-150-TX-PSK forces the display to power off. A power button on the front panel can be used for manual on/off control of the display.

Automatic display control is available only when connected to the AT-HDVS-150-RX receiver.

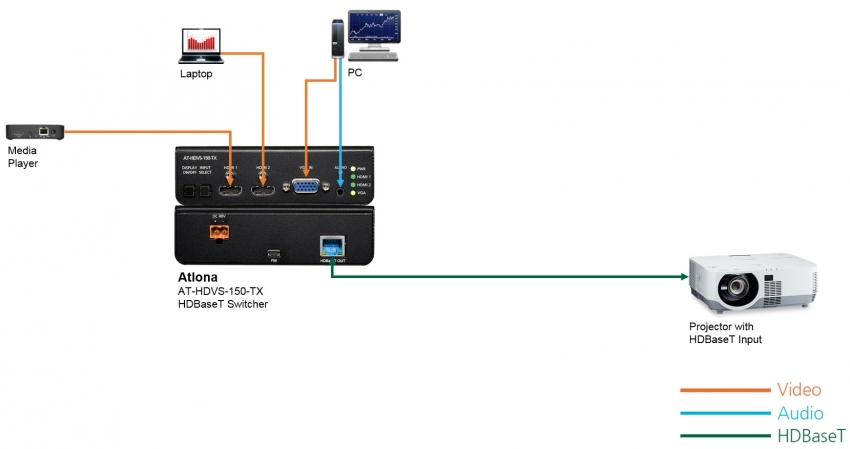

The AT-HDVS-150-TX-PSK is ideal for use in:

- Simple yet complete AV systems with HDBaseT-equipped projectors and flat-panel displays

- Installations in which HDVS-150 Series transmitters are to be used with third-party HDBaseT devices
