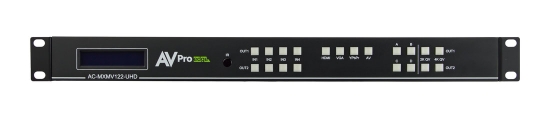

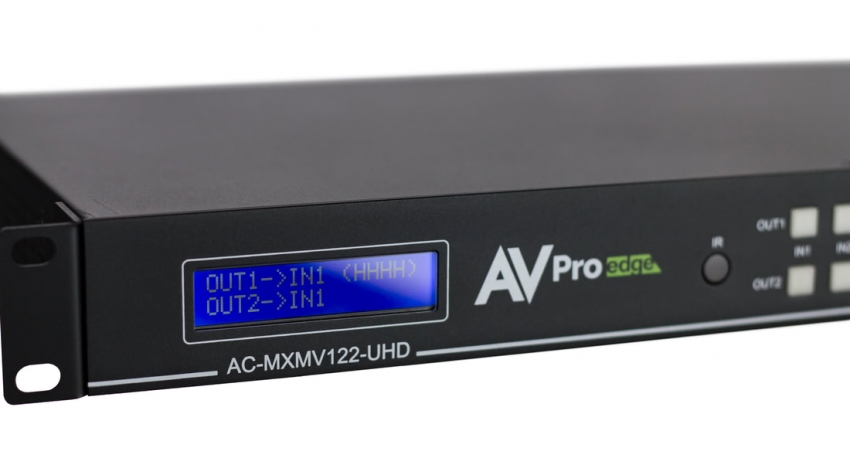

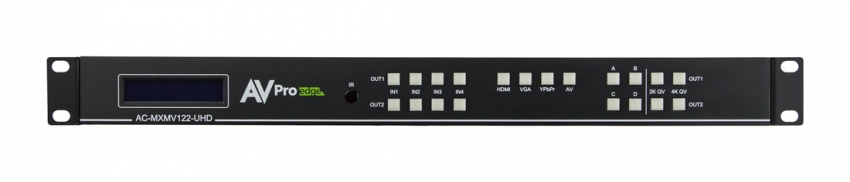

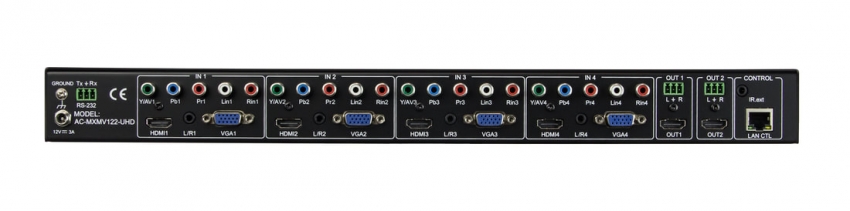

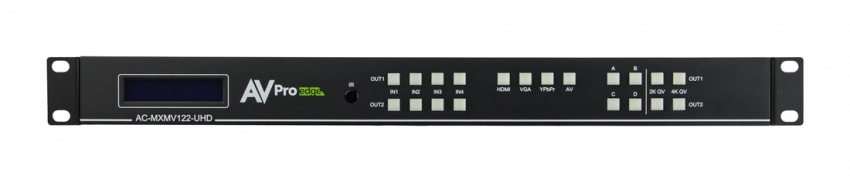

The AC-MXMV122-UHD Video Flux features 16 available (12 at a time) input options including composite, component, VGA, and HDMI. It also has the ability to do 4K Quad View or completely customize-able Multi-view configurations.

The possibilities are endless. This is the ideal solution for high end home installations as well as being the ultimate presentation switch for classrooms, board rooms and training environments.

The Video Flux supports three main modes of operation:

1. 4K UHD Quad Video Processor
2. Full HD Multi-View Video Processor
3. Seamless 4:2 Matrix Switcher

The Video Flux's powerful graphic engine enables the three modes of operation to allow multiple combinations of use.

Seamless Matrix: As a multi-format seamless matrix the product will switch seamlessly between any of the 4 input groups with each group having a preset input. The Video Flux is fitted with two HDMI output ports for showing the Multi-View image on two independently controllable HD/UHD channels simultaneously.

Multi-Format Presentation Matrix: Switching between any of the non preset inputs will not be seamless and the Multi-format Matrix Viewer will be a 12 x 2 multi-format presentation matrix switcher.

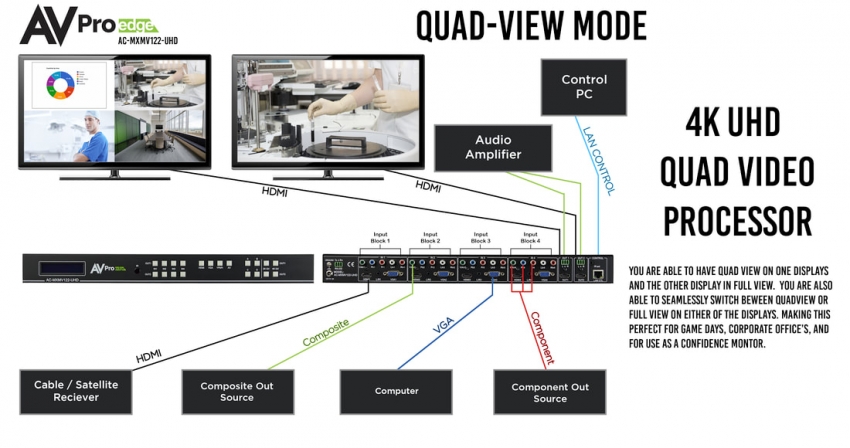

4K Multi-View: With the Video Flux in 4K UHD Quad mode, the HDMI output will include 4 full HD signals that will be visible at the 4K display and each of the four full HD signals is presented pixel for pixel on the 4K UHD display without any down scaling or degradation.

Create: Virtually any combination/layout can be created. This is a powerful Video Graphics Processor in a 1U Rack-mount chassis, with low power consumption of less than 20W. Each Multi-View window parameter is completely customize-able including layer priority, window positions, window size, background transparency, border color and border pixel width. Using Multi-View, POP, transparency, custom boarders you can have any layout you can dream up. Any quadrant can be any size and position, you can layer anyway you would like. These preset configurations can be accessed later at the touch of a button!

Cascade: For more advanced applications the unit can be easily cascaded and its control daisy-chained to create large and easy to control seamless switching or Multi-View system environments of almost any size.
