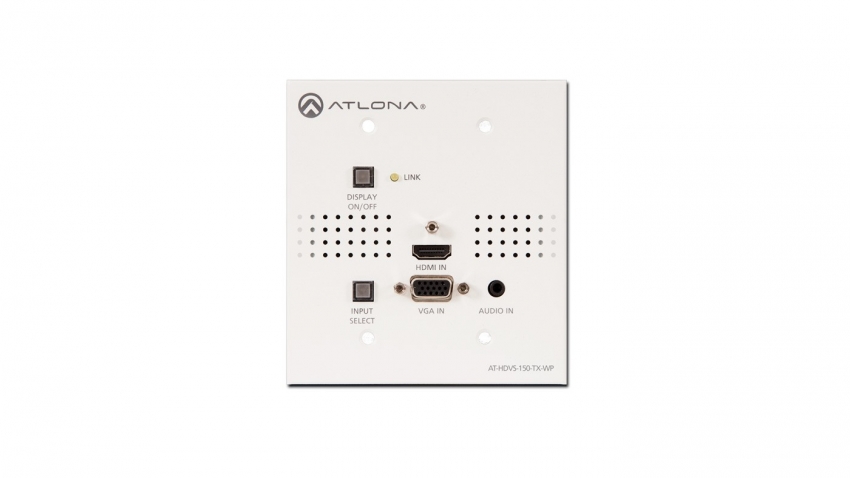

The Atlona AT-HDVS-150-TX-WP features an HDMI input plus VGA input with 3.5mm audio connector and a two-gang, US two-gang wall plate. An optional face plate without buttons is also available (AT-HDVS-TX-WP-NB). The AT-HDVS-150-TX-WP combines the benefits of a switcher with built-in auto-switching and the advantages of long-distance HDBaseT signal extension over a single cable. HDMI signals up to 4K/UHD @ 60Hz with embedded audio, VGA input signals up to 1920×1200 video, and control signals can be extended up to 70 meters. The switcher enables auto display on/off, auto-switching, along with other features. The switcher receives power from the AT-HDVS-150-RX receiver using Power over Ethernet. The AT-HDVS-150-TX-WP fits inside any 40 mm deep two-gang electrical box or mud ring and is ideal for long distance transmission and display control in corporate or educational settings using analog and digital sources.
Automatic Display Control
The AT-HDVS-150-TX-WP, when used in combination with the AT-HDVS-150-RX receiver, allows automatic display control using RS-232 signals. When integrated with a display, the AT-HDVS-150-RX forces the display to power on automatically when a laptop is connected to the AT-HDVS-150-TX-WP. At the end of the presentation, when the presenter disconnects the laptop from the transmitter, the AT-HDVS-150-RX forces the display to power off. Ease of presenter interaction with the system and the savings incurred by auto-display shutdown provide a significant return on investment.
RS-232 – Many displays including projectors, commercial flat panel displays, and some consumer displays can be controlled using the RS-232 signal directly from the switcher. The switcher is able to send commands using RS-232 for automatic display control to compatible displays.Reliable Auto-Switching
Automatic input selection on the AT-HDVS-150-TX-WP uses the 5 volt, hot plug signal in order to detect and automatically switch to the proper input.
The AT-HDVS-150-TX-WP is ideal for:
- Education environments: The wall plate switcher is placed in furniture or is wall-mounted for use with a laptop and document camera. Auto-switching technology selects the active source input and routes the signal via HDBaseT to the switcher downstream.- Corporate environments: The wall plate switcher is wall-mounted near a boardroom conference table or furniture-mounted to allow presenters to easily connect to the system. When integrated with a control system, commands can be sent to activate a display from the front panel of the switcher.
