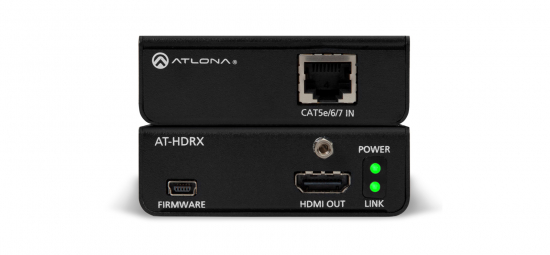

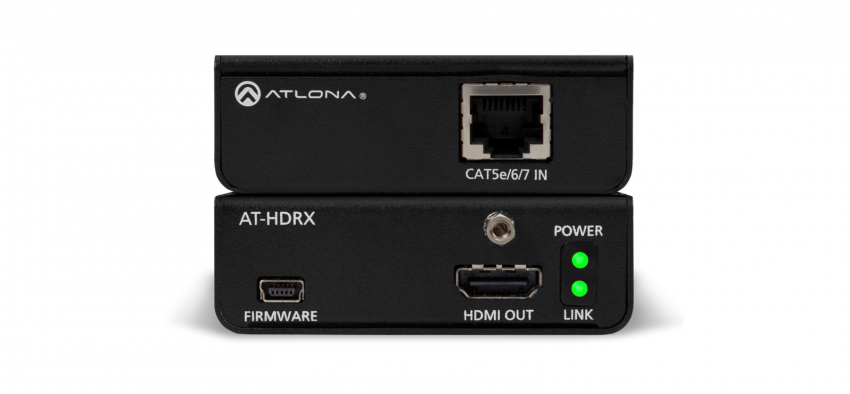

AT-HDRX
The Atlona AT-HDRX is an HDBaseT™ receiver for HDMI transmission over category cable. It provides an economical means of extending 1080p/60Hz video signals with embedded multi-channel audio up to 230 feet (70 meters) and 4K/UHD as far as 130 feet (40 meters). The receiver is remotely powered from compatible Atlona transmitters using Power over Category cable (PoCc) to clean up the installation behind displays. The AT-HDRX is ideal for budget-friendly, long distance transmission to displays in meeting rooms, educational settings, and residential environments when display control isn’t needed.
Features
Long distance HDMI extension
Receives HDMI signals up to 230 ft (70 m) @ 1080P and 130 ft (40 m) @ 4K/UHD using CAT6a/7 cable
Uses easy-to-integrate category cable for low-cost, reliable system installation
HDCP 2.2 compliant
Adheres to latest specification for High-bandwidth Digital Content Protection
Allows protected content stream to pass between devices
Power over Category cable for remote-powering from HDBaseT transmitter
Receives remote power from Atlona HDTX Series transmitters over the same category cable used for AV and control signals
Eliminates local AC outlet required at receiver, cleans up the installation behind displays, plus saves time and integration costs
Field updatable firmware
Front panel USB port provides an easy means for kit upgrades
Ensures long term system return on investment
Front panel power and status LEDs
LED indicators provide Power and Link status information
Provides easy setup and troubleshooting
Multi-channel audio compliant
Supports PCM, Dolby® Digital, Dolby Digital Plus™, Dolby TrueHD, Dolby Atmos®, DTS Digital Surround™, and DTS-HD Master Audio™
Allows any multi-channel audio stream to be used within a professional audio system
CEC pass-through
Allows Consumer Electronics Control commands – if implemented – to pass between devices
Simplified user control of entire system with one remote
Compatible with Atlona HDTX Series transmitters, and PRO3HD Series matrix switchers, and HDCAT Series distribution amplifiers
Suitable for a wide variety of signal distribution applications
Recommended accessories:
AT-HDTX – Transmitter with PoCc, audio, and video
PRO3HD Series – HDMI to HDBaseT Matrix Switcher Series
HDCAT Series – HDMI to HDBaseT Distribution Amplifier Series
Compact, 1 in (25 mm) high and 2.9 in (73 mm) wide enclosure
Easy installation into confined spaces; ensures displays can be flush to the wall
Maintains attractive installations provided by ultra-thin panel displays
