Radically designed with captivating features and exceptionally defined output; this progressive loudspeaker array is an acclaimed piece of armoury within the industry, breaking boundaries to create a brave new standard of audio innovation.

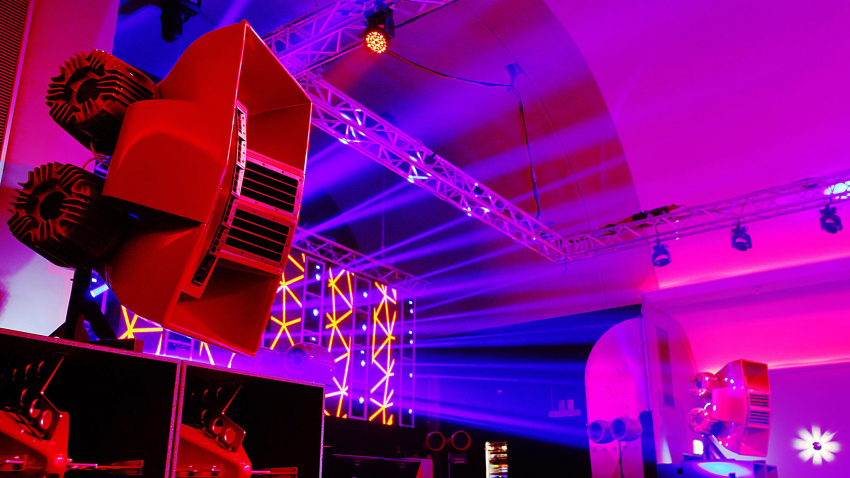

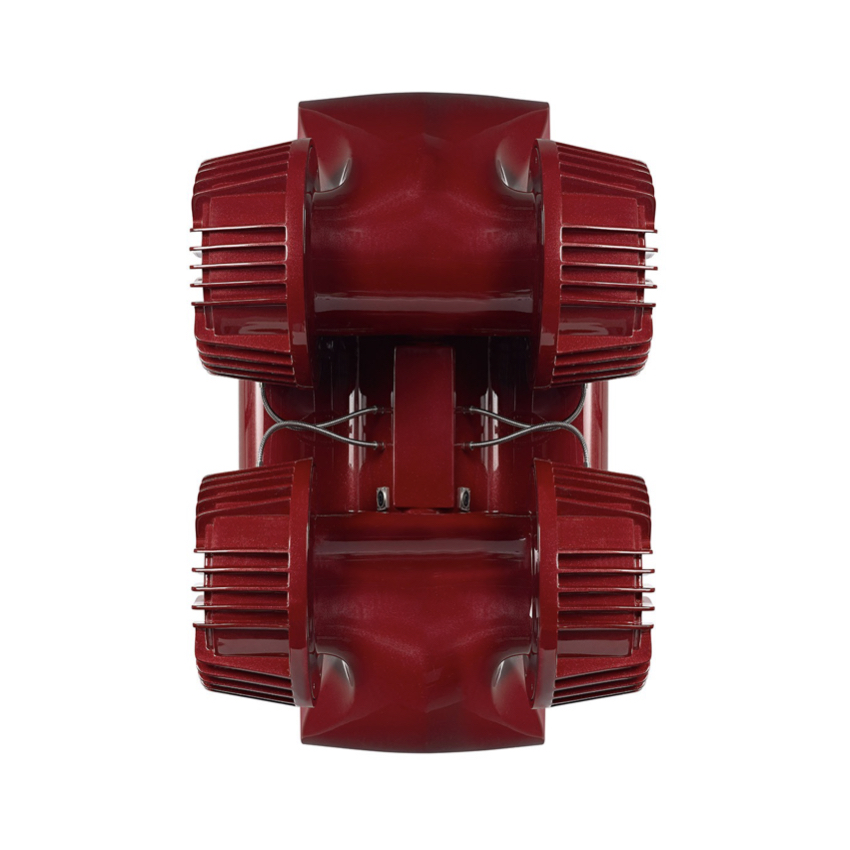

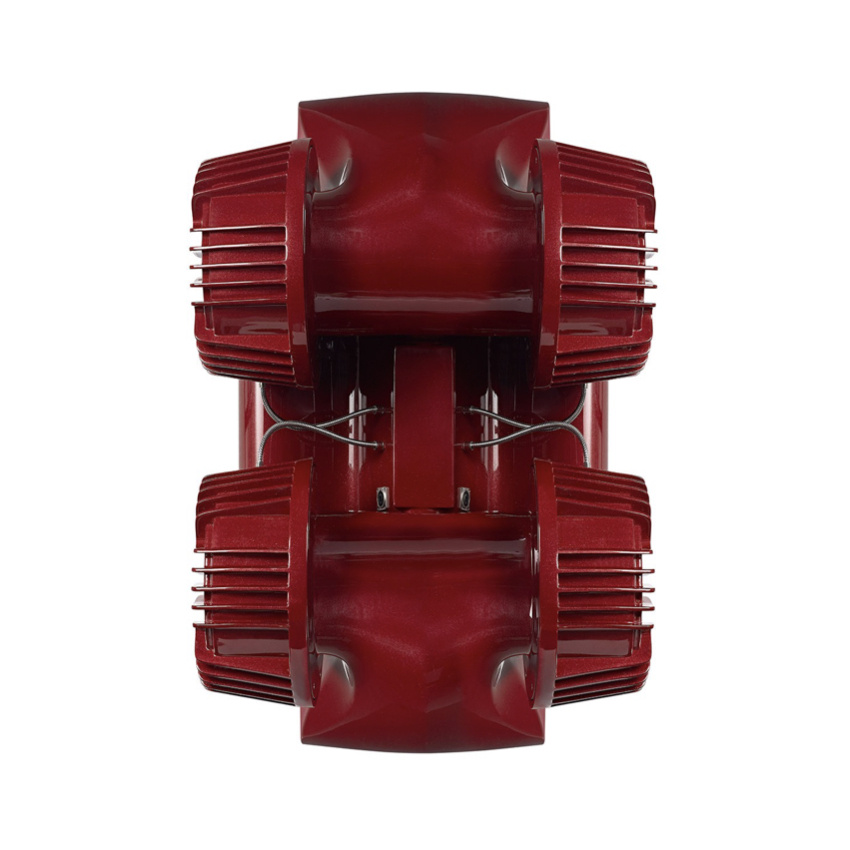

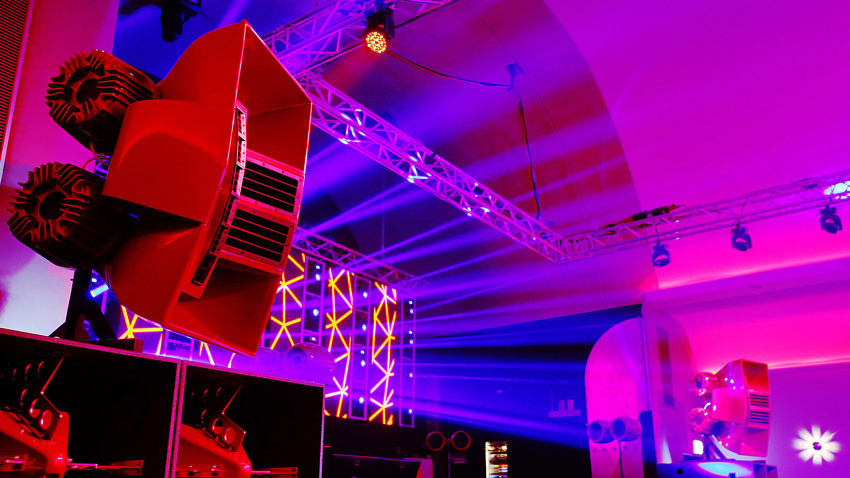

The Air Array is the only mid-high enclosure that provides constant SPL at all distances. The heatsink cooling system reduces power compression levels to result in an exceptionally defined and powerful output; perfect for larger style-led nightclubs.

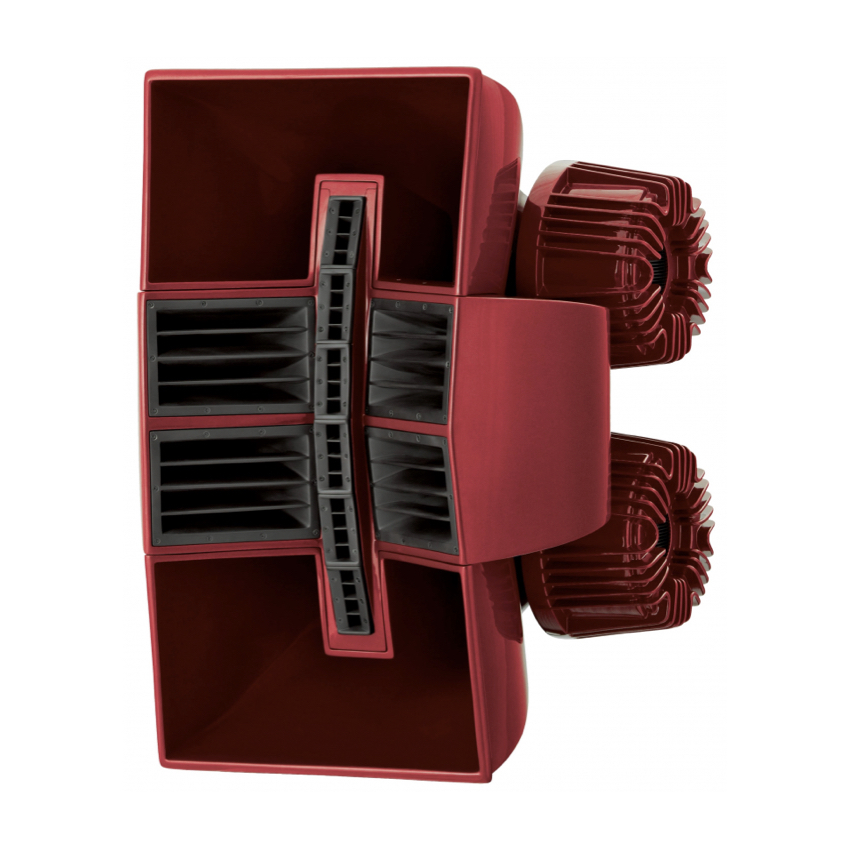

- Three-way bi-amped sculpted loudspeaker array
- Line source radiation pattern
- Low resonance fibreglass composite construction
- 14 discrete proprietary transducers
- Integrated flying and mounting system

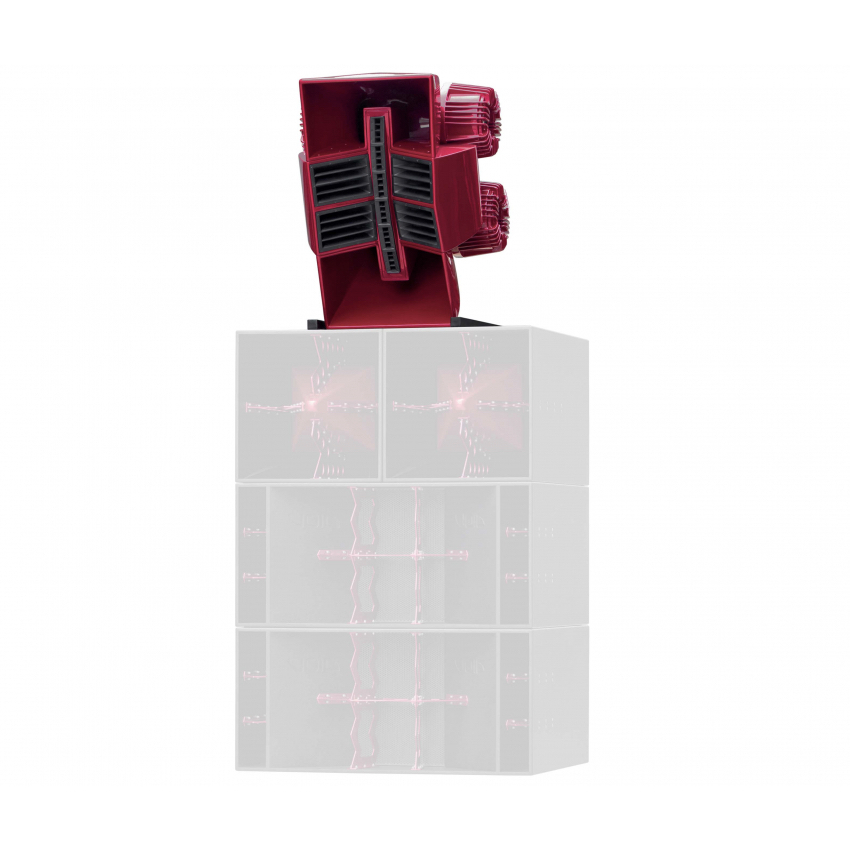

- Ground stack on subwoofers
- Optional floor stand or flying bracket
- Frequency Response: 90 Hz - 26 kHz ±3 dB
- Efficiency1: LF: 111 dB 1W/1m, MF: 114 dB 1W/1m, HF: 116 dB 1W/1m
- Nominal Impedance: LF: 2 x 4 Ω, MF: 2 x 4 Ω, HF: 2 x 5.33 Ω
- Power Handling2: LF: 3600 W AES, MF: 800 W AES, HF: 320 W AES
- Maximum Output3: 146 dB cont, 152 dB peak

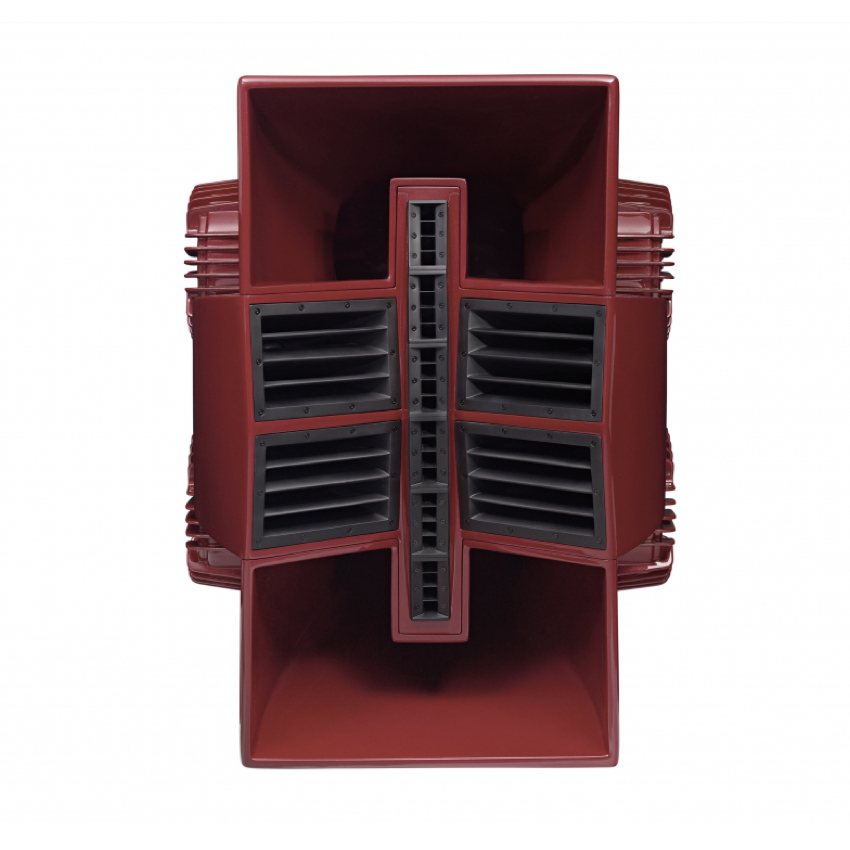

- Driver Configuration: 4 x 12” LF, 4 x 3” MF compression driver, 6 x 1” HF compression driver
- Dispersion: 90°H x 45°V
- Connectors: 2 x 8-pole speakON™ NL8
- Weight: 144.8 kg (319.2 lbs) including stand
- Enclosure: Fibreglass composite
- Mounting: Stack mounted or proprietary suspension system
- Finish: Smooth cellulose
1 Measured in half space 2 AES2 - 1984 compliant 3 Calculated
