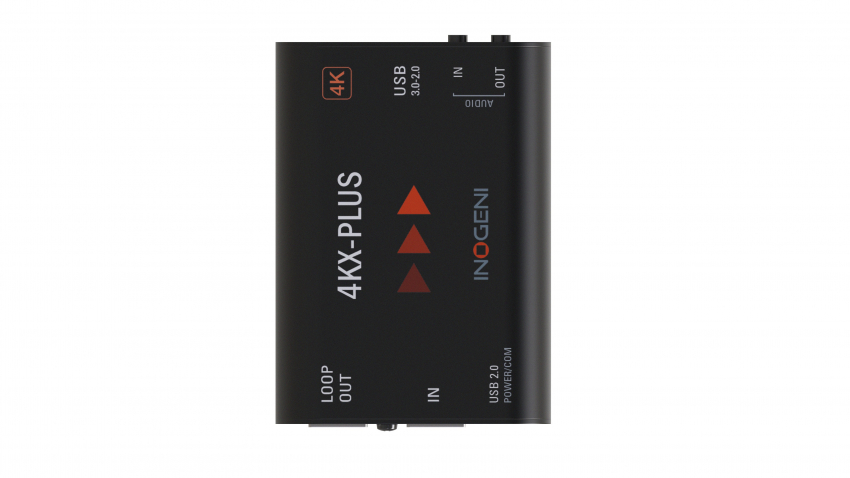

The 4KX-PLUS - Convert Ultra HD to USB 3.0 with an HDMI loop and external power for BYOM applications. It connects your HDMI cameras, video sources or CODECs to your laptop.
Perfectly compatible for Cisco Webex BYOM applications
Compatible with Cisco Webex Room Series
Configure your Cisco conferencing software to use USB cameras and microphones.
- Activate ‘Enable USB mode’ on the Touch 10.
- It works with any virtual meeting room software that enables USB cameras and microphones, such as Microsoft Teams, Zoom, Google Meet or BlueJeans.
- Compatible with USB 2.0 (high quality MJPEG)
- The 4KX-PLUS with Cisco Devices enable multiple displays. The 4K2USB3 works only for one display.

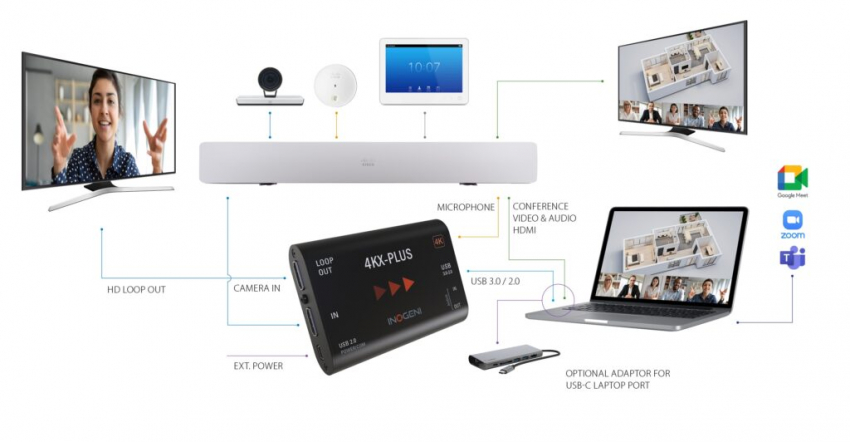

- The external power supply maintains the connection between the Cisco Webex CODEC and the 2nd display, even if the laptop is not connected to the 4KX-PLUS.
The most cost-effective and user-friendly interoperability solution
Rely on a proven technology that captures uncompressed HDMI video and audio from Webex devices, which then converts it to USB 3.0 for a third-party laptop.
- Direct integration of Cisco room equipment (camera, audio and screen)
- Solves the interoperability issue
- Optimizes your assets and avoids additional license fees for Cloud Video Interop (CVI) service and user management
- No driver required
- Compatible with Windows, macOS and Linux laptops
- Easily programed macros in your Webex Room Device. Native Webex implementation available in Q2 CY2022
- Intuitive interface on Webex Touch 10 or Webex Navigator
Specifications

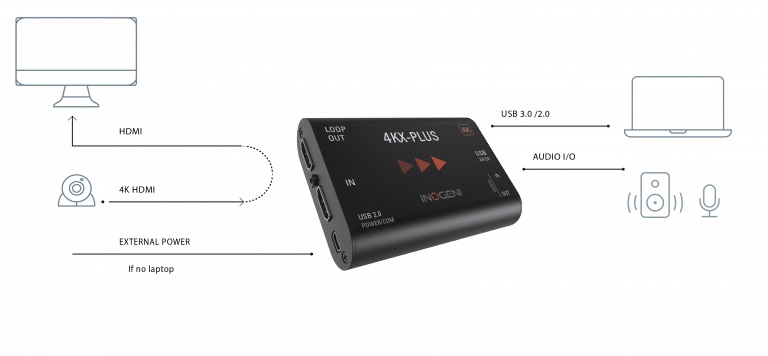

- HDMI capture to USB 3.0
- Compatible with USB 2.0 (high-quality MJPEG)
- HDMI loop output
- Up to Ultra HD 4K (3840/4096x2160) at 30 fps and 1080p at 60 fps
- HDMI audio support
- Analog audio I/O
- Digital Fluid technology: Internal frame buffers maximize frame rates
- Hardware-based color space and sampling conversion
- Automatic scaling and frame rate conversion (UHD up-scaling not supported)
- Image controls: Brightness, contrast, saturation, and hue settings
- Supports multiple devices on the same PC
- Compatible with Windows, Mac OSX, Linux and Android
- Powered from external adapter or USB 2.0 (included)
- A six-foot USB 3.0 cable is included
Main feature
Description
Unlocking Cisco Webex BYOM application
Converts Ultra HD to USB 3.0 with an HDMI loop and external power for BYOM applications. It connects your HDMI cameras, video sources or CODECs to your third-party laptop. USB passthrough compatible.
Video input
Connector & video resolutions
1x HDMI 1.4a
4K UHD (3840/4096×2160), 1440p, 1080p, 720p, 1080i, 480p, 576p, 1280×1024, 1280×960, 1280×800, 1024×768, 800×600, 640×480
Frame rates
60, 59.94, 50, 30, 29.97, 25, 24, 23.98 Hz for all resolutions, except 4K = 30Hz max.
Color space
RGB, YCbCr, 4:4:4, and 4:2:2 (4K=RGB)
Sampling rate
297 MHz
Embedded audio
Ch 1&2 48kHz LPCM
HDMI-CEC
Passthrough HDMI connections
Video output
Connector & video resolutions
1x HDMI 1.4a
4K UHD (3840/4096×2160), 1440p, 1080p, 720p, 1080i, 480p, 576p, 1280×1024, 1280×960, 1280×800, 1024×768, 800×600, 640×480
Frame rates
60, 59.94, 50, 30, 29.97, 25, 24, 23.98 Hz for all resolutions, except 4K = 30Hz max.
Color space
RGB, YCbCr, 4:4:4, and 4:2:2 (4K=RGB)
Sampling rate
297 MHz
Embedded audio
Ch 1&2 48kHz LPCM

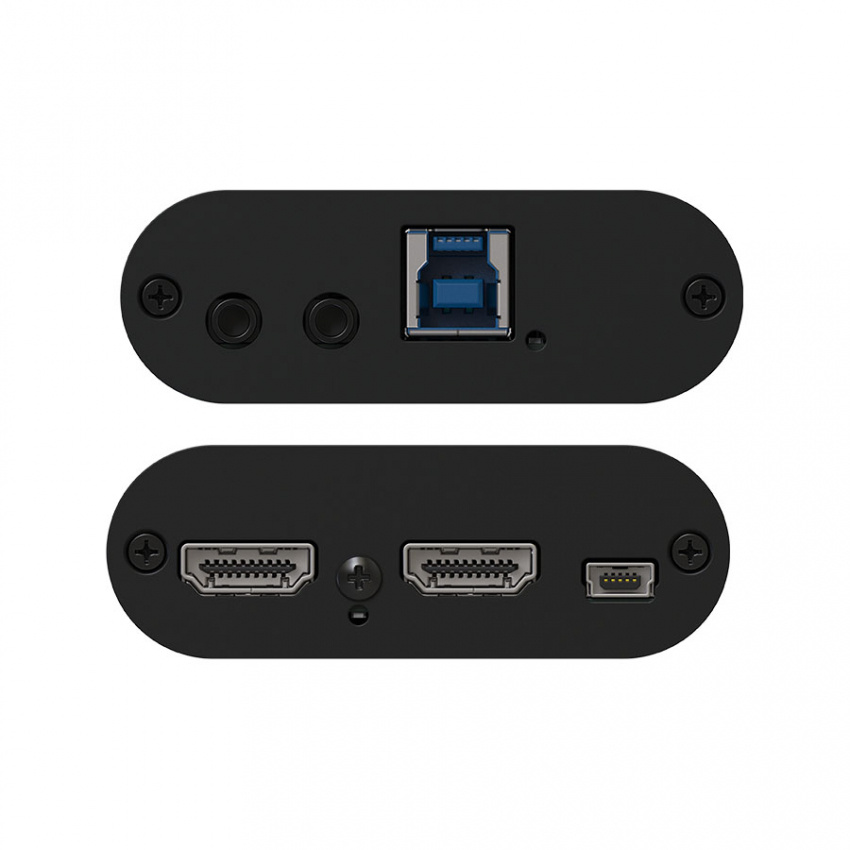

USB - Connector & video resolutions
1 x USB type B (USB 3.0/2.0)
4K UHD (3840/4096×2160), 1440p, 1080p, 720p, 1080i, 480p, 576p, 1920×1200, 1280×1024, 1280×960,1280×800, 1024×768, 800×600, 640×480
USB - CODECs
YUY2 4:2:2 and NV12/I420/YV12 4:2:0 for USB 3.0
MJPEG for USB 2.0
USB - Video scaler
Automatic hardware based
USB - Color space conversion
Automatic hardware based
USB - Sampling conversion
Automatic hardware based
USB - Frame rate conversion
Automatic hardware based
Audio
Analog audio I/O
2-channel LPCM audio from HDMI and/or from Audio Jack
Audio input connector
1 x 3.5mm, MIC or line-level, unbalanced
Audio output connector
1 x 3.5mm, line-level, unbalanced
CH1&2 48kHz LPCM feed from HDMI
Mixing functionality
HDMI audio and analog audio inputs are mixed over the USB input interface.
USB audio output and HDMI audio input are mixed over the analog audio output.
Use Control App in order to manage audio layout.
Compatibility

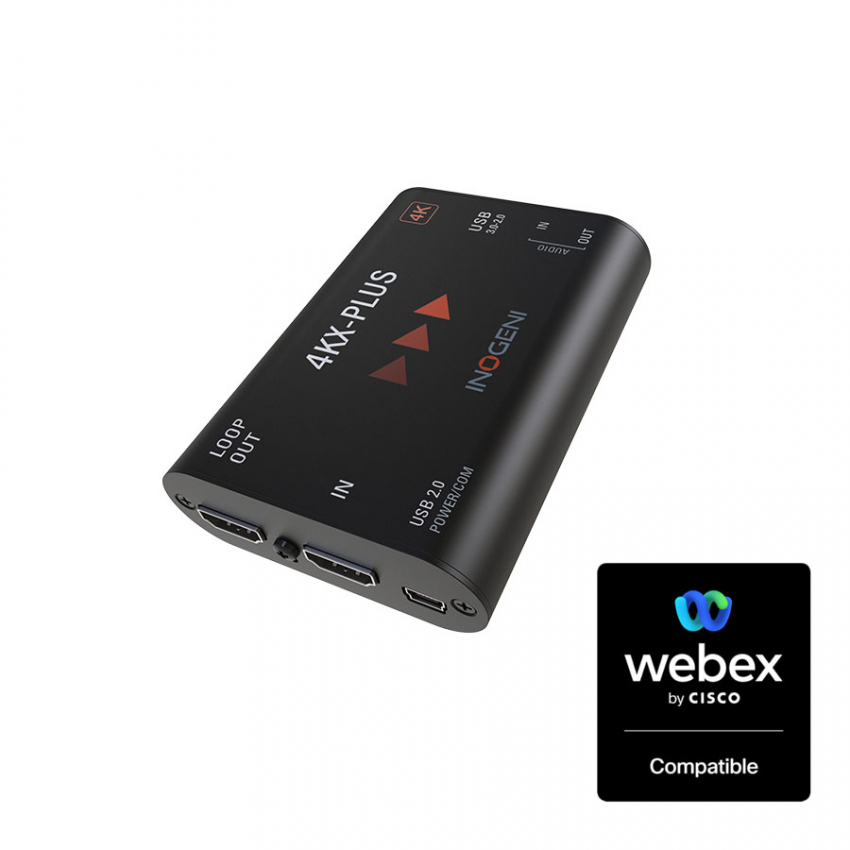

Cisco Webex Compatible
Easily programed macros in your Webex room device.
Cisco Webex Macros and guides –> USB Mode landing page
Native Webex implementation available in Q2 CY2022.
Intuitive interface on Webex Touch 10 or Webex Navigator.
The 4KX-PLUS is compatible with Webex Devices for multiple displays.
The 4K2USB3 is compatible with Webex Devices for one display.
Macro and native
- Webex Room Kit
- Webex Room Kit Plus
- Webex Room Kit Pro
- Webex Room 55
- Webex Room 70
Macro only
- Cisco MX700
- Cisco MX800
- Cisco SX80
Barco ClickShare Conference Compatible
Compatible with Barco ClickShare Conference (CX-20, CX-30 & CX-50)
Operating system
NO driver installation necessary!
Windows 7 and above (32/64-bit)
macOS 10.10 and above
Linux (kernel v2638)
Minimum host requirements
USB 2.0 port – We recommend USB3.0 for uncompressed video
4GB RAM
Intel Core i5 or equivalent
Graphic card with dedicated memory
Supported cameras
Cameras (or video Source) with an HDMI output
Software compatibility
UVC-compliant Runs with all software compatible to DirectShow, AVFoundation and V4L2 Compatible to: Teams, Zoom, Webex, Google Meet, etc.
Physical details
Dimensions (W x L x H)
9.9 cm x 7.4 cm x 1.9 cm
3.9” x 2.9” x 0.75”
Power supply
Powered by USB 4.5 W (5 V, 900mA) or by external power supply 5 W (5 V, 1 A)
Weight
140 g (0,30 lb)
Package content
1x 3ft USB 3.0 cable (Type-A to Type-B)
1x 6ft USB 2.0 cable (Type-A to mini Type-B) (for power)
1x power supply 100-240 VAC 50/60Hz to
5V/1A DC USB-A
International adapters included in the box (AUS, EUR, UK and US)
Operating temperature
0° to 45° C
32° to 113° F
Storage temperature
-40° to 105° C
-40° to 221° F
Relative humidity
0% to 90% non-condensing
Informations
UPC code
051497285142
Origin
Canada
Warranty
2 years
Certifications
HDCP-compliant
The INOGENI device does not decrypt BD/DVD movies, satellite/cable receivers or other encrypted sources.
Certifications
FCC, CE, RoHS, IEC62368, SoV, RCM, 508 Statement, KC, NOM
TAA-compliant
Yes

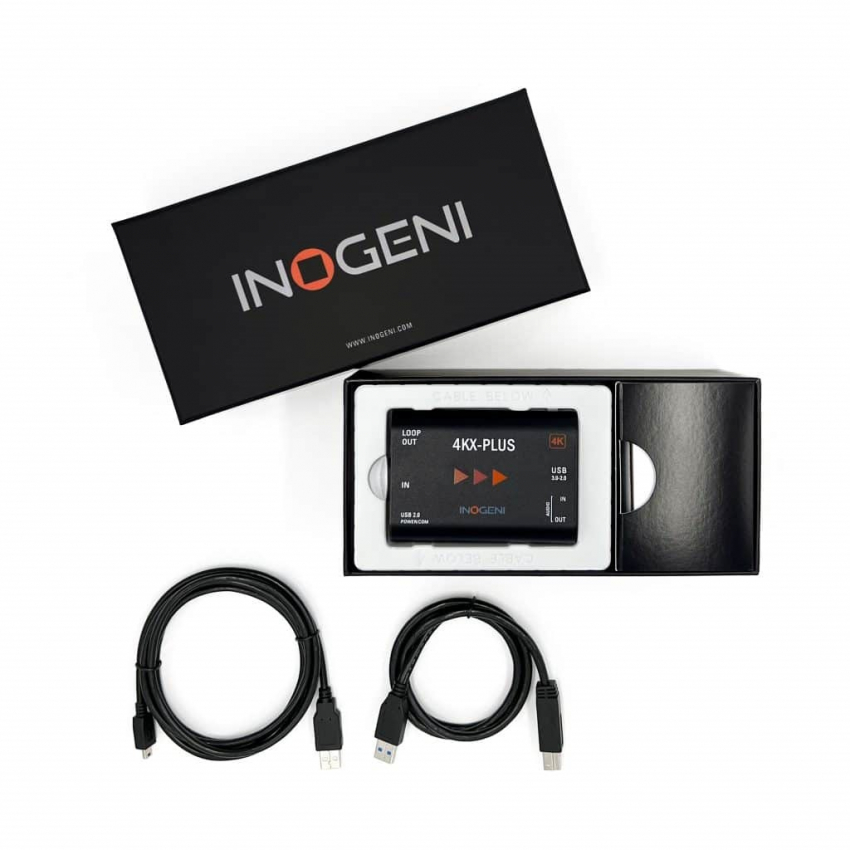

What’s in the box
- 1x 3ft USB 3.0 cable (Type-A to Type-B)
- 1x 6ft USB 2.0 cable (Type-A to mini Type-B) (for power)
- 1x power supply 100-240 VAC 50/60Hz to 5V/1A DC USB-A
- International adapters included in the box (AUS, EUR, UK and US)
