- HDMI capture to USB 3.0
- HDMI loop output
- VISCA port to control PTZ camera
- Direct Show Compatible
- Supports Ultra HD 4K, 1440p, 1080p, 1080i, 720p, 480p, and 576p video formats
- Supports 1920x1200, 1280x1024, 1280x960, 1024x768, 800x600, 640x480 graphic formats
- Up to Ultra HD 4K (3840/4096x2160) at 30 fps and 1080p at 60 fps
- HDMI audio support - embedded audio in the HDMI signals are extracted and output as two-channel LPCM
- Digital Fluid technology - Internal frame buffers maximize frame rate with any PC
- Hardware-based color space and sampling conversion
- Automatic scaling and frame rate conversion (UHD up-scaling not supported)
- Customizable video processing functions
- Image controls: Brightness, contrast, saturation and hue settings. These controls work on all formats below 4K but not 4K
- Supports multiple devices on the same PC
- Powered from USB 3.0 port
- Compatible with Windows, Mac OSX, Linux and Android
- A USB 3.0 cable is included

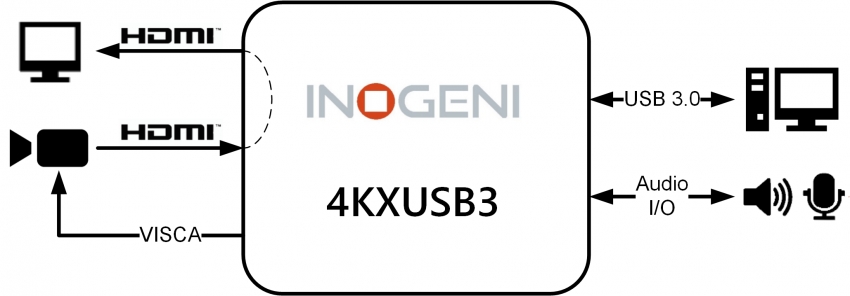

How it works

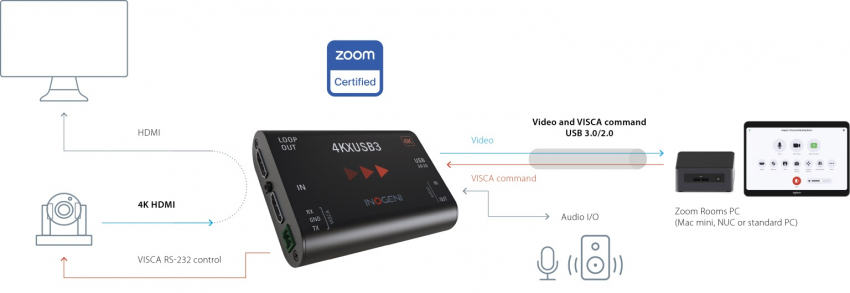

The 4KXUSB3 Ultra HD to USB 3.0 professional camera converter with an HDMI loop and VISCA port works with any virtual meeting room software that enables USB cameras and microphones, such as Microsoft Teams, Zoom, Google Meet or BlueJeans.
Requiring no drivers and compatible with Windows, macOS and Linux laptops, the converter resolves all interoperability issues.
Main feature
Description

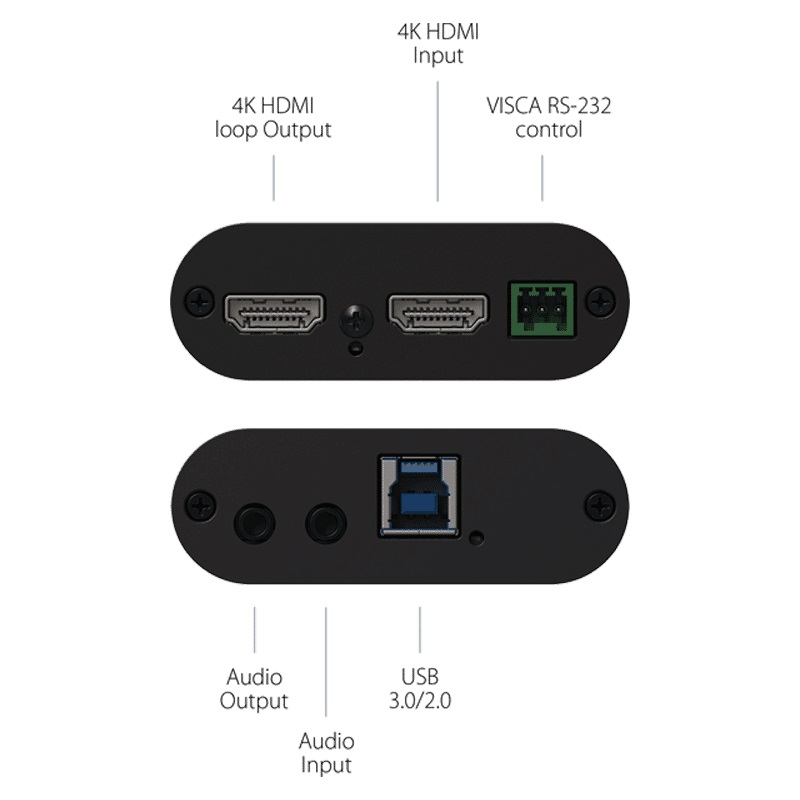

Converts 4K Ultra HD HDMI (video and audio) to USB 3.0 without compression. HDMI loop output. VISCA port to control PTZ camera.
Video input
Connector & video resolutions
1x HDMI 1.4a
4K UHD (3840/4096×2160), 1440p, 1080p, 720p, 1080i, 480p, 576p, 1280×1024, 1280×960, 1280×800, 1024×768, 800×600, 640×480
Frame rates
60, 59.94, 50, 30, 29.97, 25, 24, 23.98 Hz for all resolutions, except 4K = 30 Hz max.
Color space
RGB, YCbCr, 4:4:4, and 4:2:2 (4K=RGB)
Sampling rate
297 MHz
Embedded audio
Ch 1&2 48 kHz LPCM
HDMI-CEC
Passthrough HDMI connections
Video output
Connector & video resolutions
1x HDMI 1.4a
4K UHD (3840/4096×2160), 1440p, 1080p, 720p, 1080i, 480p, 576p, 1280×1024, 1280×960, 1280×800, 1024×768, 800×600, 640×480
Color space
RGB, YCbCr 4:4:4 and 4:2:2 (4K=RGB)
USB - Connector & video resolutions
1x USB 3.0 Type-B
USB - CODECs
YUY2 4:2:2 and NV12/I420/YV12 4:2:0 for USB 3.0
MJPEG for USB 2.0
USB - Video scaler
Automatic hardware based
USB - Color space conversion
Automatic hardware based
USB - Sampling conversion
Automatic hardware based
USB - Frame rate conversion
Automatic hardware based
Audio
Analog audio I/O
2-channel LPCM audio from HDMI and/or from audio jack
Audio input connector
1 x 3.5 mm, MIC or line-level, unbalanced
Audio output connector
1 x 3.5 mm, line-level, unbalanced
CH1&2 48 kHz LPCM feed from HDMI
Mixing functionality
HDMI audio and analog audio inputs are mixed over the USB input interface.
USB audio output and HDMI audio input are mixed over the analog audio output.
Use Control App in order to manage audio layout.
Control
PTZ control connector
1 x Terminal block for VISCA control from UVC interface
RS-232 interface
Baud rate @ 9600 bps
Compatibility
Operating system
NO driver installation necessary!
Windows 7 and above (32/64-bit)
macOS 10.10 and above
Linux (kernel v2638)
Minimum host requirements
USB 2.0 port – We recommend USB3.0 for uncompressed video
4GB RAM
Intel Core i5 or equivalent
Graphic card with dedicated memory
Motherboard
Compatible with all motherboards. Intel, Renesas, ASMedia, and Fresco Logic

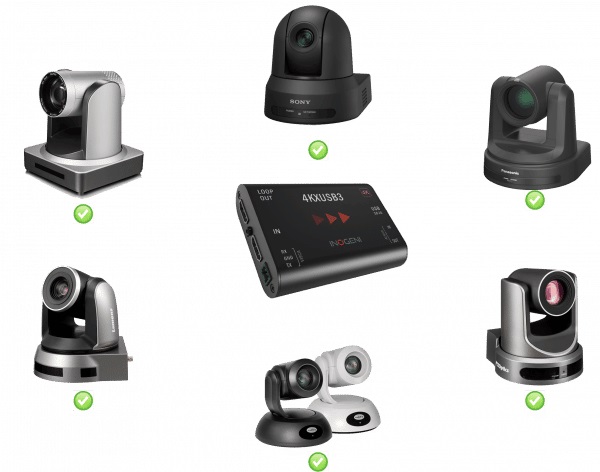

Supported cameras
Cameras and camcorders with an HDMI output
Software compatibility
UVC-compliant Runs with all software compatible to DirectShow, AVFoundation and V4L2 Compatible to: Microsoft Teams, Zoom, Webex, Google Meet, etc.

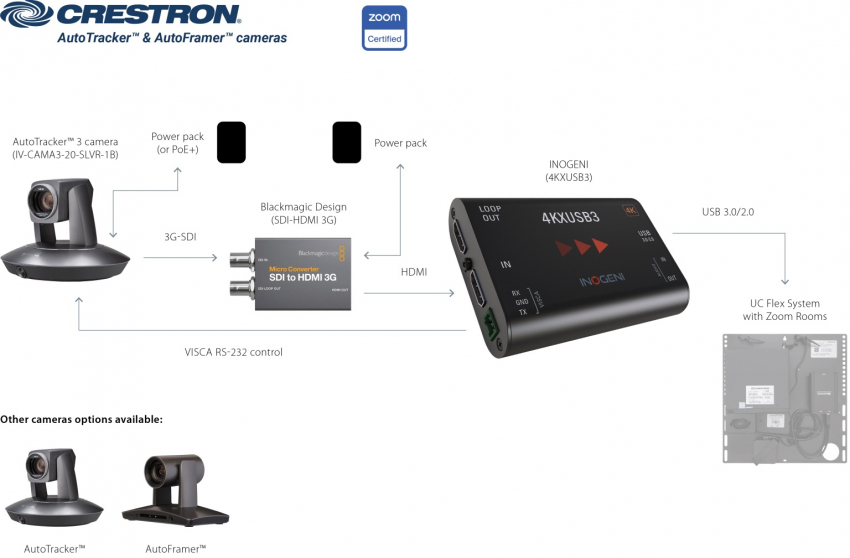

Crestron’s AutoTracker™and AutoFramer™ are now certified for Zoom Rooms® software with INOGENI’s 4KXUSB3 converter for camera control. Read the blog.
Physical details
Dimensions (W x L x H)
9.9 cm x 7.4 cm x 1.9 cm
3.9” x 2.9” x 0.75”
Power supply
Powered by USB (5V, 900mA)
Weight
140 g (0,30 lb)
Package content
1x 3 ft USB 3.0 cable (Type-A to Type-B)
1x RS-232 terminal block adapter
Operating temperature
0° to 45° C
32° to 113° F
Storage temperature
-40° to 105° C
-40° to 221° F
Relative humidity
0% to 90% non-condensing
Informations
UPC code
40232378935
Origin
Canada
Warranty
2 years
Certifications
HDCP-compliant
The INOGENI device does not decrypt BD/DVD movies, satellite/cable receivers or other encrypted sources.
Certifications
FCC, CE, RoHS, IEC62368, SoV, RCM, BSMI RoHS, BSMI, CB, KC, MSIP
TAA-compliant
Yes

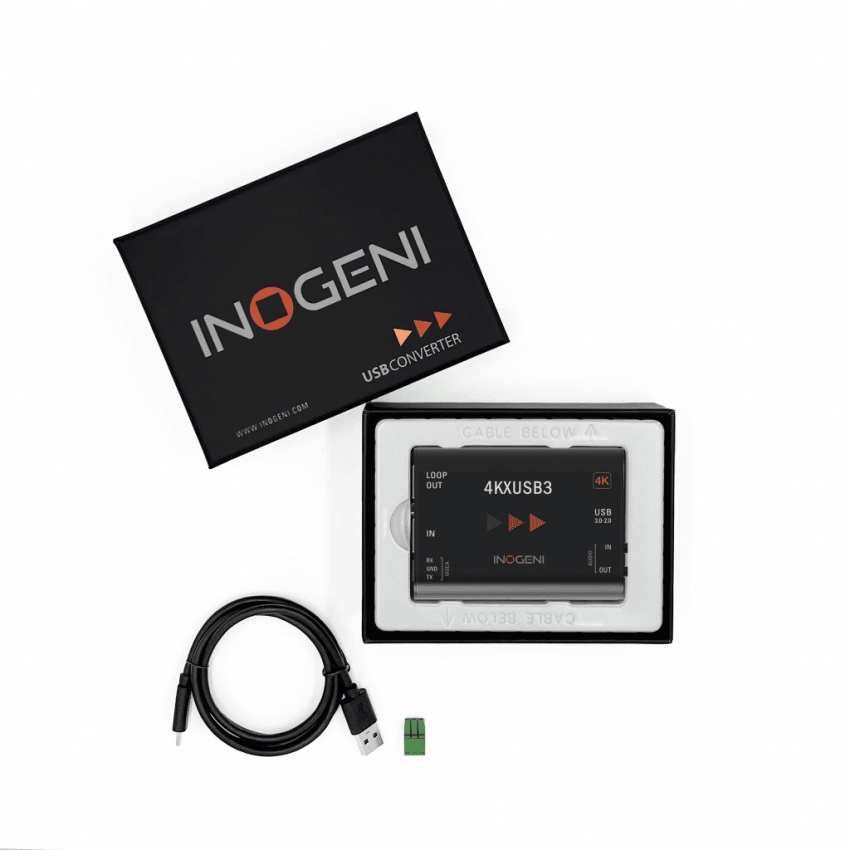

What’s in the box
- 1x 3 ft USB 3.0 cable (Type-A to Type-B)
- 1x RS-232 terminal block adapter
