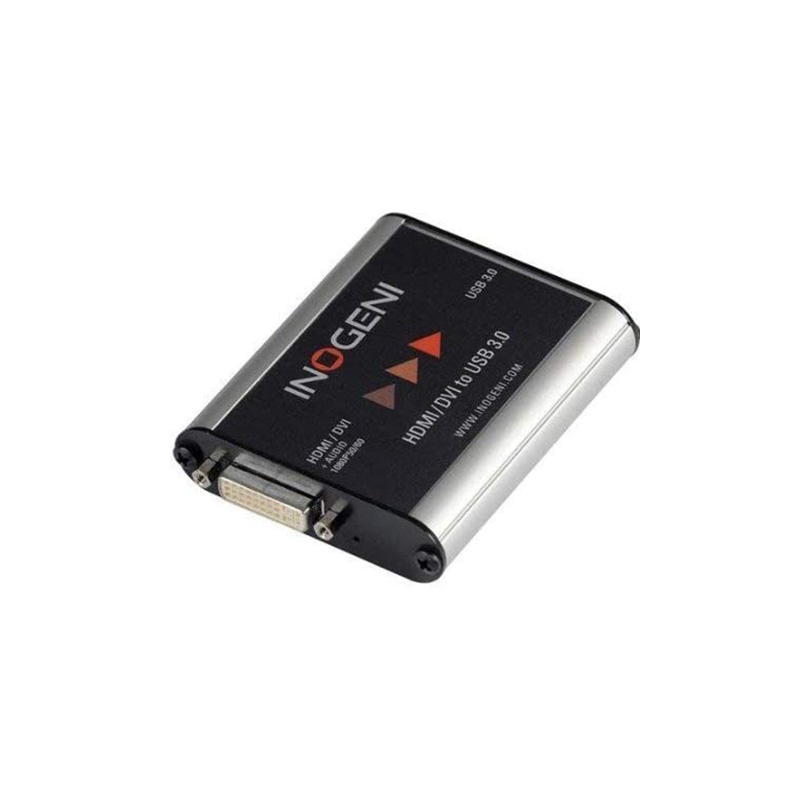

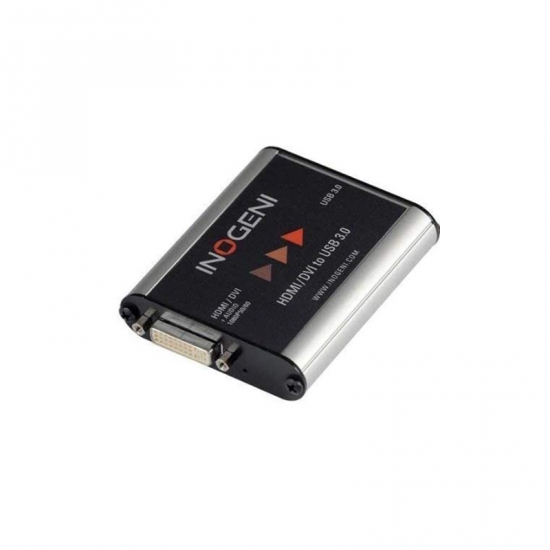

DVIUSB Converter requires no drivers. It is the most reliable and convenient PC input to capture uncompressed video with audio from your camera's HDMI or DVI-D output for recording, editing, videoconferencing and streaming applications. It is compatible with Windows, Mac OSX, Linux, and Android operating systems. The INOGENI DVIUSB features a single HDMI input and USB 3.0 output, and supports SD and HDTV video formats, up to 1200p60, as well as most computer graphic formats. Compact in size and powered directly from a USB 3.0 port, the converter is a practical and easy-to-use USB 3.0 capture solution. It is compatible with Windows, Mac OSX, Linux, and Android operating systems, and is UVC-compliant, so it will work with all DirectShow compatible software. The DVIUSB supports 1200p resolution up to 60 fps.
- HDMI/DVI-D capture to USB3.0
- Supports 1080p, 1080i, 720p, 480p, and 576p video formats
- Supports 1920x1200, 1280x1024, 1280x960, 1024x768, 800x600, 640x480 graphic formats
- All SD and HD resolution signals are converted to 4:2:2 8-bit color space over USB 3.0
- HDMI audio support - embedded audio in the HDMI signals are extracted and output as two-channel LPCM
- Digital Fluid technology - Internal frame buffers maximize frame rate with any PC
- Hardware-based color space and sampling conversion
- Automatic scaling and frame rate conversion
- Customizable video processing functions
- Image controls: Brightness, contrast, saturation and hue settings
- Supports multiple devices on the same PC
- Powered from USB 3.0 port
- Compatible with Windows, Mac OSX, Linux and Android
- This model cannot decode analog video
- A USB 3.0 cable and DVI to HDMI adapter are included
Main feature
Description

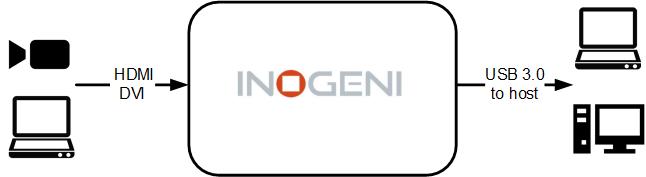

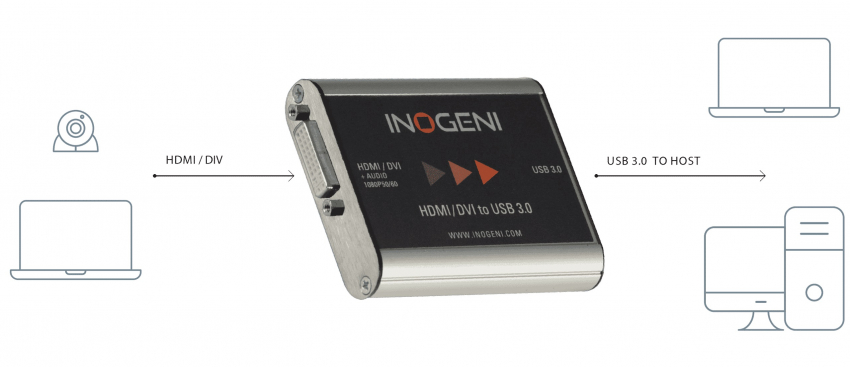

Converts HDMI/DVI (video and audio) to USB 3.0 without compression. DVI to HDMI adapter included.
Video input
Connector & video resolutions
1x DVI-D
– OR –
With HDMI Adapter
1080p, 720p, 1080i, 480p, 576p, 1920×1200, 1280×1024, 1280×960, 1024×768, 800×600, 640×480
Frame rates
60, 59.94, 50, 30, 29.97, 25, 24, 23.98 Hz for all resolutions.
Color space
RGB, YCbCr, 4:4:4, and 4:2:2
Sampling rate
225 MHz
Embedded audio
Ch 1&2 48kHz LPCM
Video output
Color space
RGB, YCbCr, 4:4:4, and 4:2:2
USB - Connector & video resolutions
1x USB 3.0 Type-B
USB - CODECs
YUY2 4:2:2 8-bit
USB - Video scaler
Automatic hardware based
USB - Color space conversion
Automatic hardware based
USB - Sampling conversion
Automatic hardware based
USB - Frame rate conversion
Automatic hardware based
Audio
Analog audio I/O
2-channel LPCM audio from HDMI
Audio input connector
CH1&2 48kHz LPCM feed from HDMI
Compatibility
Operating system
NO driver installation necessary!
Windows 7 and above (32/64-bit)
macOS 10.10 and above
Linux (kernel v2638)
Minimum host requirements
USB 3.0 port
4GB RAM
Intel Core i5 or equivalent
Graphic card with dedicated memory
Motherboard
Compatible with all motherboards. Intel, Renesas, ASMedia, and Fresco Logic
Supported cameras
Cameras and camcorders with an HDMI output
Software compatibility
UVC-compliant Runs with all software compatible to DirectShow, AVFoundation and V4L2 Compatible to: Teams, Zoom, Webex, Google Meet, etc.
Physical details
Dimensions (W x L x H)
8.1 cm x 7.4 cm x 1.9 cm
3.2” x 2.9” x 0.75”
Power supply
Powered by USB (5V, 525mA)
Weight
120 g (0,26 lb)
Package content
1x 3ft USB 3.0 cable (Type-A to Type-B)
1x HDMI to DVI adapter
Operating temperature
0° to 45° C
32° to 113° F
Storage temperature
-40° to 105° C
-40° to 221° F
Relative humidity
0% to 90% non-condensing
Informations
UPC code
40232090387
Origin
Canada
Warranty
2 years
Certifications
HDCP-compliant
The INOGENI device does not decrypt BD/DVD movies, satellite/cable receivers or other encrypted sources.
Certifications
FCC, CE, RoHS, IEC62368, SoV, BSMI RoHS, BSMI, CB
TAA-compliant
Yes

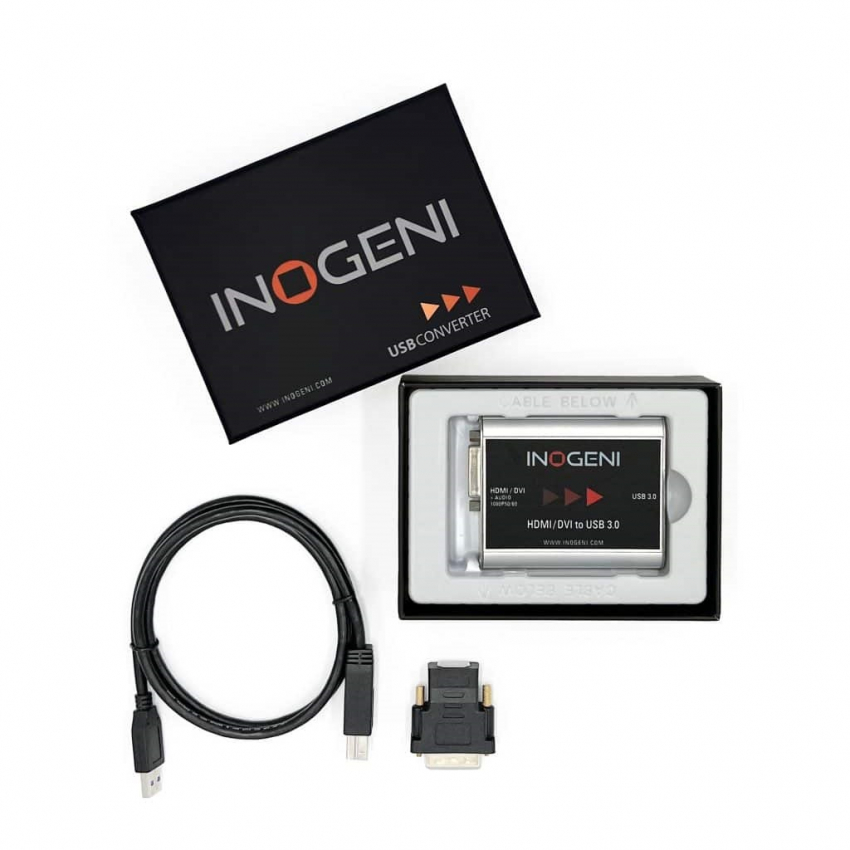

What’s in the box
- 1x 3ft USB 3.0 cable (Type-A to Type-B)
- 1x HDMI to DVI adapter
