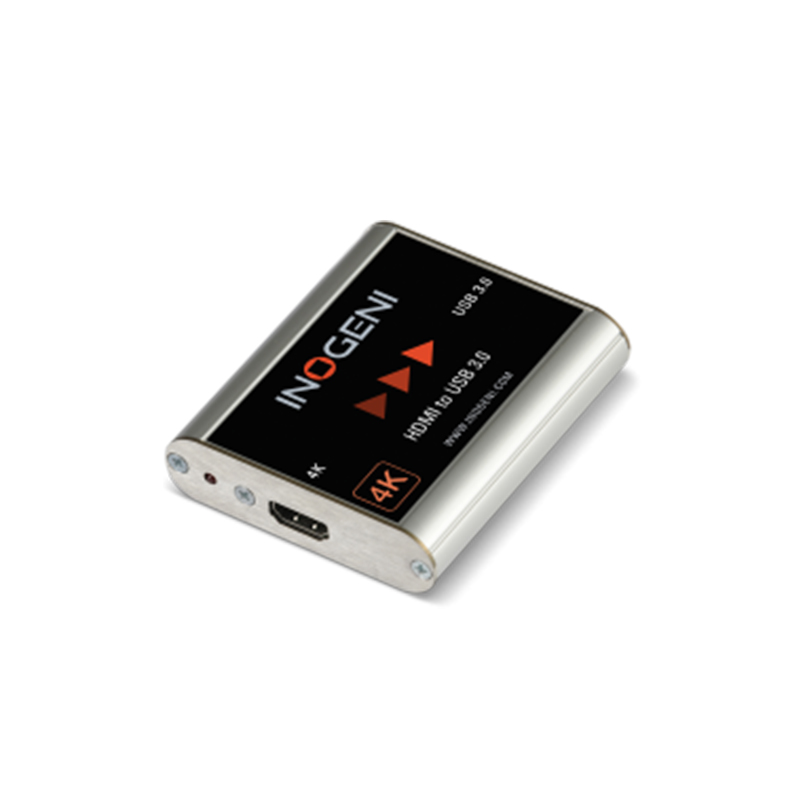

4K HDMI to USB 3.0 Converter requires no drivers. It is the most reliable and convenient PC input to capture uncompressed video with audio from your camera's HDMI output for recording, editing, videoconferencing and streaming applications. It is compatible with Windows, Mac OSX, Linux and Android operating systems.
It features a single HDMI input and USB 3.0 output, and supports SD and HDTV video formats, up to Ultra HD 4K (4096x2160), and most computer graphic formats. Compact in size and powered directly from a USB 3.0 port, the converter is a practical and easy-to-use USB 3.0 capture solution. It is compatible with Windows, Mac OSX, Linux and Android operating systems and is UVC-compliant, so it will work with all DirectShow compatible software.
- HDMI capture to USB 3.0
- Direct Show Compatible
- Supports Ultra HD 4K, 1440p, 1080p, 1080i, 720p, 480p, and 576p video formats
- Supports 1920x1200, 1280x1024, 1280x960, 1024x768, 800x600, 640x480 graphic formats
- Up to Ultra HD 4K (3840/4096x2160) at 30 fps and 1080p at 60 fps
- HDMI audio support - embedded audio in the HDMI signals are extracted and output as two-channel LPCM
- Digital Fluid technology - Internal frame buffers maximize frame rate with any PC
- Hardware-based color space and sampling conversion
- Automatic scaling and frame rate conversion (UHD up-scaling not supported)
- Customizable video processing functions
- Image controls: Brightness, contrast, saturation and hue settings. These controls work on all formats below 4K but not 4K
- Supports multiple devices on the same PC
- Powered from USB 3.0 port
- Compatible with Windows, Mac OSX, Linux and Android
- A USB 3.0 cable is included

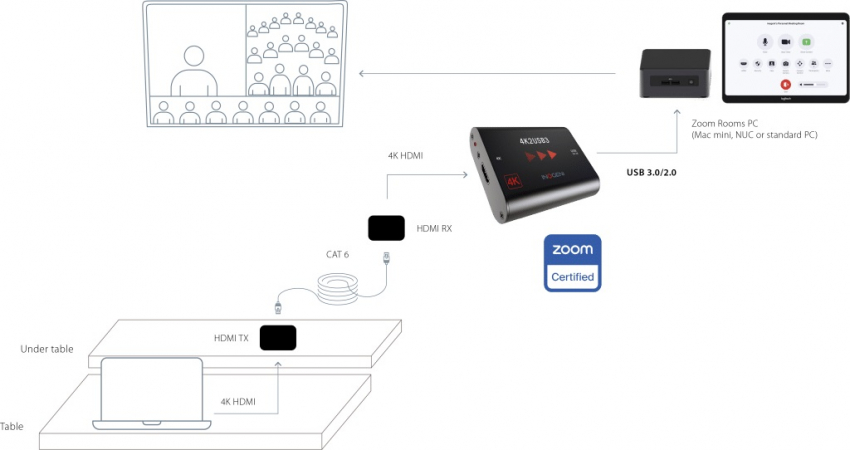

How it works

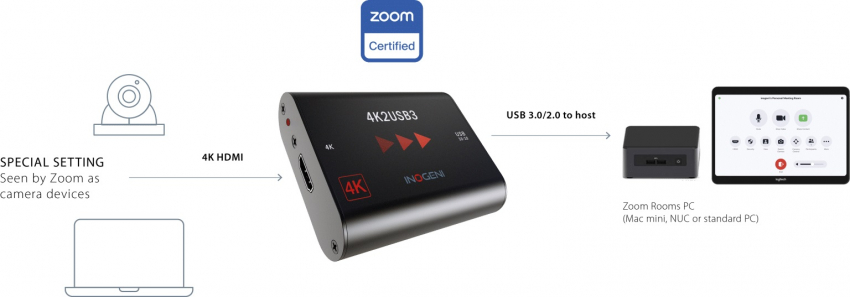

The 4K2USB3 HDMI 4K to USB 3.0 professional camera converter works with any virtual meeting room software that enables USB cameras and microphones, such as Microsoft Teams, Zoom, Google Meet or BlueJeans.
Requiring no drivers and compatible with Windows, macOS and Linux laptops, the camera converter resolves all interoperability issues.
Main feature
Description
Converts 4K Ultra HD HDMI (video and audio) to USB 3.0 without compression.
Video input

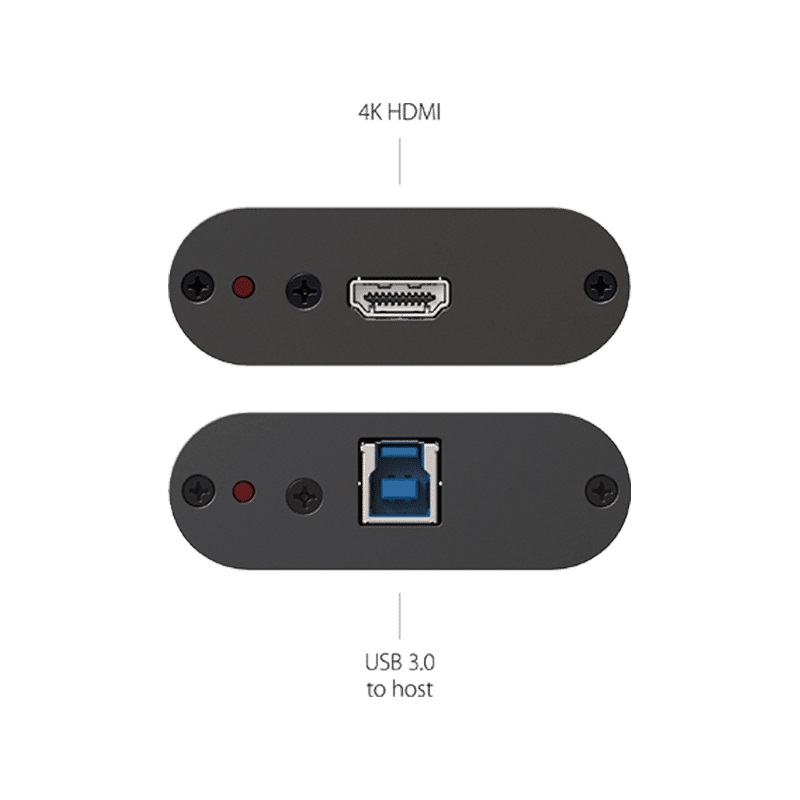

Connector & video resolutions
1x HDMI 1.4a
4K UHD (3840/4096×2160), 1440p, 1080p, 720p, 1080i, 480p, 576p, 1280×1024, 1280×960, 1280×800, 1024×768, 800×600, 640×480
Frame rates
60, 59.94, 50, 30, 29.97, 25, 24, 23.98 Hz for all resolutions, except 4K = 30Hz max.
Color space
RGB, YCbCr, 4:4:4, and 4:2:2 (4K=RGB)
Sampling rate
297 MHz
Embedded audio
Ch 1&2 48kHz LPCM
Video output
Color space
RGB, YCbCr, 4:4:4, and 4:2:2 (4K=RGB)
USB - Connector & video resolutions
1x USB 3.0 Type-B
USB - CODECs
YUY2 4:2:2 and NV12/I420/YV12 4:2:0 for USB 3.0
MJPEG for USB 2.0*
Notes for MJPEG for USB 2.0
* Devices having serial numbers >= 4K2037XXX will support MJPEG over USB 2.0. Otherwise, it will be uncompressed video.
USB - Video scaler
Automatic hardware based
USB - Color space conversion
Automatic hardware based
USB - Sampling conversion
Automatic hardware based
USB - Frame rate conversion
Automatic hardware based
Audio
Analog audio I/O
2-channel LPCM audio from HDMI
Audio input connector
CH1&2 48kHz LPCM feed from HDMI
Compatibility

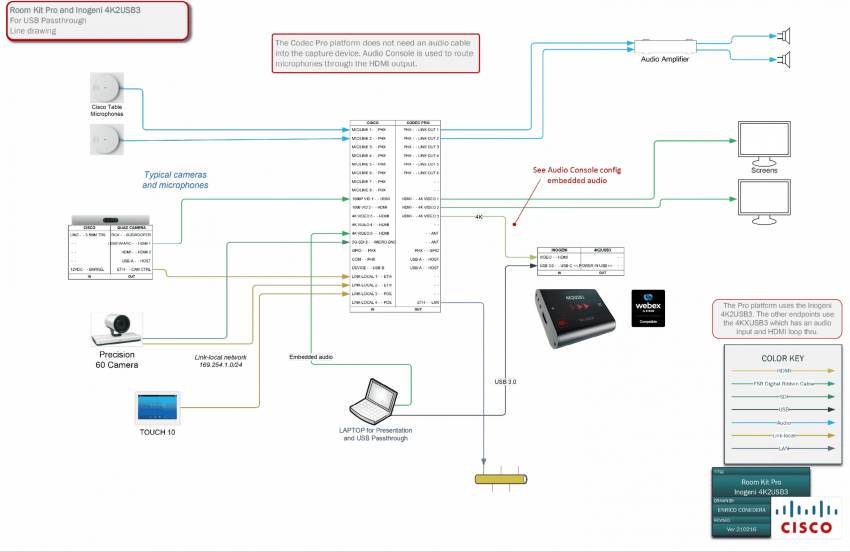

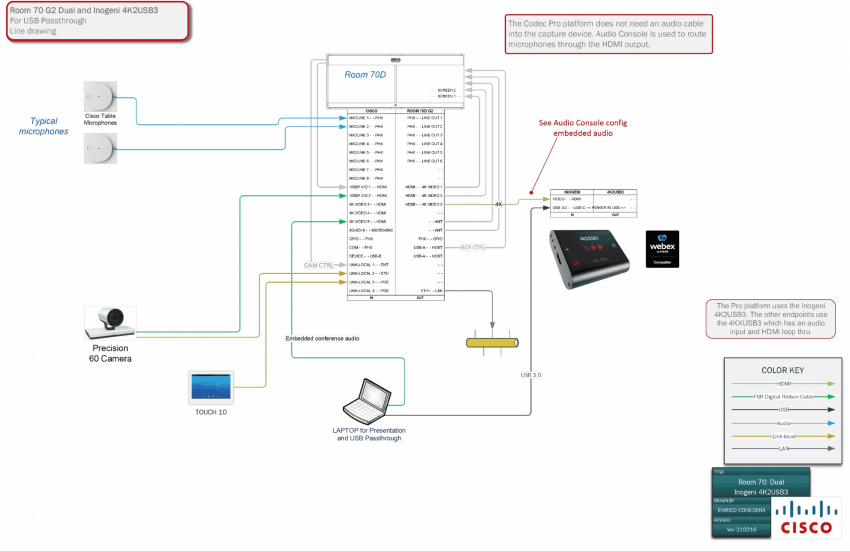

Cisco Webex Compatible
Easily programed macros in your Webex room device.
Cisco Webex Macros and guides –> USB Mode landing page
Native Webex implementation available in Q2 CY2022.
Intuitive interface on Webex Touch 10 or Webex Navigator.
The 4KX-PLUS is compatible with Webex Devices for multiple displays.
The 4K2USB3 is compatible with Webex Devices for one display.
Macro and native
- Webex Room Kit
- Webex Room Kit Plus
- Webex Room Kit Pro
- Webex Room 55
- Webex Room 70
- Webex Room Panorama
Macro only
- Cisco MX700
- Cisco MX800
- Cisco SX80
Operating system
NO driver installation necessary!
Windows 7 and above (32/64-bit)
macOS 10.10 and above
Linux (kernel v2638)
Minimum host requirements
USB 2.0 port – We recommend USB3.0 for uncompressed video
4GB RAM
Intel Core i5 or equivalent
Graphic card with dedicated memory
Motherboard
Compatible with all motherboards. Intel, Renesas, ASMedia, and Fresco Logic

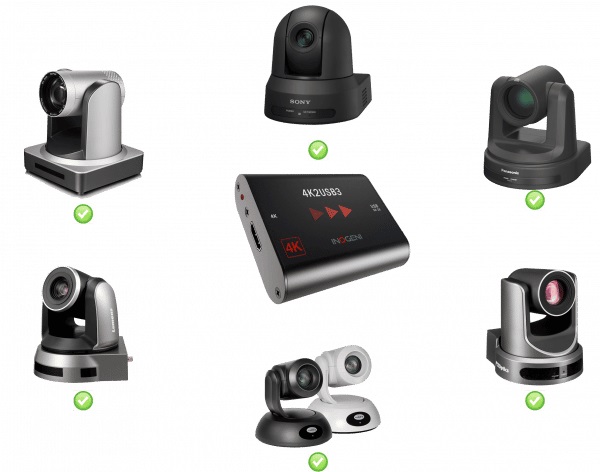

Supported cameras
Cameras and camcorders with an HDMI output
Software compatibility
UVC-compliant Runs with all software compatible to DirectShow, AVFoundation and V4L2 Compatible to: Teams, Zoom, Webex, Google Meet, etc.
Physical details
Dimensions (W x L x H)
8.1 cm x 7.4 cm x 1.9 cm
3.2” x 2.9” x 0.75”
Power supply
Powered by USB (5V / 716mA)
Weight
120 g (0,26 lb)
Package content
1x 3ft USB 3.0 cable (Type-A to Type-B)
Operating temperature
0° to 45° C
32° to 113° F
Storage temperature
-40° to 105° C
-40° to 221° F
Relative humidity
0% to 90% non-condensing
Informations
UPC code
40232164873
Origin
Canada
Warranty
2 years
Certifications
HDCP-compliant
The INOGENI device does not decrypt BD/DVD movies, satellite/cable receivers or other encrypted sources.
Certifications
FCC, CE, RoHS, IEC62368, SoV, RCM, VCCI, BSMI RoHS, BSMI, CB, KC, MSIP
TAA-compliant
Yes

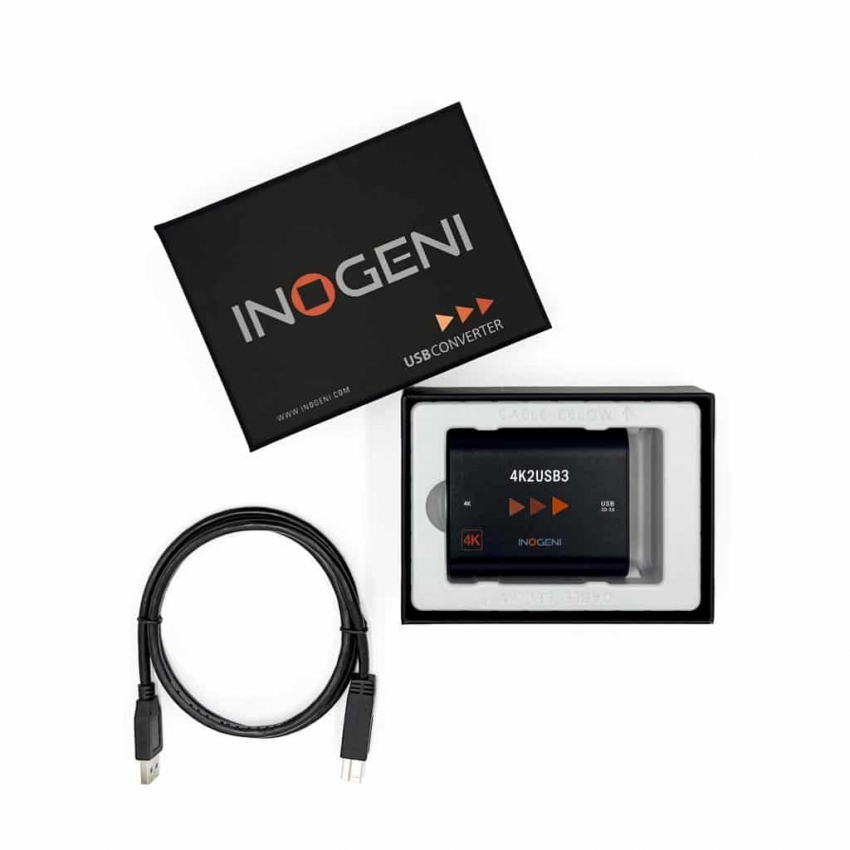

What’s in the box
- 1x 3ft USB 3.0 cable (Type-A to Type-B)
