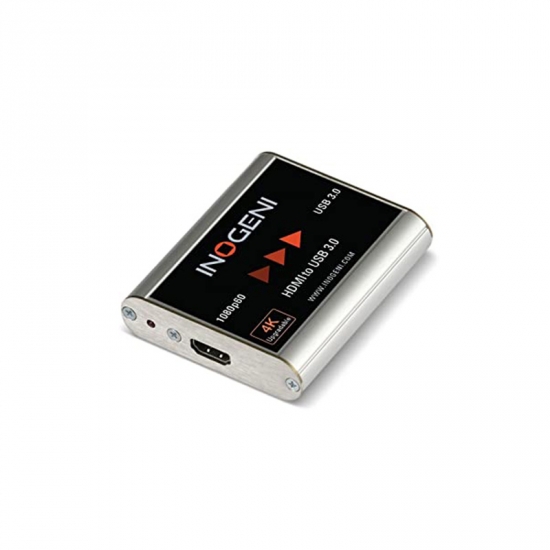

HD2USB3 Converter requires no drivers. It is the most reliable and convenient PC input to capture uncompressed video with audio from your camera's HDMI output for recording, editing, videoconferencing and streaming applications. It is compatible with Windows, Mac OSX, Linux and Android operating systems. The INOGENI HD2USB3 features a single HDMI input and USB 3.0 output, and supports SD and HDTV video formats, up to 1200p60, as well as most computer graphic formats. Compact in size and powered directly from a USB 3.0 port, the converter is a practical and easy-to-use USB 3.0 capture solution. It is compatible with Windows, Mac OSX, Linux, and Android operating systems, and is UVC-compliant, so it will work with all DirectShow compatible software. The HD2USB3 supports 1200p resolution up to 60 fps.
- HDMI capture to USB 3.0
- Supports 1080p, 1080i, 720p, 480p, and 576p video formats
- Supports 1920x1200, 1280x1024, 1280x960, 1024x768, 800x600, 640x480 graphic formats
- Up to 1200p at 60 fps
- HDMI audio support
- Digital Fluid technology - Internal frame buffers maximize frame rate with any PC
- Hardware-based color space and sampling conversion
- Automatic scaling and frame rate conversion
- Customizable video processing functions
- Image controls: Brightness, contrast, saturation and hue settings
- Supports multiple devices on the same PC
- Powered from a USB 3.0 port
- A USB 3.0 cable is included

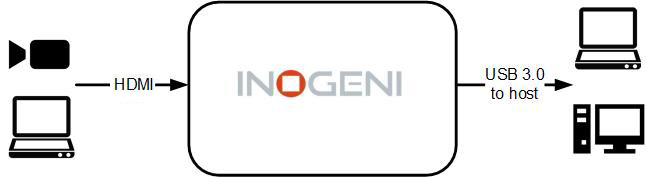

How it works
The HD2USB3 HDMI to USB 3.0 video converter features a single HDMI input and USB 3.0 output, and supports SD and HDTV video formats, up to 1200p60, as well as most computer graphic formats. This converter works with any virtual meeting room software that enables USB cameras and microphones, such as Microsoft Teams, Zoom, Google Meet or BlueJeans.
Compact and powered directly from a USB 3.0 port, the converter is a practical and easy-to-use USB 3.0 capture solution. It is also UVC-compliant, so it will work with all DirectShow compatible software. The HD2USB3 professional video converter supports 1200p resolution up to 60 fps.
Main feature
Description
Converts 1080p HDMI (video and audio) to USB 3.0 without compression. Field upgradable to 4K.

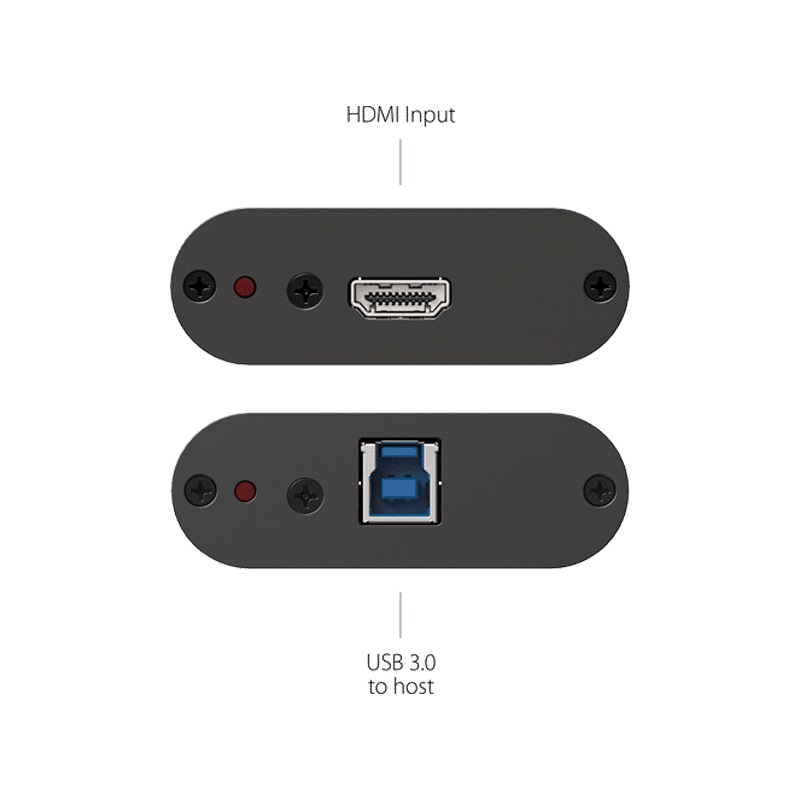

Video input
Connector & video resolutions
1x HDMI 1.4a
1080p, 720p, 1080i, 480p, 576p, 1280×1024, 1280×960, 1024×768, 800×600, 640×480
Frame rates
60, 59.94, 50, 30, 29.97, 25, 24, 23.98 Hz for all resolutions
Color space
RGB, YCbCr, 4:4:4, and 4:2:2
Sampling rate
297 MHz
Embedded audio
Ch 1&2 48kHz LPCM
Video output
Color space
RGB, YCbCr, 4:4:4, and 4:2:2
USB - Connector & video resolutions
1x USB 3.0 Type-B
USB - CODECs
YUY2 4:2:2 8-bit for USB 3.0
MJPEG for USB 2.0*
Notes for MJPEG for USB 2.0
* Devices having serial numbers >= HD2035XXX will support MJPEG over USB 2.0. Otherwise, it will be uncompressed video.
USB - Video scaler
Automatic hardware based
USB - Color space conversion
Automatic hardware based
USB - Sampling conversion
Automatic hardware based
USB - Frame rate conversion
Automatic hardware based
Audio
Analog audio I/O
2-channel LPCM audio from HDMI
Audio input connector
CH1&2 48kHz LPCM feed from HDMI
Compatibility
Operating system
NO driver installation necessary!
Windows 7 and above (32/64-bit)
macOS 10.10 and above
Linux (kernel v2638)
Minimum host requirements
USB 2.0 port – We recommend USB3.0 for uncompressed video
4GB RAM
Intel Core i5 or equivalent
Graphic card with dedicated memory
Motherboard
Compatible with all motherboards. Intel, Renesas, ASMedia, and Fresco Logic

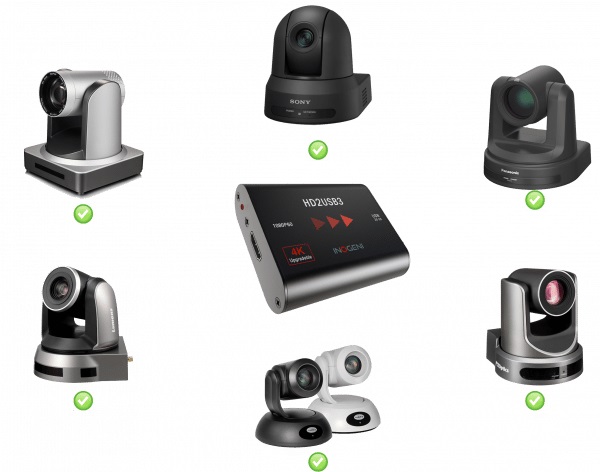

Supported cameras
Cameras and camcorders with an HDMI output
Software compatibility
UVC-compliant Runs with all software compatible to DirectShow, AVFoundation and V4L2 Compatible to: Teams, Zoom, Webex, Google Meet, etc.
Physical details
Dimensions (W x L x H)
8.1 cm x 7.4 cm x 1.9 cm
3.2” x 2.9” x 0.75”
Power supply
Powered by USB (5V, 580mA)
Weight
120 g (0,26 lb)
Package content
1x 3ft USB 3.0 cable (Type-A to Type-B)
Operating temperature
0° to 45° C
32° to 113° F
Storage temperature
-40° to 105° C
-40° to 221° F
Relative humidity
0% to 90% non-condensing
Informations
UPC code
40232521003
Origin
Canada
Warranty
2 years
Certifications
HDCP-compliant
The INOGENI device does not decrypt BD/DVD movies, satellite/cable receivers or other encrypted sources.
Certifications
FCC, CE, RoHS, IEC62368, SoV, RCM, BSMI RoHS, BSMI, CB, KC, MSIP
TAA-compliant
Yes

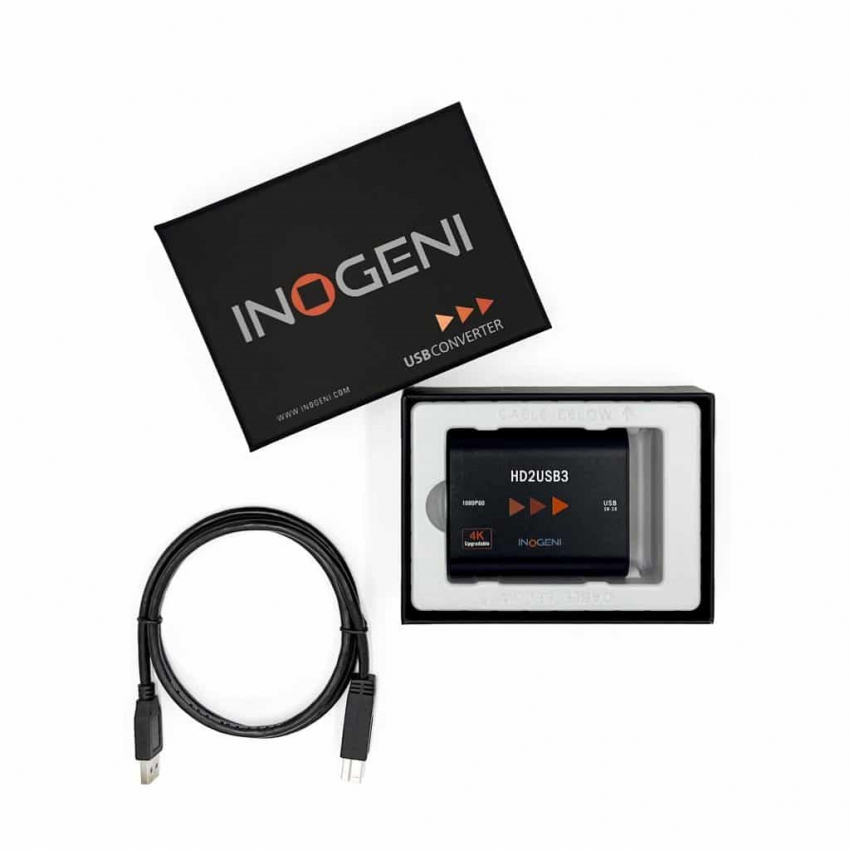

What’s in the box
- 1x 3ft USB 3.0 cable (Type-A to Type-B)
