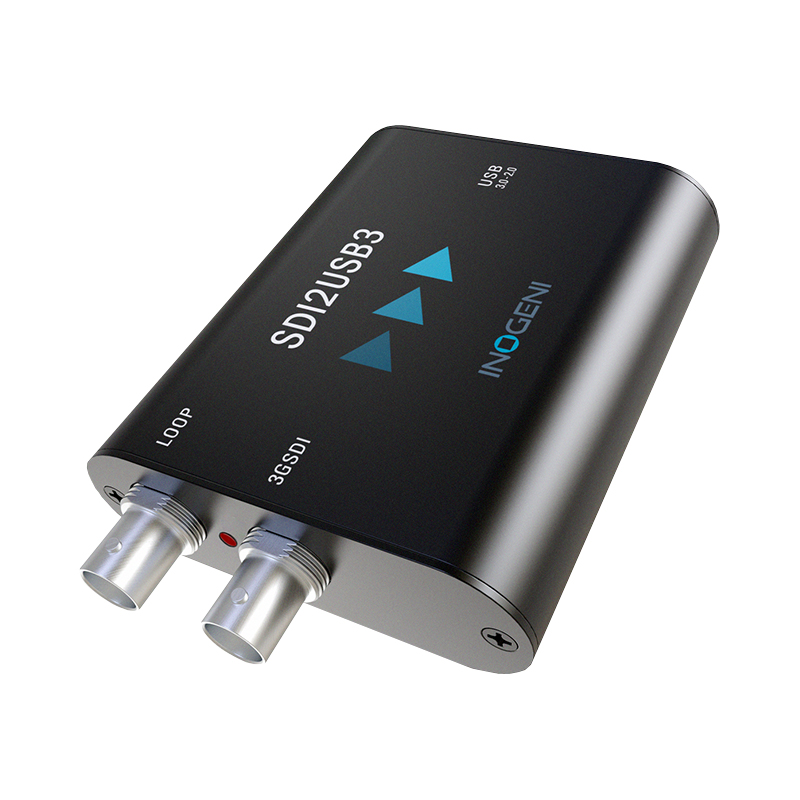

SDI2USB3 Converter is the most easy and reliable tool to capture uncompressed 3GSDI video with embedded audio for your PC for recording, editing, videoconferencing and streaming applications. No driver installation is necessary. It features a 3GSDI input with active loop output and supports SD and HDTV video formats, up to 1080p60. Compact in size and powered directly from a USB 3.0 port, the converter is a practical and easy-to-use USB 3.0 capture solution. It is compatible with Windows, Mac OSX, Linux and Android operating systems and is UVC-compliant, so it will work with all DirectShow compatible software.
The converter supports 1080p resolutions up to 60 fps.
- 3GSDI capture to USB 3.0
- Active loop output connector
- Supports 1080p, 1080i, 720p, 480p, 576p, NTSC and PAL at up to 60 fps
- All SD and HD resolution signals are converted to 4:2:2 8-bit color space over USB 3.0
- Embedded audio extraction and output as two-channel LPCM
- Digital Fluid technology - Internal frame buffers maximize frame rate with any PC
- Hardware-based color space and sampling conversion
- Automatic scaling and frame rate conversion
- Customizable video processing functions
- Supports multiple devices on the same PC
- Powered from a USB 3.0 port
- Compatible with Compatible with Windows, Mac OSX, Linux and Android
- A USB 3.0 cable is included

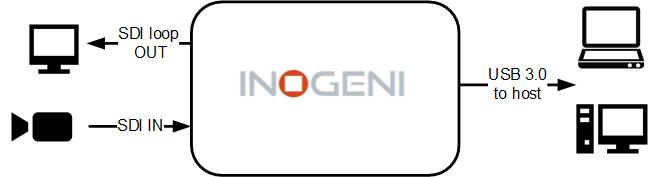

How it works

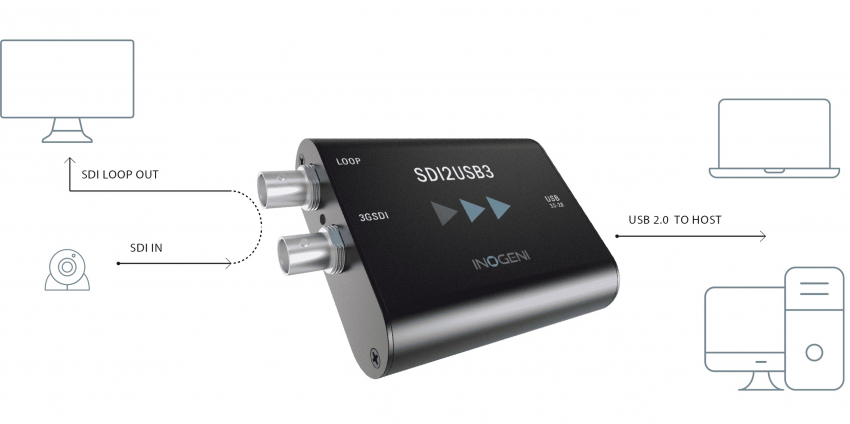

The SDI2USB3 professional video converter features a 3GSDI input with active loop output and supports SD and HDTV video formats. Compact and powered directly from a USB 3.0 port, the converter is a practical and easy-to-use USB 3.0 capture solution.
UVC-compliant, it works with all DirectShow compatible software. The SDI2USB3 video converter supports 1080p resolution up to 60 fps.
Main feature
Description
Converts SDI (video and audio) to USB 3.0 without compression. Active loop output connector.

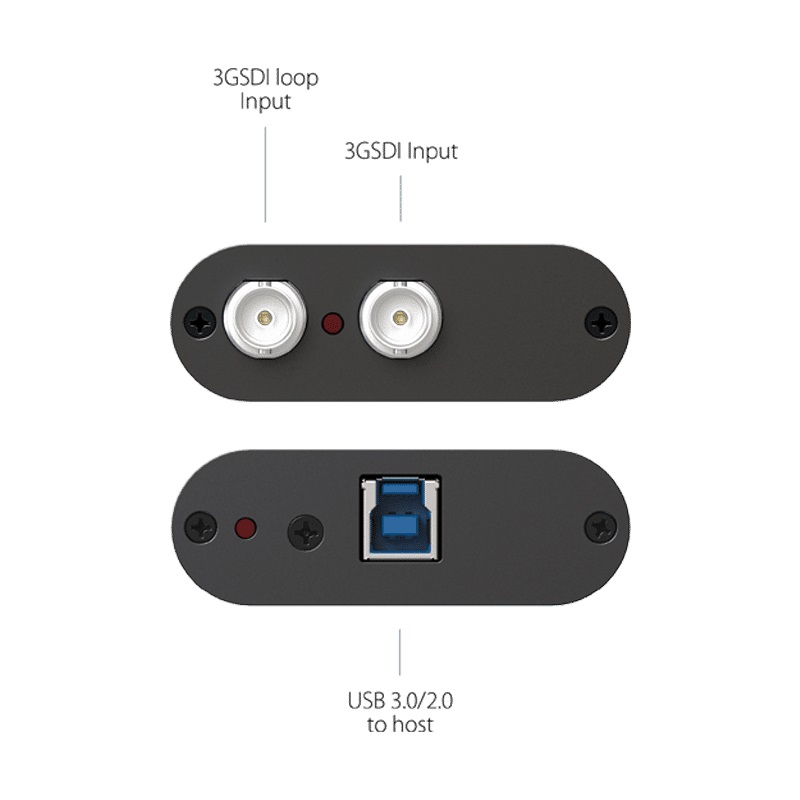

Video input
Connector & video resolutions
1x BNC (3GSDI input)
1x BNC (3GSDI active loop out)
3G: 1080p60/59.94/50 (Level A, B-Dual Link)
HD: 1080i60/59.94/50, 1080p30/29.97/25/24/23.98 and 720p60/59.94/50/30/29.97/25/24/23.98
SD: NTSC/PAL
Jitter (alignment)
HD/SD: <0.2 UI 3 Gb/s: <0.4 UI
Cable length
150m (492 ft.) at 1.485 Gb/s
120m (393 ft.) at 2.970 Gb/s
Frame rates
60, 59.94, 50, 30, 29.97, 25, 24, 23.98 Hz
Color space
YCbCr, 4:2:2
Sampling rate
148.5/148.35 MHz
Embedded audio
Ch 1&2 48kHz LPCM
Video output
Connector & video resolutions
1x BNC (3GSDI active loop out)
Color space
YCbCr 4:2:2
USB - Connector & video resolutions
1x USB 3.0 Type-B
USB - CODECs
YUY2 4:2:2 8-bit for USB 3.0
MJPEG for USB 2.0*
Notes for MJPEG for USB 2.0
* Devices having serial numbers >= SD2036XXX will support MJPEG over USB 2.0. Otherwise, it will be uncompressed video.
USB - Video scaler
Automatic hardware based
USB - Color space conversion
Automatic hardware based
USB - Sampling conversion
Automatic hardware based
USB - Frame rate conversion
Automatic hardware based
Audio
Analog audio I/O
2-channel LPCM audio from SDI
Audio input connector
Ch 1&2 48kHz LPCM from SDI
Compatibility
Operating system
NO driver installation necessary!
Windows 7 and above (32/64-bit)
macOS 10.10 and above
Linux (kernel v2638)

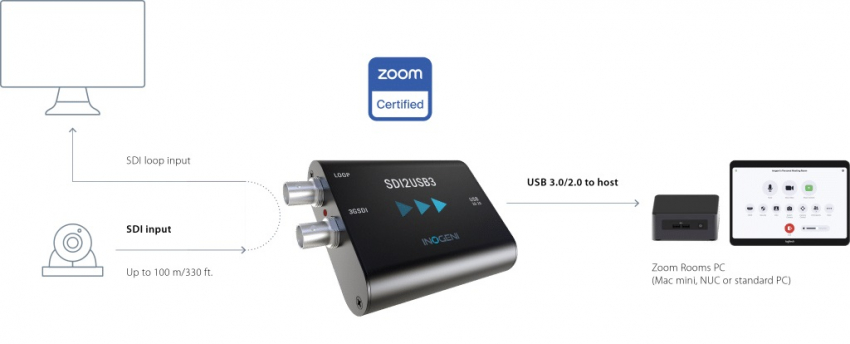

Zoom Rooms compatible
ClickShare Compatible
Certified Microsoft Teams Rooms:
- Crestron’s Automate™ VX is certified for Microsoft Teams Rooms with Crestron cameras and INOGENI’s SDI2USB3. Read the blog.
Minimum host requirements
USB 2.0 port – We recommend USB3.0 for uncompressed video
4GB RAM
Intel Core i5 or equivalent
Graphic card with dedicated memory
Motherboard
Compatible with all motherboards. Intel, Renesas, ASMedia, and Fresco Logic
Supported cameras
Cameras and camcorders with a SDI output
Software compatibility
UVC-compliant Runs with all software compatible to DirectShow, AVFoundation and V4L2 Compatible to: Teams, Zoom, Webex, Google Meet, etc.
Physical details
Dimensions (W x L x H)
8.1cm x 7.4cm x 1.9cm
3.2” x 2.9” x 0.75”
Power supply
Powered by USB (5V / 580mA)
Weight
139 g (0,30 lb)
Package content
1x 3ft USB 3.0 cable (Type-A to Type-B)
Operating temperature
0° to 45° C
32° to 113° F
Storage temperature
-40° to 105° C
-40° to 221° F
Relative humidity
0% to 90% non-condensing
Informations
UPC code
40232250538
Origin
Canada
Warranty
2 years
Certifications
Certifications
FCC, CE, RoHS, IEC62368, SoV, RCM, BSMI RoHS, BSMI, CB, KC, MSIP
TAA-compliant
Yes

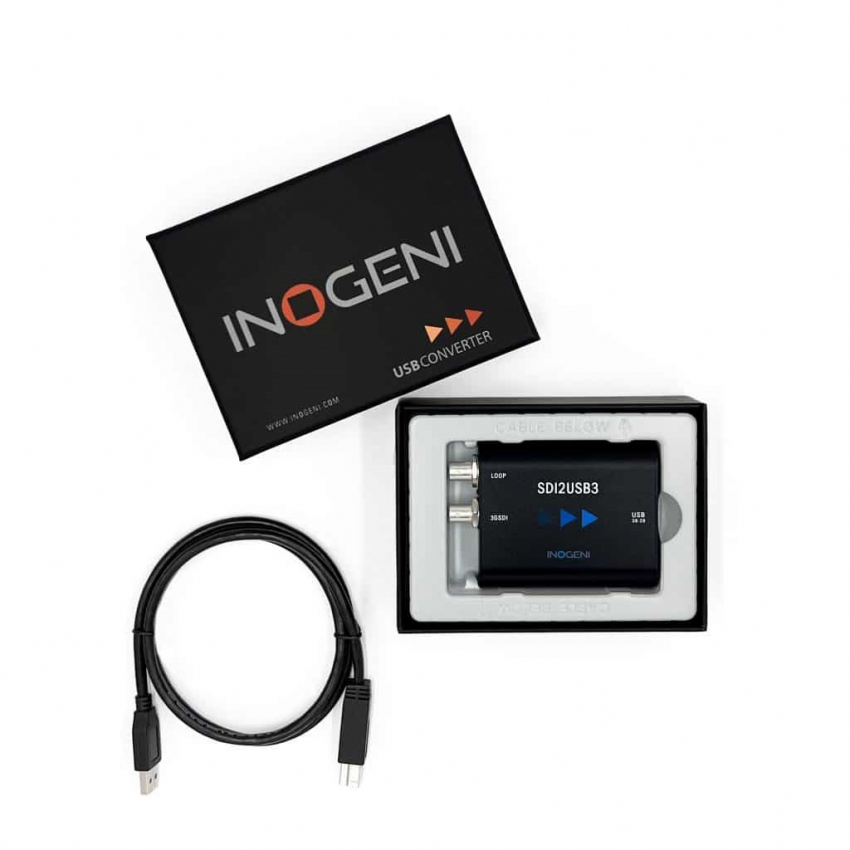

What’s in the box
- 1x 3ft USB 3.0 cable (Type-A to Type-B)
