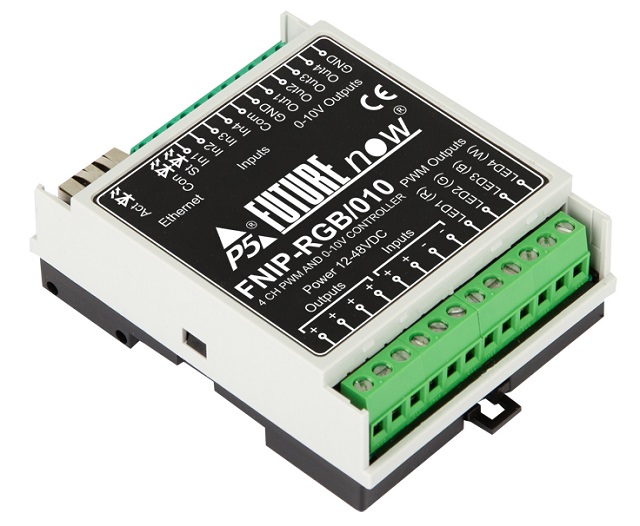

4 channel single color LED lighting or one channel RGB(W) control
- 4 channels of analog 0 – 10V control
- Remote control over LAN
- Local control inputs
- DIN-rail or surface (additional ears needed) mount
- 4 x 0-10V control outputs for valves, fans, lighting, etc.
- 4 x 8A low-voltage, PWM control outputs (max 400W/channel at 48V)
- Simple connection for the LEDs (power is distributed within the module)
- 4 optically isolated multi-purpose digital inputs for contact sensors and manual operation
- Single color, RGB and RGBW LED strip support
- Built-in web server for configuration, control and monitoring
- Color picker
- TCP communication protocol (API) with simple ASCII commands
- Free mobile apps
- Multiple users with different user rights
- Automatic event reporting of input and output status changes
- Firmware upgrade via LAN
- Scenes stored in the modules can be activated from any input on any module on the network.
