- Native PoE pendant-mount loudspeaker for Q-SYS
- 4-inch, full-range driver
- Powered-over-Ethernet enables power, data, and control over a single cable
- Consistent tonal characteristics across the entire NL Series family to let you mix and match form factors
- Q-SYS integrates loudspeaker voicings (Intrinsic Correction™) to simplify the tuning process
- Comprehensive management via Q-SYS Designer Software and Q-SYS Reflect Enterprise Manage
- Available in black (RAL 9011) or white (RAL 9010)

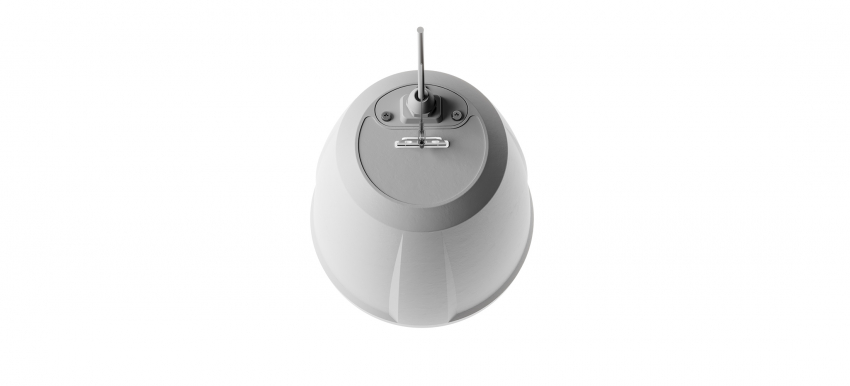

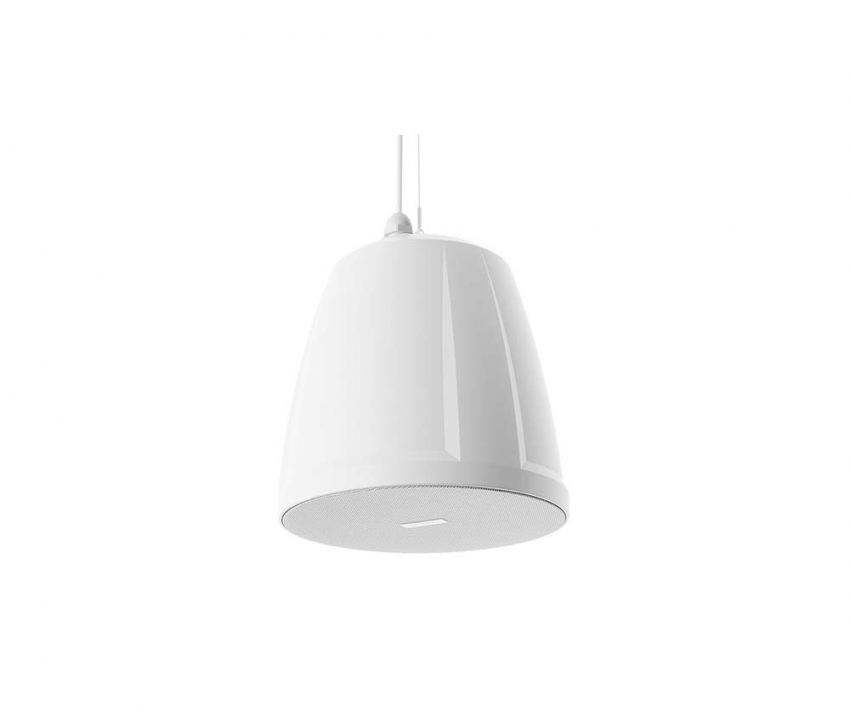

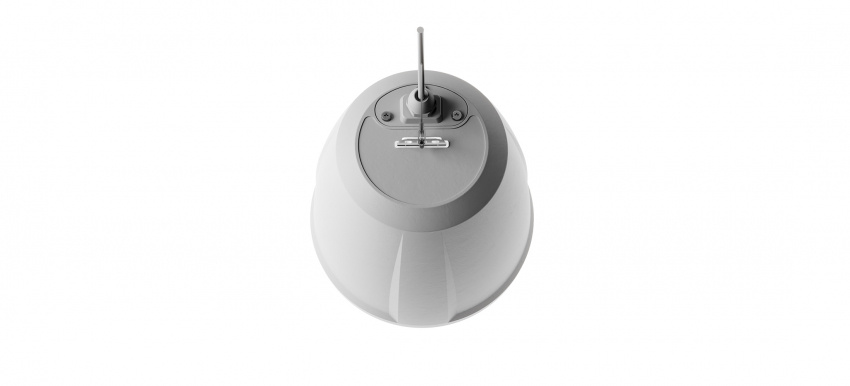

Full-range pendant-mount PoE loudspeaker: The Q-SYS NL-P4 features a 4-inch, full-range driver in a pendant enclosure, ideal for spaces with open ceilings. The loudspeaker delivers both clear speech and music reproduction for any high-value collaboration space.
Mix and Match: NL Series network loudspeakers are built on the same design principles as the QSC AcousticDesign™ Series, featuring a sleek, unobtrusive design along with the same sonic characteristics that allow integrators to mix-and-match form factors to fit the unique needs of any space.

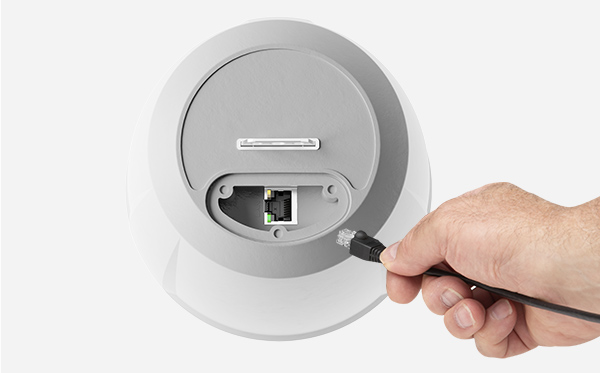

Go Easy: NL Series network loudspeakers are powered-over-Ethernet (PoE), which means native Q-SYS audio data, power and control and are delivered over a single cable, greatly simplifying installation and deployment while reducing rack space requirement.
Intrinsic Correction™: Q-SYS automatically integrates loudspeaker voicings (Intrinsic Correction™) to simplify the tuning process.
Remote Monitoring and Management: NL Series network loudspeakers are the first loudspeakers that can be automatically monitored and managed by Q-SYS Reflect Enterprise Manager every step of the way, from the audio source all the way through the loudspeaker driver.
Designed for Q-SYS: Q-SYS NL Series PoE loudspeakers are native to Q-SYS, a cloud-manageable audio, video and control platform, built to deliver scalable, flexible AV solutions into the future
| Specificiations | NL-P4 |
| Loudspeaker type | Network PoE pendant-mount loudspeaker for Q-SYS |
| Driver | 4-in (101.6 mm) full-range, paper cone woofer, ferrite magnet |
| Effective frequency range | 90 Hz - 20 kHz |
| Rated noise power / voltage (W rms) | 12 W (PoE), 24 W (PoE+) |
| Rated coverage (-6 dB) | 100° |
| Directivity factor | 5.3 |
| Directivity index | 7.2 dB |
| Maximum continuous SPL | 94 dB (PoE), 97 dB (PoE+) |
| Maximum peak SPL | 108 dB (PoE), 111 dB (PoE+) |

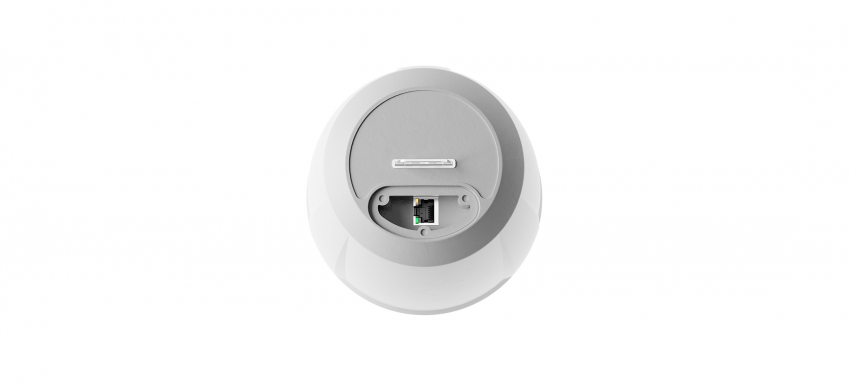

| Input connector type | RJ45, Q-LAN |
| Enclosure material | ABS baffle on powder steel back can |
| Grille material | Powder coated steel |
| Ingress protection | IP34 |
| Net Weight | 2.88 lbs (1.31 kg) |
| Product dimensions (diameter x height) | 6.81 x 7.83 in (173 x 199 mm) |
| Operating environment | Designed for indoor use, IP34 ingress protection for weather protected outdoor spaces |
| Operating temperature range | -20° to 50° C |
| Included accessories | Quick-link cable assembly (length: 128 in / 3.25 m; thickness: 2 mm), slip-lock fastener, sealable input cover and screws, snapfit magnetic grille |
| Safety agency | UL/IEC 62368-1 |
| Power requirements | PoE (Type 1 Class 3) or PoE+ (Type 2 Class 4) |
