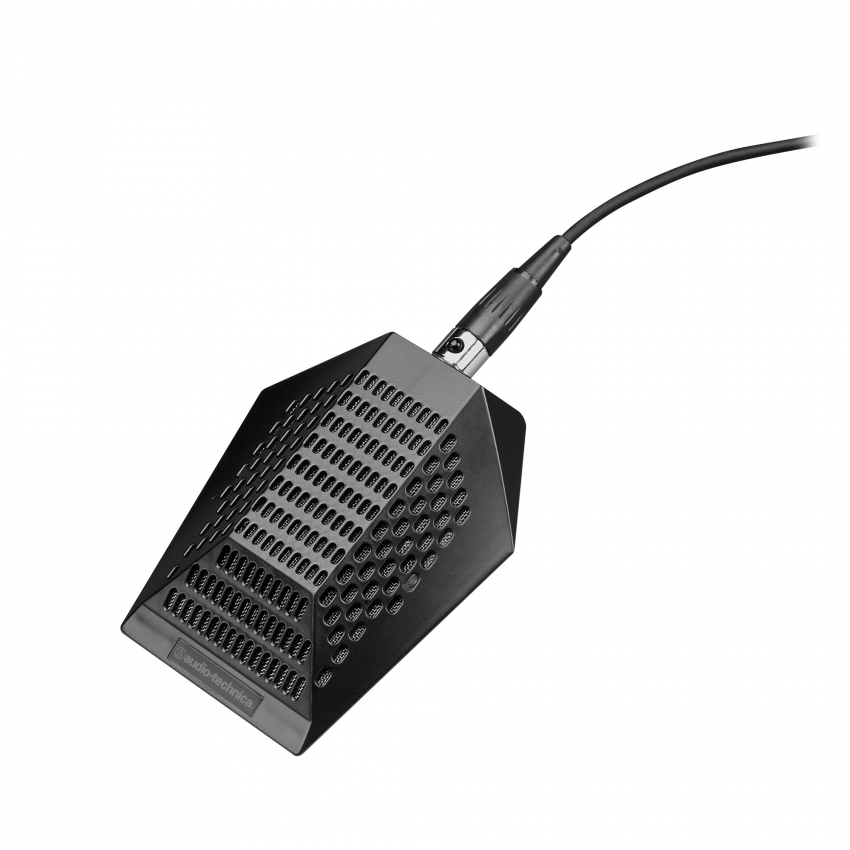

- Low profile for minimum visibility
- Wide-range condenser element with low-mass diaphragm for superior performance
- Self-contained electronics eliminate need for external power modules
- Rugged design and construction

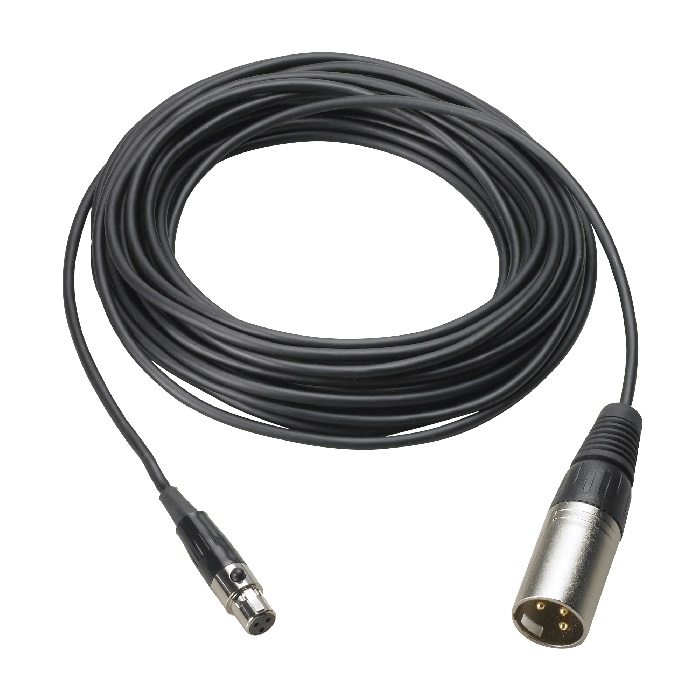

- 25' (7.6 m) detachable cable (TA3F to XLRM-type)
Specifications
| Microphones | |
|---|---|
| Element | Condenser |
| Polar Pattern | Half-cardioid (cardioid in hemisphere above mounting surface) |
| Frequency Response | 70 - 16,000 Hz |
| Open Circuit Sensitivity | -25dB (56.2mV) re 1V at 1 Pa |
| Maximum Input Sound Level | 114 dB SPL, 1 kHz at 1% T.H.D. |
| Dynamic Range | 86 dB, 1 kHz at Max SPL |
| Signal-to-Noise Ratio | 66 dB, 1 kHz at 1 Pa |
| Phantom Power Requirements | 9-52V, 2 mA typical |
| Weight | 67 g |
| Cable | 25' (7.6 m) long, with TA3F and XLRM-type connectors |
| Dimensions | 2.87" (73.0 mm) maximum width, 3.56" (90.5 mm) maximum length, 0.59" (15.0 mm) height |
| Output Connector | Integral 3-pin XLRM-type |
