PS-TSCG3-G

PS-TSCG3-G

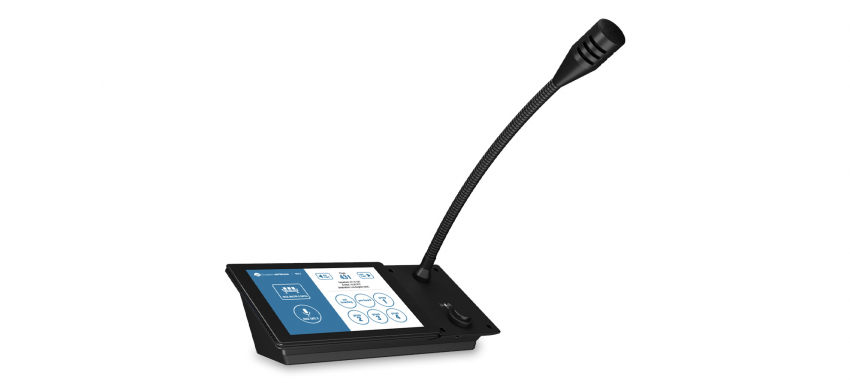

Paging Station för bord, 7" touchpanel, svanhalsmikrofon

Varumärke:Q-SYS
Artnr: QSC-PS-TSCG3-G

Egenskaper

PS-TSCG3-G

Produkt:
Företag:
Namn:
Tel.
E-post:
Ditt meddelande:
Jag vill ha en offert Jag vill ha en demo

Produktinformation

The Q-SYS PS-TSCG3 Touchscreen Paging Station pairs with the TSC-70-G3 touchscreen and Q-SYS control engine to enable paging applications across transportation, education, hospitality, entertainment and beyond. By leveraging Q-SYS Control capabilities, the Q-SYS PS-TSCG3 paging peripheral provides live paging and pre-recorded message playback, alongside traditional functions such as BGM management and device control in a modernized way.

Features & Benefits

  • PS-TSCG3-G: desktop model with replaceable gooseneck microphone and an embedded push-to-talk button
  • PS-TSCG3-H: wall-mount model with replaceable handheld microphone and an integrated push-to-talk button
  • Turnkey paging solution for Q-SYS TSC-70-G3 touchscreen
  • Customizable user control interface via Q-SYS control engine
  • Supports standard paging elements and non-paging control elements

Note: This product requires a UCI Deployment license and will be supported in Q-SYS Designer Software v9.12

  • Modernized User Experience
    The Q-SYS Control engine allows you to design fully customized user control interfaces that combine paging functions with device control based on how the space is utilized. It also removes the need for inputting PIN codes for page zone destinations, resulting in a more modern and intuitive user experience.
  • Complete Q-SYS Paging Solution
    The Q-SYS PS-TSCG3 Touchscreen Paging Station lets you take advantage of all existing Q-SYS paging functionality, including priority levels message queueing, preamble playback, pre-recorded message playback and more.
  • The Right Option for any Space
    Available in two models, this page station solution is available as either a desktop model with a replaceable gooseneck microphone and an embedded push-to-talk button (PS-TSCG3-G), as well as a wall-mount model with a replaceable handheld microphone and an integrated push-to-talk button (PS-TSCG3-H). For greater flexibility, you can also choose to configure a wall-mount paging station (PS-TSCG3-H) into a desktop model with a desktop base accessory (PS-DB).


SPECIFICATIONSPS-TSCG3-G
Compatible Touch ScreenQ-SYS TSC-70-G3
TypeProjective capacitive (PCAP) multi-touch, high-resolution 24-bit color display
Viewable screen dimensions (diagonal)7 in (177.8 mm)
Resolution1280 x 800 px
Aspect Ratio16:10
Contrast Ratio850:1
Brightness450 Nits
Customizable LED status indicatorsYes
SensorsAmbient Light Sensor, Proximity Detection
Audio
Polar patternCardioid
Frequency response (-10 db relative to 1 KHz)  100 Hz to 16 KHz
Sensitivity-75 dB ± 3 dB (0 dB = 1 ubar @ 1 KHz)
General
Dimensions (not including TSC-70-G3)12.8 x 7.68 x 8.86 in (325 x 195 x 225 mm)
Weight (not including TSC-70-G3)2.6 lbs (1.18 kg)
LAN1x RJ45, 1 Gbps
PoE (Power over Ethernet)IEEE 802.3af Type 1 Class 3 (PoE)
USBType C, USB 3.1
Optional accessoriesN/A
Environmental
Ambient operating temperature range0°-50° C (32°-122° F)
Humidity5-85% RH non-condensing
Storage temperature-20° to 70° C
