Features
- Matrix switching of 4 HDMI signals to 4 HDMI outputs
- Supports 18Gbps for resolutions up to 4K UltraHD 60Hz
- Analog and digital audio de-embedding, integrated audio matrix
- Downscaling (4K - 1080p) on 2 outputs, 2.5W power via HDMI for AOC
- Control via TCP/IP, web-GUI, CEC, RS232 and IR

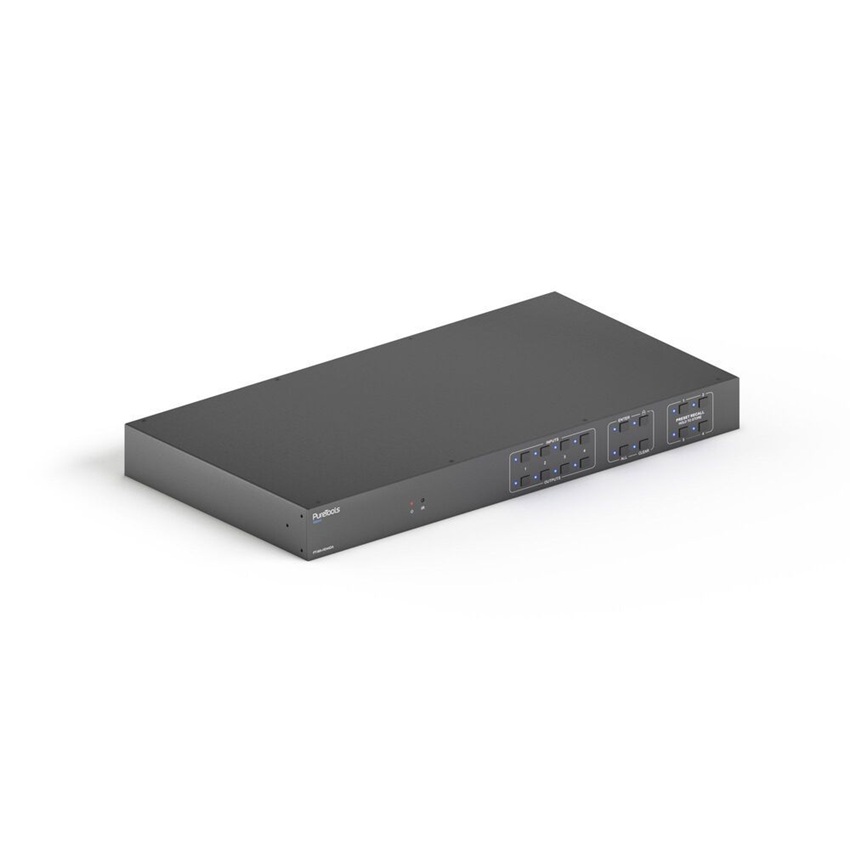

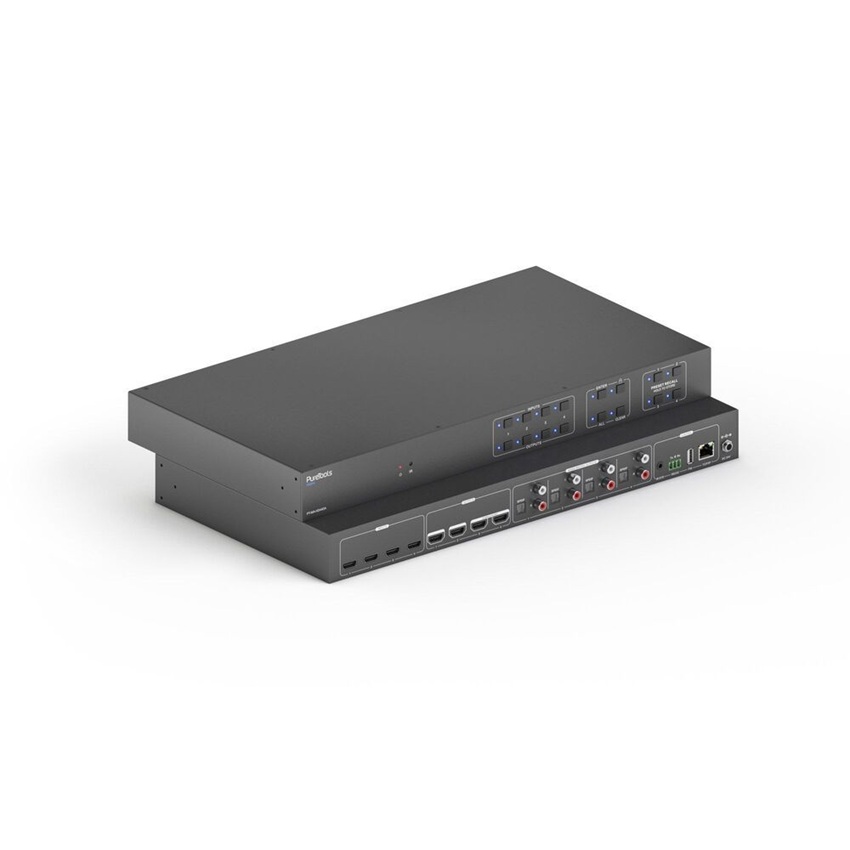

4x4 4K 18Gbps HDMI Matrix Switcher with Downscaler and Audio Matrix
The PT-MA-HD44DA is a professional 4x4 HDMI 2.0 matrix switcher with an included audio matrix for switching 4 HDMI inputs to 4 HDMI outputs, designed for HDMI2.0 and HDCP2.3 compliant signals. The last two HDMI outputs feature a 4K to 1080p downscaling function. It also features 4 S/PDIF and 4 analog audio outputs for audio matrix functions. It features comprehensive EDID management and advanced HDCP handling to ensure maximum functionality with a wide range of video sources. It not only supports bi-directional IR and RS232 extensions but also has IR, RS232, and TCP/IP control options.
The PureTools Series - High Quality AV Products for Commercial Applications
- HDMI 2.0 Matrix Switcher with 4 HDMI inputs to 4 HDMI outputs
- Supports resolutions up to UltraHD 4K 60Hz (4:4:4) incl. HDR
- HDCP2.3 compliant
- Audio matrix - audio out can de-embedded from arbitrary input or output
- Individual volume adjustment on each analog output
- Supports 4K to 1080p down-scaling on up to 2 HDMI outputs
- AOC ready: HDMI provides 2.5W / 5V to power Active Optical Cables (AOC)
- HDMI output supports up to 5V / 500mA for AOC cables
- Controllable via front panel, IR, RS232 and TCP/IP
- Supports resolutions up to UltraHD 4K 60Hz (4:4:4) incl. HDR
- HDCP2.3 compliant
- Audio matrix - audio out can de-embedded from arbitrary input or output
- Individual volume adjustment on each analog output
- Supports 4K to 1080p down-scaling on up to 2 HDMI outputs
- AOC ready: HDMI provides 2.5W / 5V to power Active Optical Cables (AOC)
- HDMI output supports up to 5V / 500mA for AOC cables
- Controllable via front panel, IR, RS232 and TCP/IP
