Features
- 4K (60Hz 4:2:0) , USB-C up to 4K (30Hz 4:4:4) HDMI 1.4 standard and HDCP 2.2
- HDBaseT transmission of 4K@60Hz up to 40m and 1080P@60Hz up to 70m

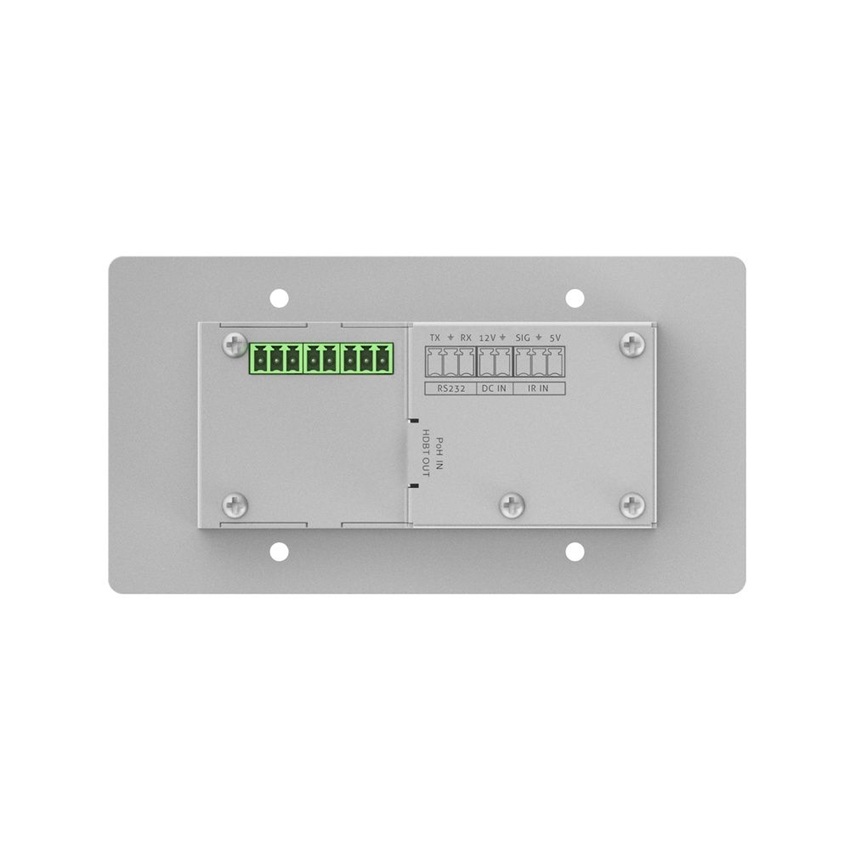

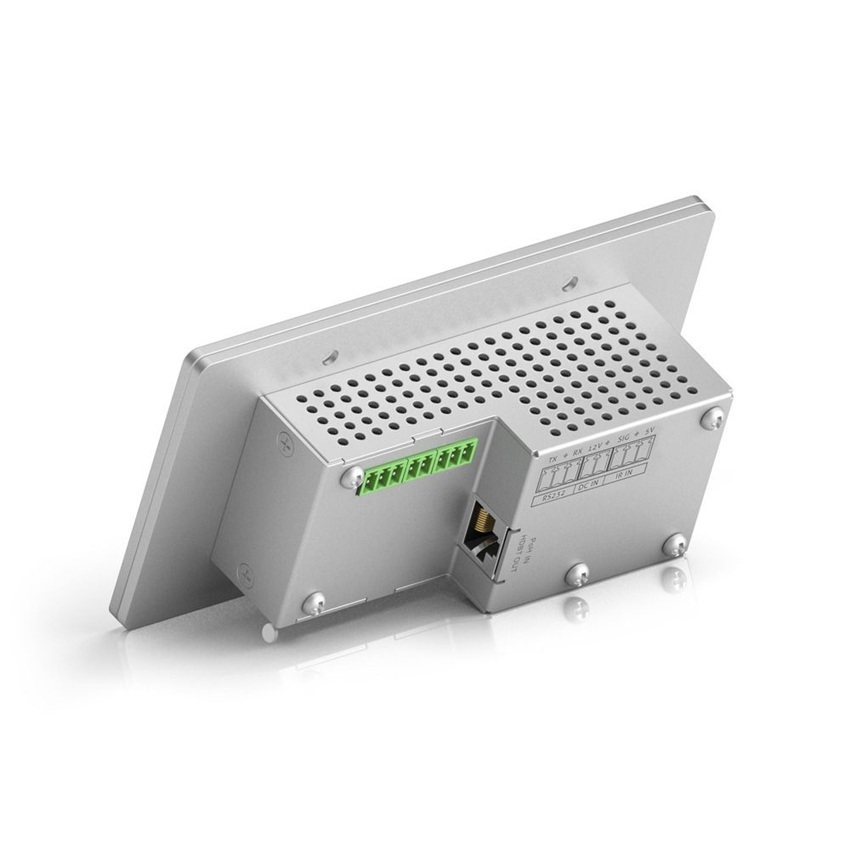

- IR pass-through and RS232 pass-through for HDBaseT connection and local control
- DISPLAY ON/OFF button can be programmed by IR learning feature or RS232 command

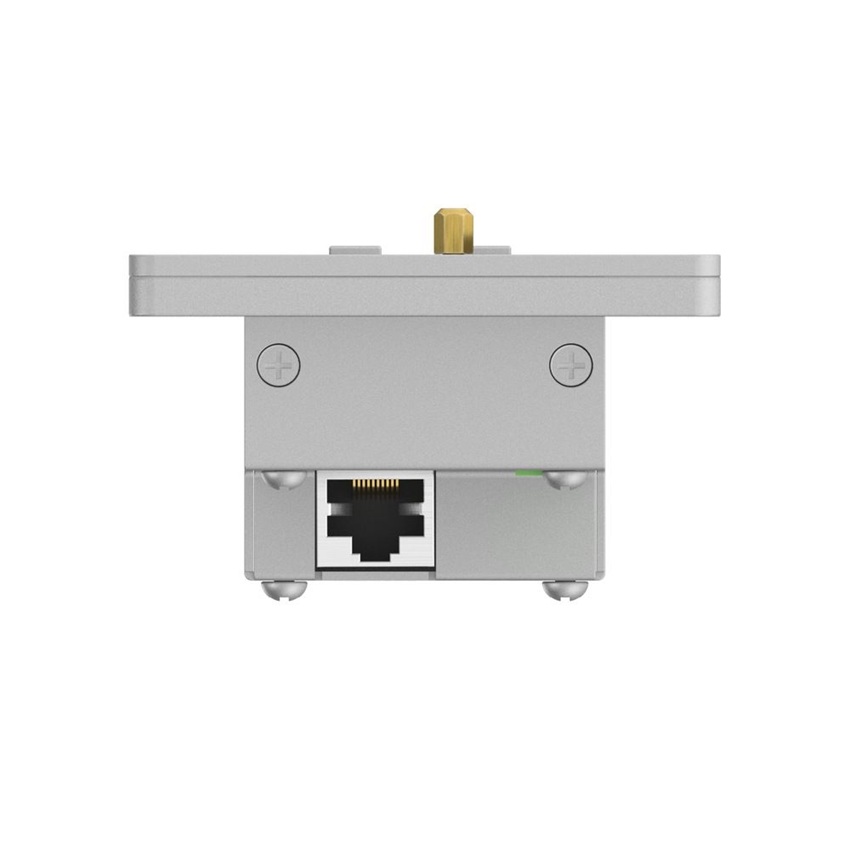

- The HDBT port supports 12V-48V PoC from a receiver by the Cat.x cable and also 12V-24V PoC output
PureTools HDBaseT Wallplate Transmitter with Frame, 2x HDMI & USB-C Inputs, 4K, 40m 4K / 70m 1080p

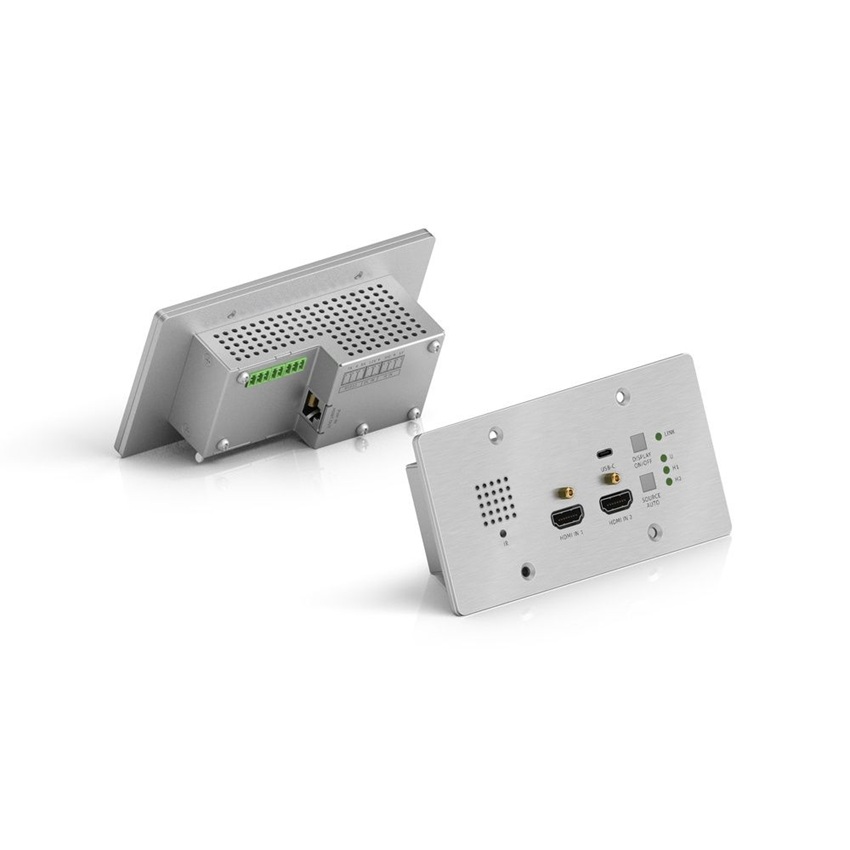

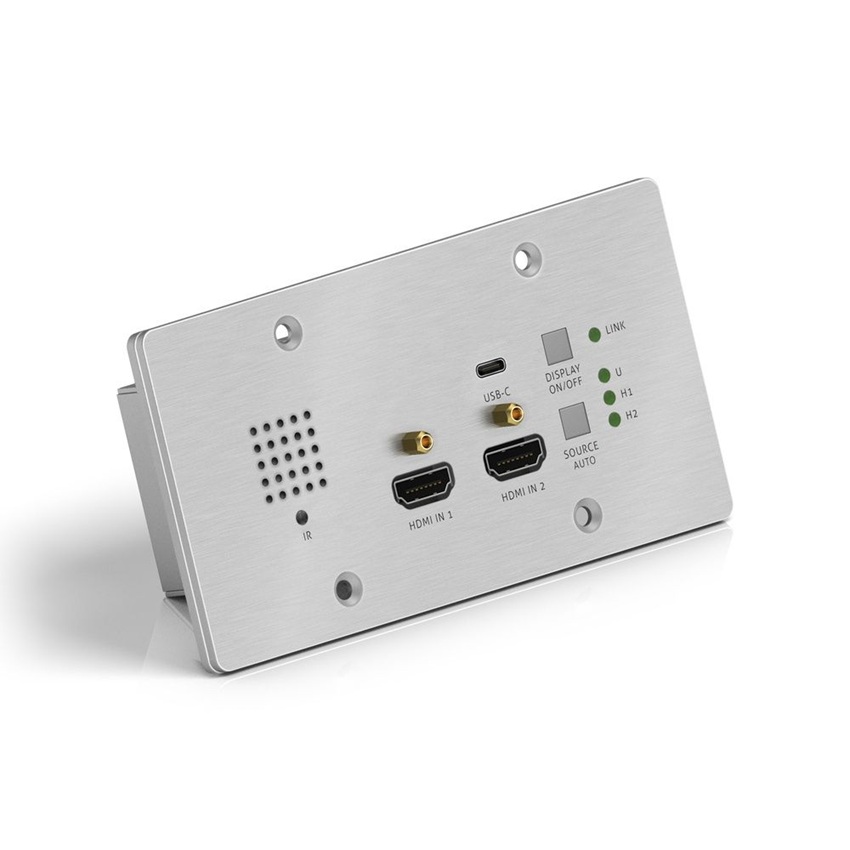

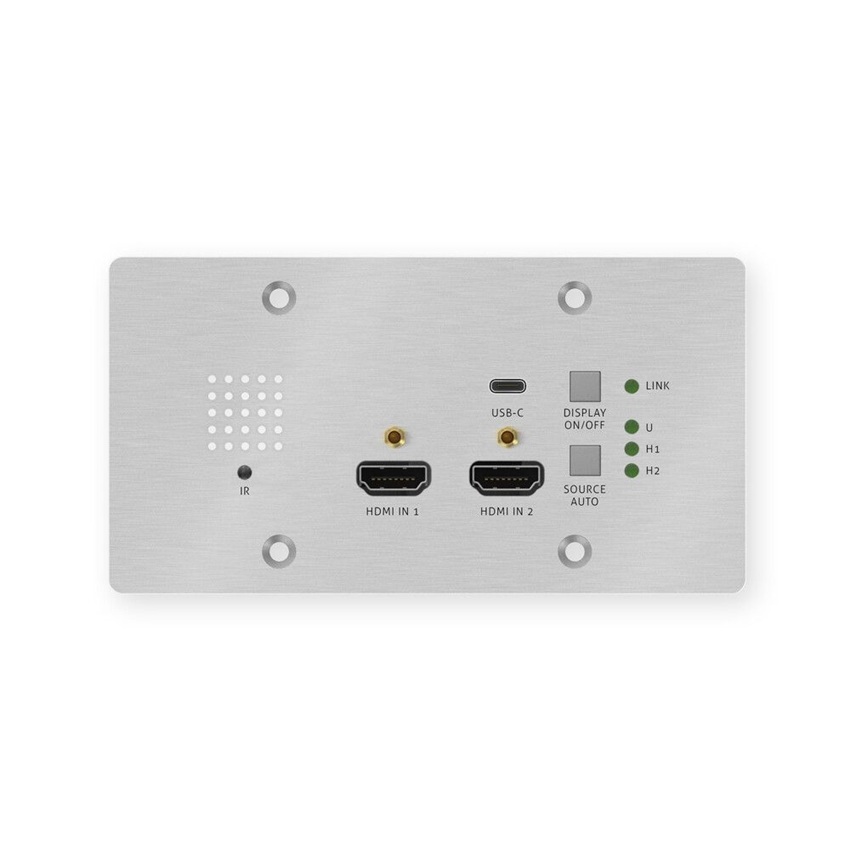

The PT-HDBT-703-TXWP-F 3x1 Wallplate Transmitter Switcher is designed to switch and extend HDMI or USB-C input signals to far-end display devices. The transmission distance is up to 40m at 4K and 70m at 1080P over a single Cat.x cable. The switcher features 2x HDMI and 1x USB-C input, it can be selected by the SOURCE AUTO button on the front panel. The switcher supports CEC. The DISPLAY ON/OFF button on front panel is used to control the far-end display device, and can be programmed via IR learning or RS232 commands, to ensure compatibility with various display devices. The 12V-48V PoC allows the switcher to be powered from a compatible HDBaseT receiver.
HDBaseT Wallplate for HDMI and USB-C Transmission
PureTools HDBaseT Wallplate Transmitter with Frame,4K (60Hz 4:2:0) , USB-C up to 4K (30Hz 4:4:4) HDMI 1.4 standard and HDCP 2.2. HDBaseT transmission of 4K@60Hz up to 40m and 1080P@60Hz up to 70m. IR passthrough and RS232 pass-through for HDBaseT connection and local control. DISPLAY ON/OFF button can be programmed by IR learning feature or RS232 command. The HDBT port supports 12V-48V PoC from a receiver by the CATx cable, and also 12V-24V PoC output.
