Features

• Matrix switching of 2 HDMI / HDBaseT signals to 2 HDMI / HDBaseT outputs
• Supports 18Gbps for resolutions up to 4K UltraHD 60Hz
• Auto Sense: HDMI 5V (HPD) or active videostream (TMDS switching)
• D/A audio de-embedding, downscaling (4K - 1080p), PoC and PoH support
• HDBaseT up to 40m (4K), 70m (1080p), control via web-GUI, CEC, RS232 and IR

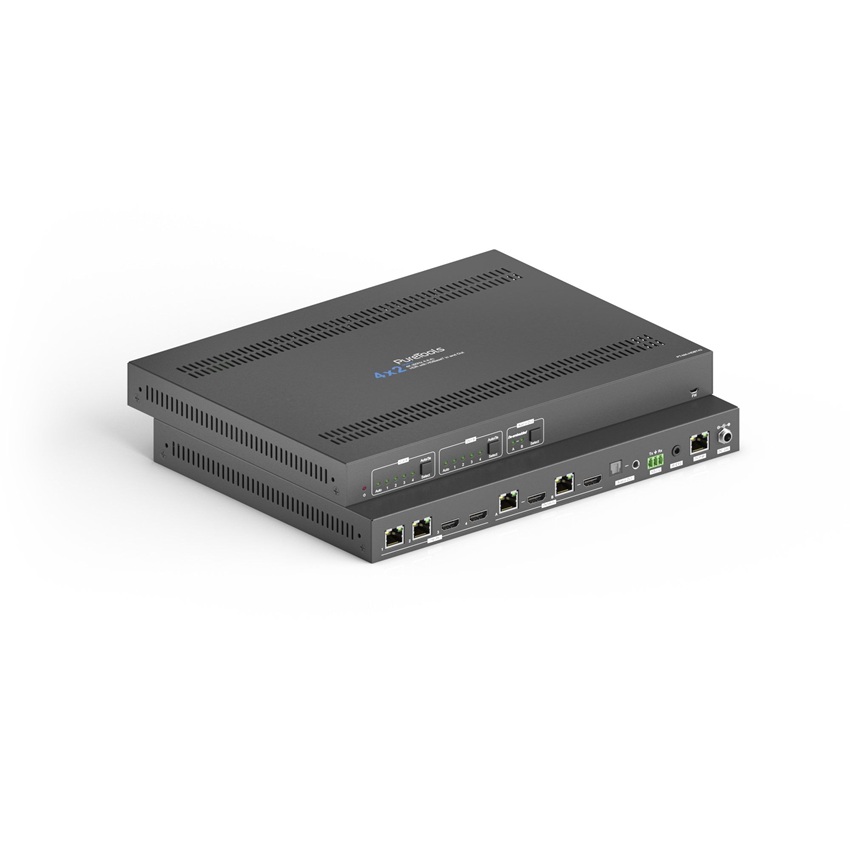

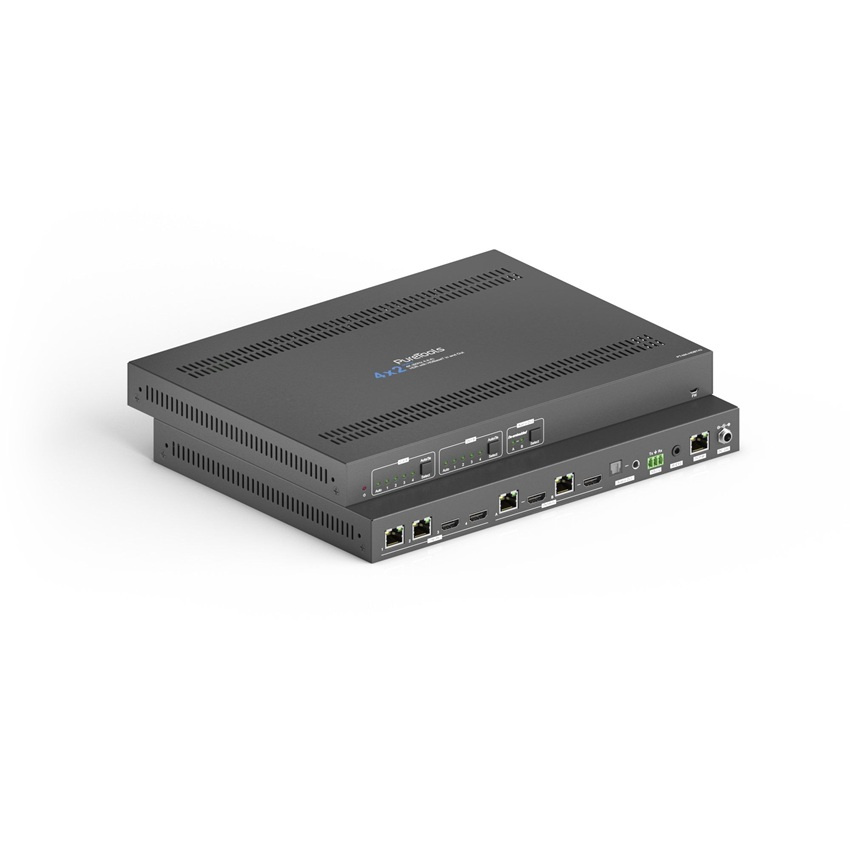

4x2 4K 18Gbps Multiformat HDBaseT Matrix Switcher with Downscaler

The 4x2 4K HDMI and HDBaseT Matrix Switcher PT-MA-HDBT42 distributes two HDBaseT as well as two HDMI signals to two HDBaseT outputs with a mirrored HDMI loop-out each. The matrix switcher supports HDMI 2.0 for resolutions up to 4K / UltraHD 60Hz (4:4:4) incl. HDR formats such as Dolby Vision. 4K signals are transported up to 40m and 1080p signals up to 70m via HDBaseT over a single Cat cable. The integrated 4K to 1080p downscaler, the digital and analog audio de-embedding as well as automatic signal switching functions in combination with a variety of control and rack integration options make this matrix a perfect choice for professional installations.

The PureTools Series - High Quality AV Products for Commercial Applications

- 2 HDBaseT and 2 HDMI inputs to 2 mirrored HDBaseT / HDMI outputs
- 18Gbps for resolutions up to UltraHD 4K 60Hz (4:4:4) with HDR10 and Dolby Vision support
- Supports HDCP 2.2
- 4K to 1080p downscaling
- 4K over 40m and 1080p over 70m via HDBaseT incl. PoC
- Digital (optical) and analogue audio de-embedding
- RS232, IR, GUI and EDID DIP switch support
