Features

• Distributes 1 HDMI signals to up to 16 HDMI outputs
• Supports HDMI 2.0 with 18Gbps for resolutions up to 4K UltraHD 60Hz
• Incl. 4K to 1080p downscaler and signal repeater for longer HDMI runs
• EDID management, 6-fold cascading
• Audio de-embedding analog stereo (L/R RCA)

1x16 4K 18Gbps HDMI Splitter with Downscaler and Audio De-Embedding

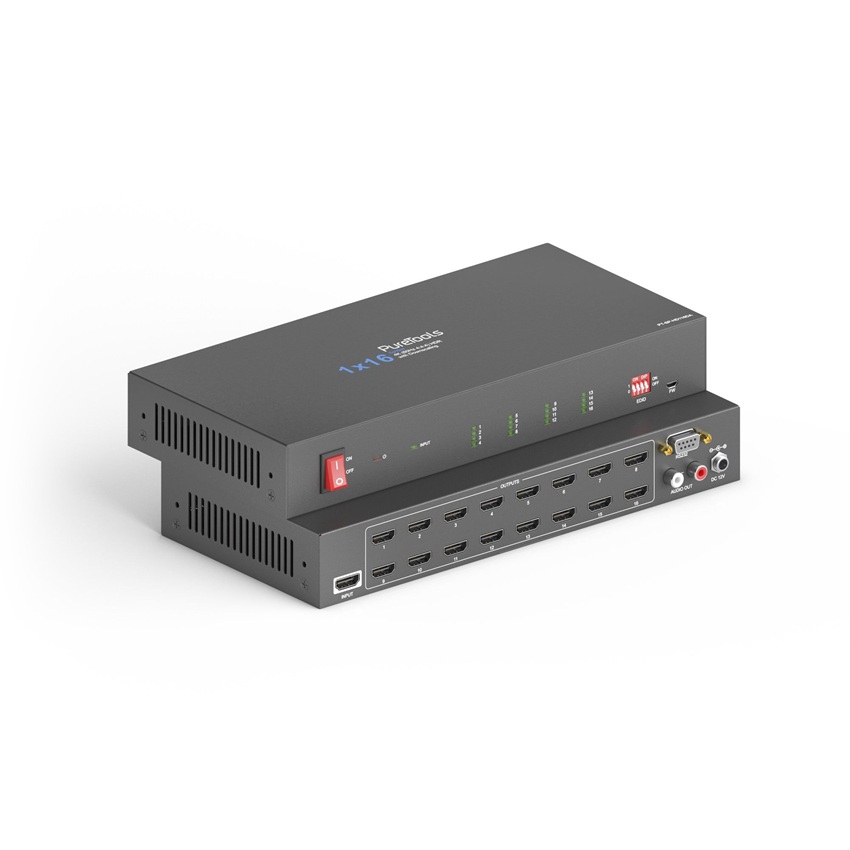

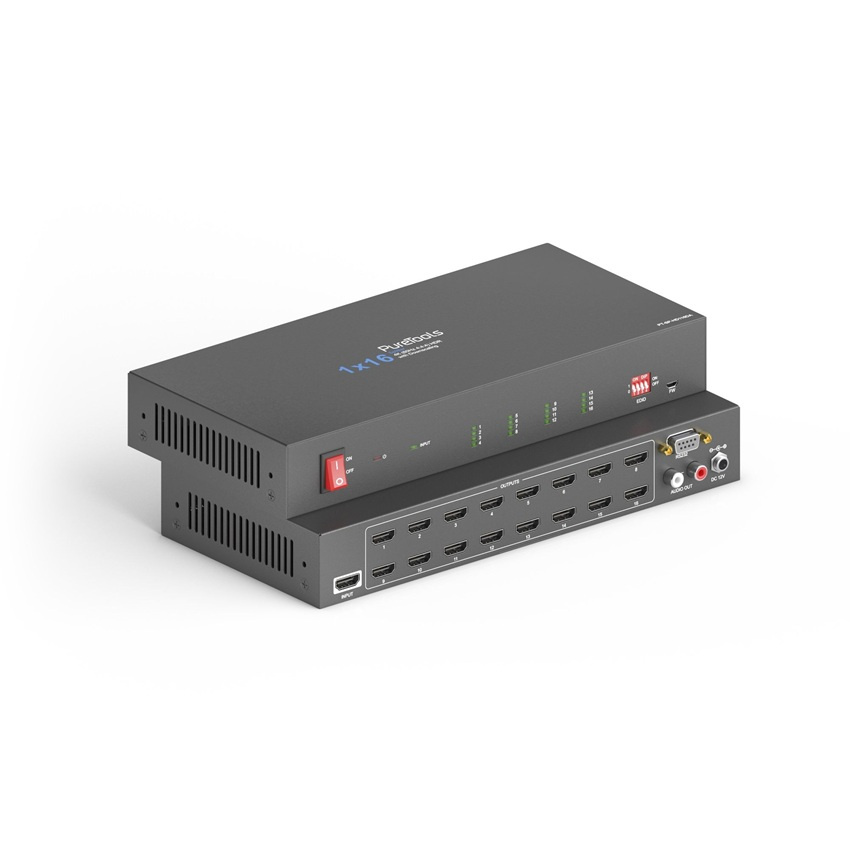

The PT-SP-HD116DA 1x16 HDMI 2.0 splitter distributes one HDMI input to sixteen HDMI outputs. The splitter supports resolutions up to UltraHD 4K 60Hz (4:4:4) incl. HDR 10 and Dolby Vision. It features an advanced EDID management option using the 4-pin DIP switch on the front panel of the unit. It also supports downscaling, so a 4K video input can automatically be downscaled to a 1080p output when connecting a 1080p display. A stereo analog audio output is provided for audio de-embedding from HDMI. The splitter supports control options via CEC and RS232.

The PureTools Series - High Quality AV Products for Commercial Applications

- 1x16 HDMI 2.0 Splitter with 1 HDMI input and 16 HDMI outputs
- 18Gbps UltraHD 4K 60Hz (4:4:4) incl. HDR10 and Dolby Vision
- HDCP 2.2 compliant
- AOC cable support - each port delivers up to 5V/100mA
- Auto 4K to 1080p downscaling
- Stereo analog audio de-embedding from HDMI
- Smart HDCP management
- Smart EDID EDID management via DIP switch
- RS232 and CEC control
