4K UHD
NDI® | HX3
20X USB2.0 Optical Zoom
20x optical zoom
It adopts 4K ultra long focal lens with high quality and 8 million ultra-high resolution, 20 times optical zoom, and the maximum field angle is 60 °.
Low illumination
The new CMOS image sensor with ultra-high sex noise ratio can effectively reduce the image noise under low illumination. The application of 3D noise reduction algorithm can greatly reduce the image noise. Even under ultra-low illumination, the picture remains clean and clear, and the image signal-to-noise ratio is more than 55dB.

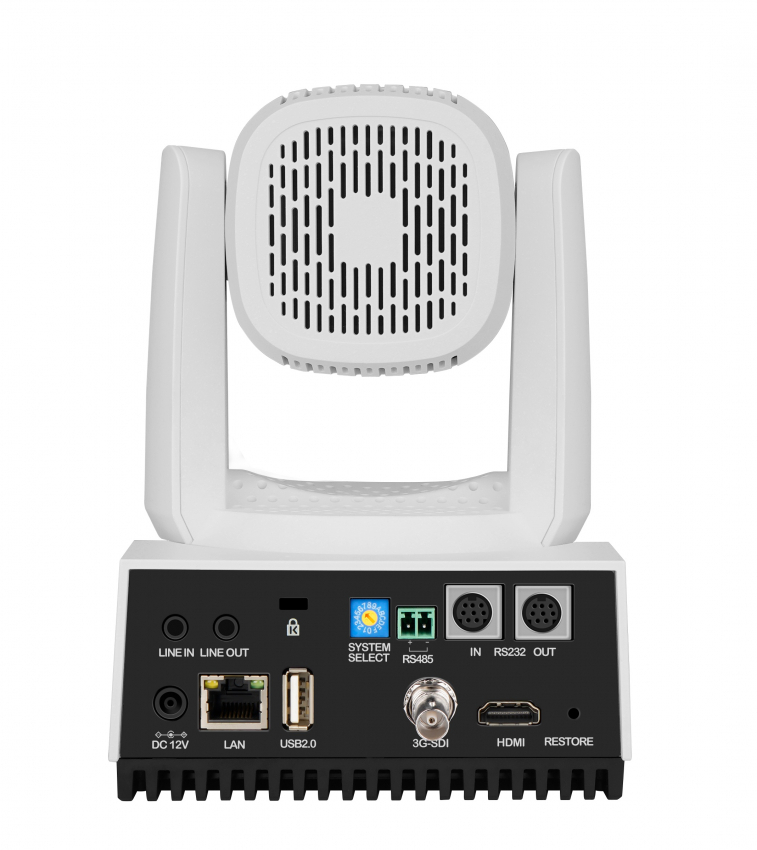

Rich and perfect interfaces
Support hdmi2.0 HD output, equipped with 3g-sdi interface, 3G-SDI effective transmission range up to 150 m (1080p30). HDMI or 3g-sdi, USB and LAN can output 3 HD digital signals at the same time.
Remote control
Multiple control modes, RS232, RS485, network and USB can be used to control the camera.
Gravity sensor(Optional)
It supports the automatic image flipping function, which is convenient for engineering installation and use.
1-ch, USB2.0, Type-A(Can be configured as Host or Device by software)
1xRS232 In: 8pin Min DIN, Max Distance: 30m,
Protocol: VISCA/Pelco-D/Pelco-P
AI tracking
1xRS232 Out: 8pin Min DIN,
Max Distance: 30m,
Protocol: VISCA network use only
With the help of the AI computing power of the chip, the camera is equipped with advanced AI algorithms to realize monocular humanoid tracking, which can realize automatic tracking of scenes such as education, conferences and live broadcasts.
NDI®丨HX3
NDI® l HX3 has the characteristics of low delay and plug and play, which is convenient for project implementation and deployment. It has a good ecology and supports the simultaneous transmission of audio, video and control commands. It is a new generation of network video transmission mode.
4K UHD
The new generation of Sony 1 / 1.8-inch high-quality UHD CMOS sensor with a maximum of 8.42 million pixels can realize 4K (3840x2160) ultra-high-resolution high-quality images. And downward compatible with 1080p, 720p and other resolutions.
HDMI2. 0
Support hdmi2 0 interface, which can directly output 4kp60 uncompressed digital video.
