- USB 3.2 (Gen 2x1) – 10Gbps data transmission
- Gold plated precision contacts
- USB-C male to USB-C male
- High purity copper conductors and triple shielding
- E-Marker, USB Power Delivery 60W, DP Alt-Mode up to 8K 30Hz
PureLink® - PureInstall Series: Premium Active USB-C to USB-C Cable
Experience unparalleled connectivity and performance with the PureLink® PureInstall Series active USB-C to USB-C cable. This premium cable is designed to deliver high-speed data transmission and efficient power delivery for a seamless user experience.
USB 3.2 (Gen 2x1) – 10Gbps Data Transmission: Enjoy lightning-fast data transfer speeds with the USB 3.2 (Gen 2x1) standard, providing a maximum data transfer rate of 10Gbps.
Gold Plated Precision Contacts: The cable features nickel-plated USB-C connectors with gold-plated precision contacts on both ends, ensuring reliable and stable connections.
USB-C Male to USB-C Male: Connect two devices with USB-C sockets seamlessly with this male to male USB-C cable.
High Purity Copper Conductors and Triple Shielding: Benefit from high-quality construction with high-purity copper conductors and triple shielding, providing optimal signal transmission and protection against interference.

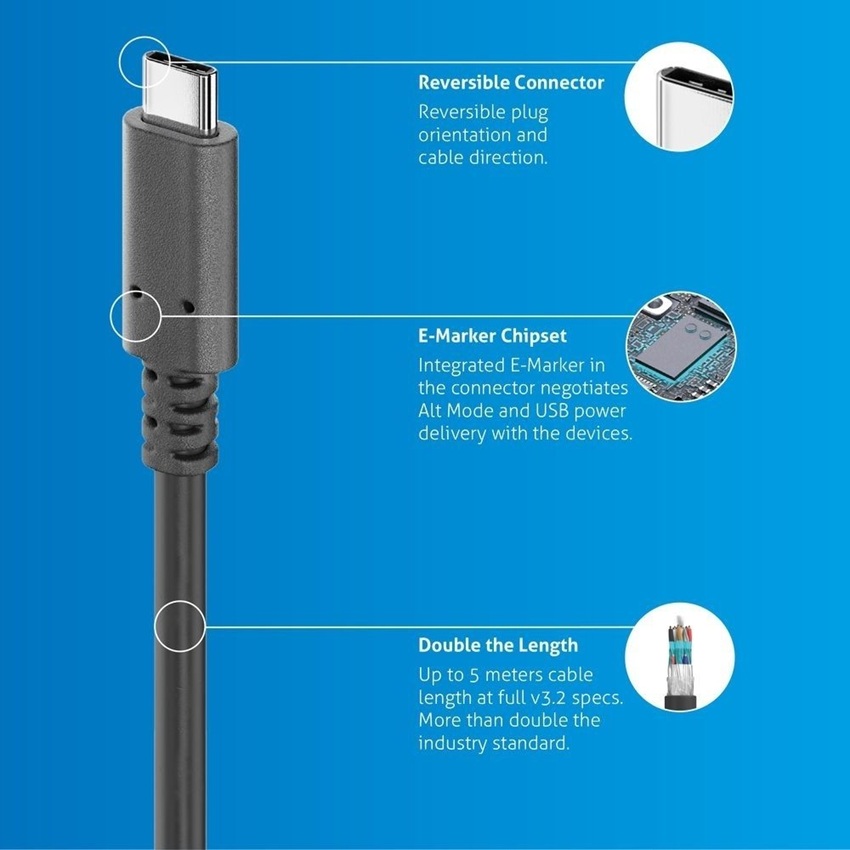

E-Marker, USB Power Delivery 60W, DP Alt-Mode up to 8K 30Hz: This cable is equipped with an E-Marker chipset, supporting USB Power Delivery with a maximum of 60W, DisplayPort Alt-Mode for up to 8K resolution at 30Hz, and efficient power and control signal transmission.

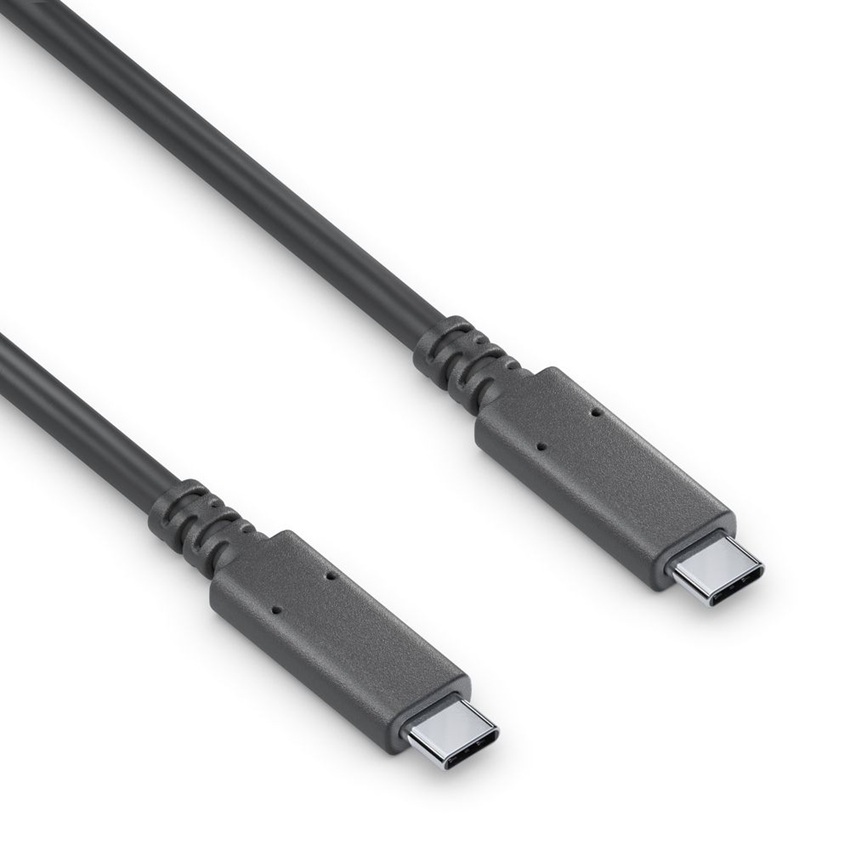

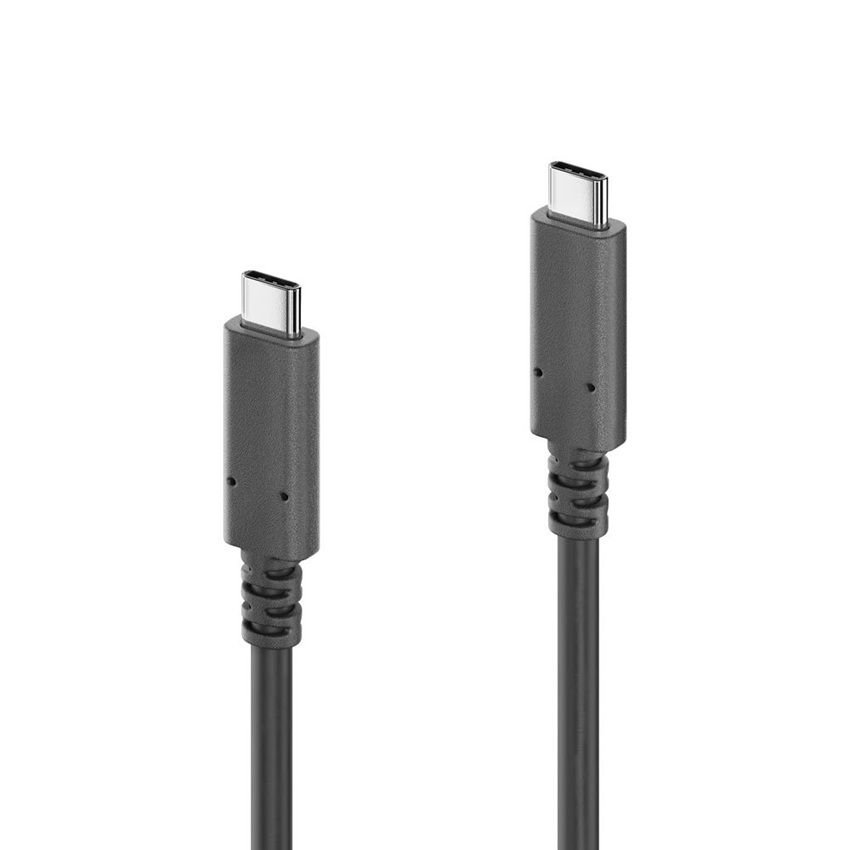

The PI6000-050 in PureLinks PureInstall series is a 5.00 meter long active Premium USB-C cable connecting two devices with USB-C sockets according to the USB 3.2 (Gen 2x1) standard with a maximum data transfer rate of 10Gbps. The cable features nickel-plated USB-C connectors with gold-plated precision contacts on both sides as well as high-purity copper conductors with triple shielding. The cable is equipped with an E-Marker chipset and can thus also be used as a charging cable for USB-C devices using USB Power Delivery with max. 3A / 20V / 60W or 3A / 5V / 15W without USB Power Delivery. It also supports DisplayPort Alt-Mode for transferring data, AV streams with max. 8K / UltraHD-2 30Hz as well as power and control signals via a single connection.
The USB-C only cables (PI6000) are equipped with E-Marker chipset and therefore support USB Power Delivery (USB PD) with up to 5A / 20V / 100W. They are also compatible with the "DisplayPort Alt-Mode" and can therefore be used for the transmission of AV streams in addition to data and power transmission, provided that the source and display device also support the DP Alt-Mode. The transmission is according to DisplayPort 1.4 / 1.2 Alt-Mode standard and supports resolutions up to 8K / UltraHD-2 with 30Hz. When transmitting DisplayPort 1.4 AV signals via Alt-Mode, the cables support a maximum data rate of the USB 2.0 specification for the simultaneous data connection. A full data rate can be achieved if the simultaneous AV resolution matches the DisplayPort 1.2 specification.
USB Alt-Mode also enables the connection of USB docking stations with multiple USB and separate AV ports as well as USB Power Delivery.
All cables with USB-A connector (PI6100) include no E-Marker and do not support DisplayPort Alt-Mode as well as USB Power Delivery. Their maximum charging power is 3A / 5V / 15W.
The cables in this range at a glance:
PI6000 0.50m / 1.00m: passive, USB-C to USB-C, USB 3.2 (Gen 2x2) with 20Gbps or USB4 (Gen 2x2) with 20Gbps, DP Alt-Mode up to 8K 30Hz, E-Marker, USB Power Delivery up to 5A / 20V / 100W.
PI6000 1.50m / 2.00m: passive, USB-C to USB-C, USB 3.2 (Gen 1x2) with 10Gbps or USB4 (Gen 2x2) with 20Gbps, DP Alt-Mode up to 8K 30Hz, E-Marker, USB Power Delivery up to 5A / 20V / 100W
PI6000 3.00m / 5.00m: active with APO™, USB-C to USB-C, USB 3.2 (Gen 2x1), 10Gbps, DP Alt-Mode up to 8K 30Hz, E-Marker, USB Power Delivery up to 3A / 20V / 60W
PI6100 0.50m / 1.00m: passive, USB-C to USB-A, USB 3.2 (Gen 2x1), 10Gbps, 3A / 5V / 15W max. output power
PI6100 1.50m / 2.00m: passive, USB-C to USB-A, USB 3.2 (Gen 1x1), 5Gbps, 3A / 5V / 15W max. output power
PI6100 3.00m / 5.00m: active with APO™, USB-C to USB-A, USB 3.2 (Gen 2x1), 10Gbps, 3A / 5V / 15W max. output power
PureInstall - Benchmark for Professional Installations
Our high-end PureInstall Series guarantees certified PureLink quality at best value. Premium materials, perfectly fitting plugs and connectors, gold plated contacts, as well as the absence of anything unnecessary make PureLink products a good investment wherever they are used. In order to offer the greatest degree of flexibility the PureInstall series includes premium cables, multi-use adapters, as well as signal amplifiers, wall plates and other installation accessories. By choosing the best quality from one source, you can be sure that everything fits together and simply works.
